MokerLink 5 Port PoE+ Industrial Din Rail Switch, 4 Ports PoE+ IEEE802.3af/at, 1 Uplink, 10/100Mbps Fast Ethernet, DIN-Rail & Wall Mount Included

MokerLink 5 port 100Mbps industrial ethernet PoE switch, support 4*10/100M PoE ports and 1* 10/100M ethernet port, support DIN-Rail & Wall mounts installation. support power supply input (DC48-55V)working temperature -40~ +75It has passed the industrial environment certification. The reliable industrial design can ensure that your automation system runs without interruption and stability.
This series of industrial POE switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green low power industrial Ethernet switch.

Support 4*10/100M POE ports and 1*10/100M Ethernet port
Support IEEE 802.3, IEEE 802.3u, IEEE802.3x Standard
Ethernet port supports 10/100M self-adaptation
Compatible with both IEEE802.3at30Wand IEEE802.3af15.4w
Industrial grade protect design, -40 to 75°C working temperature
High strength iron shell, DIN35 Rail installation
Support redundant power supply, support anti reverse.
Support port Surge Protection: Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV
Compatible with IEEE802.3af/at protocol, Industrial PoE switch determines and delivers the exact power supply to your devices with up to 30W power output for per poe port.
5-Port unmanaged industrial poe switch adopt with high strength IP30 protective housing, industrial EMC design to increase the reliability of communication network.

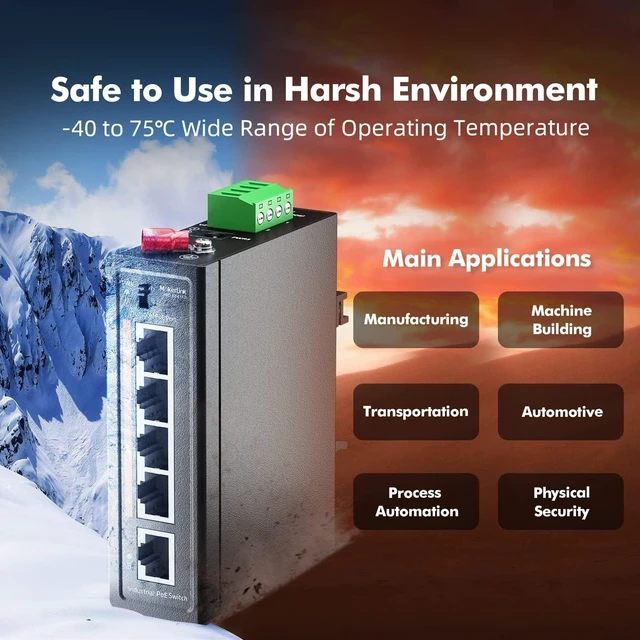

MokerLink industrial poe switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to +75ºC.
The industrial poe switch's 4KV surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
This industrial poe switch support triple redundant power supply(1*DC input +2*2 pin terminal input). Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails.
Ultra compact industrial poe switche can be mounted on a 35mm din rail and wall(wall mount kit included). Save time and space.
MokerLink industrial poe switches are housed in a compact sturdy metal case. the size is 100*76.5*30mm. you can mount it on the wall or cabinet.
The industrial poe switch features with aluminum case and fanless design that ensures noiseless operation and greater reliability over time.
The industrial poe switch adopt with high quality of electronic components. Make sure it can be widely used in various industrial scenarios.
Product Name 5-port 10/100Mbps industrial PoE switch Product Model IND-F041FP Ethernet 4* 10/100Mbps PoE+ ports + 1* 10/100Mbps RJ45 port Bandwidth 1.0Gbps Packet Forwarding 0.744 Mpps Packet Cache 448K PoE Protocol IEEE802.3af 15.4W IEEE802.3at 30W Network Protocol IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) Network Medium 10Base-T : Cat 3, 4, 5 or above UTP/STP(100m) 100Base-TX : Cat 5 or above UTP/STP(100m) Working Environmen Working Temperature: -40~75°C Storage Temperature: -40~85°C Working Humidity 10%~90%non-condensing Storage Temperature5%~90%non-condensing Working Height: Maximum10,000 feet Storage Height: Maximum 10,000 feet LED Indicator PWR (Power Indicate)1-5 Green LightLink & Data PWR: On: Power on Off: Power off 1-5 Green Light (Link & Data): On: Link Connected Flashing: Data Transmit Off: Link Disconnect Product Dimension 100*76.5*30mm Product Weight 0.29 KG Power Voltage Input Voltage : DC 48-55 V Type of input: 4 PIN Industrial Terminal (block V1+V1- V2+ V2-); DC-IN (2.1mm) Packaging List Industrial PoE Switch: 1 PC, User Manual: 1PC, Pull-arm : 1 PC
