$409.99
Meet Your Seller

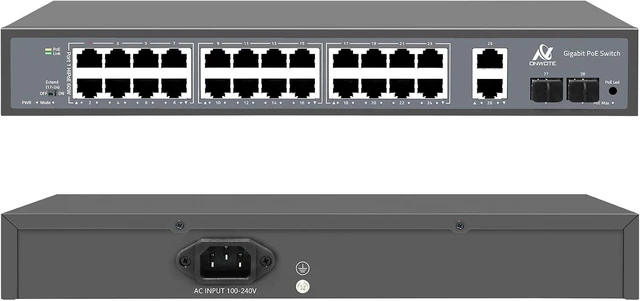

ONWOTE 24 Ports Gigabit PoE Switch 300W, 10/100/1000Mbps Self-Adaptive
- 24x 1Gbps PoE Ports, 2x RJ45 Ports, 2x SFP Ports, Unmanaged Network Ethernet Splitter for NVR PoE Security Camera System

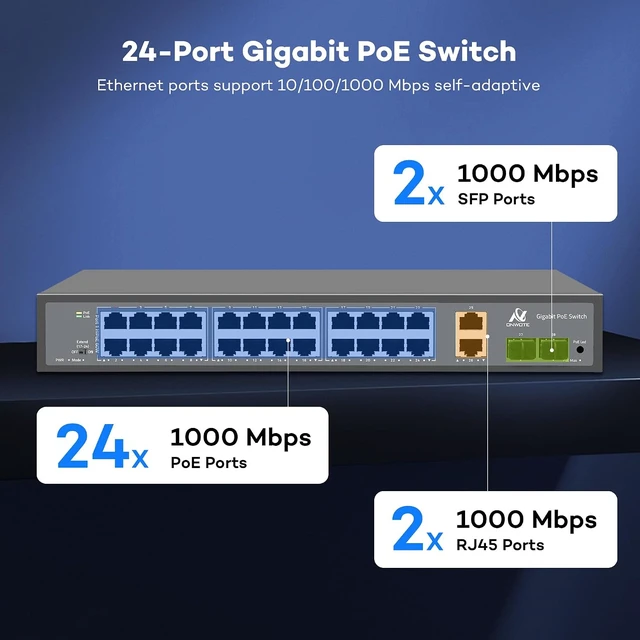

- 24*1Gbps PoE ports+2*1Gbps RJ45 ports+2*1Gbps SFP ports
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards
- Ethernet Ports support 10/100/1000Mbps self-adaptive

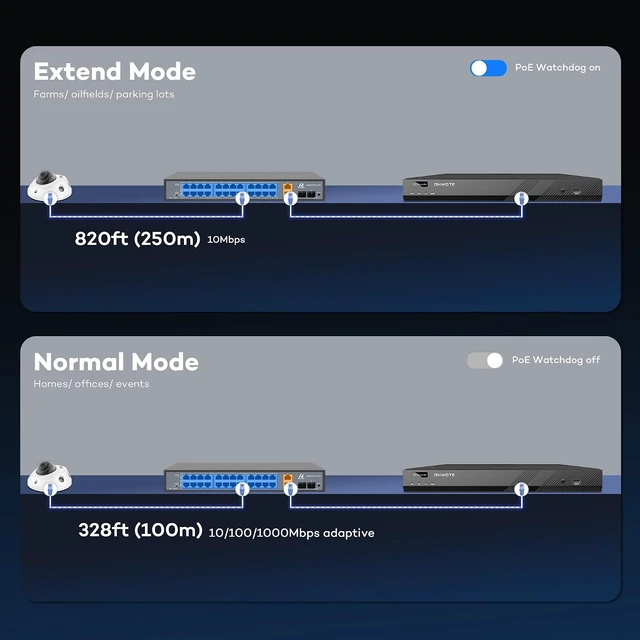

- When the PoE port is in Extend mode, ports 17-24 force 10Mbps to automatically activate the PoE watchdog mode
- PoE priority is enabled by default, priority order 1-24
- Flow control method: IEEE 802.3x standard is used for full duplex, and Back pressure standard is used for half duplex
- The panel indicator LEDs will monitor the working status and assist in fault analysis

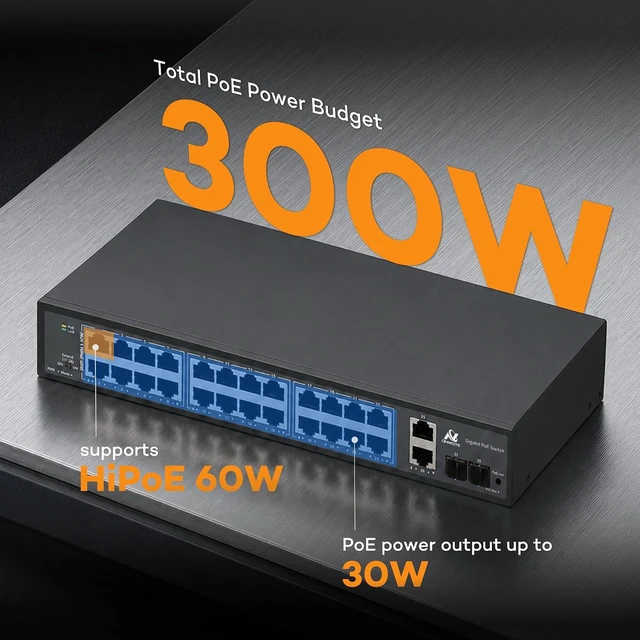

- Port 1 supports HiPoE 60W
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
1 2 3 4 5 6 2 Modes of Operation
1Extend Mode2Normal Mode Port Standard IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) Switching Bandwidth 56Gbps Packet Forwarding Rate 41.644Mpps Packet Buffer 3Mbit MAC Address Table 2K Transmission Method Store and Forward PoE Standard IEEE802.3af (15.4W) IEEE802.3at (30W) PoE Port Output Voltage DC 44-57V Power Supply AC 100-240V 50/60Hz DC 52V 5.76A PoE Ports Port 1 supports HiPoE 60W, Ports 2-24 PoE power output <30W Surge Protection Port Surge: Common mode 4KV, Differential mode 2KV Electrostatic ESD: Air 8KV, Contact 6KV(Class C) Ports 1-28 Green LED On: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting PWR Green LED On: Powered on Off: Powered off Operating Conditions Temperature:0~40°C; Humidity:10%~90%, non condensing Storage Conditions Temperature:-40~70°C; Humidity:5%~95%, non condensing 5MP 2 Way Audio Camera
1Extend Mode2Normal Mode Port Standard IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) Switching Bandwidth 56Gbps Packet Forwarding Rate 41.644Mpps Packet Buffer 3Mbit MAC Address Table 2K Transmission Method Store and Forward PoE Standard IEEE802.3af (15.4W) IEEE802.3at (30W) PoE Port Output Voltage DC 44-57V Power Supply AC 100-240V 50/60Hz DC 52V 5.76A PoE Ports Port 1 supports HiPoE 60W, Ports 2-24 PoE power output <30W Surge Protection Port Surge: Common mode 4KV, Differential mode 2KV Electrostatic ESD: Air 8KV, Contact 6KV(Class C) Ports 1-28 Green LED On: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting PWR Green LED On: Powered on Off: Powered off Operating Conditions Temperature:0~40°C; Humidity:10%~90%, non condensing Storage Conditions Temperature:-40~70°C; Humidity:5%~95%, non condensing 5MP 2 Way Audio Camera
