$395.99
Meet Your Seller

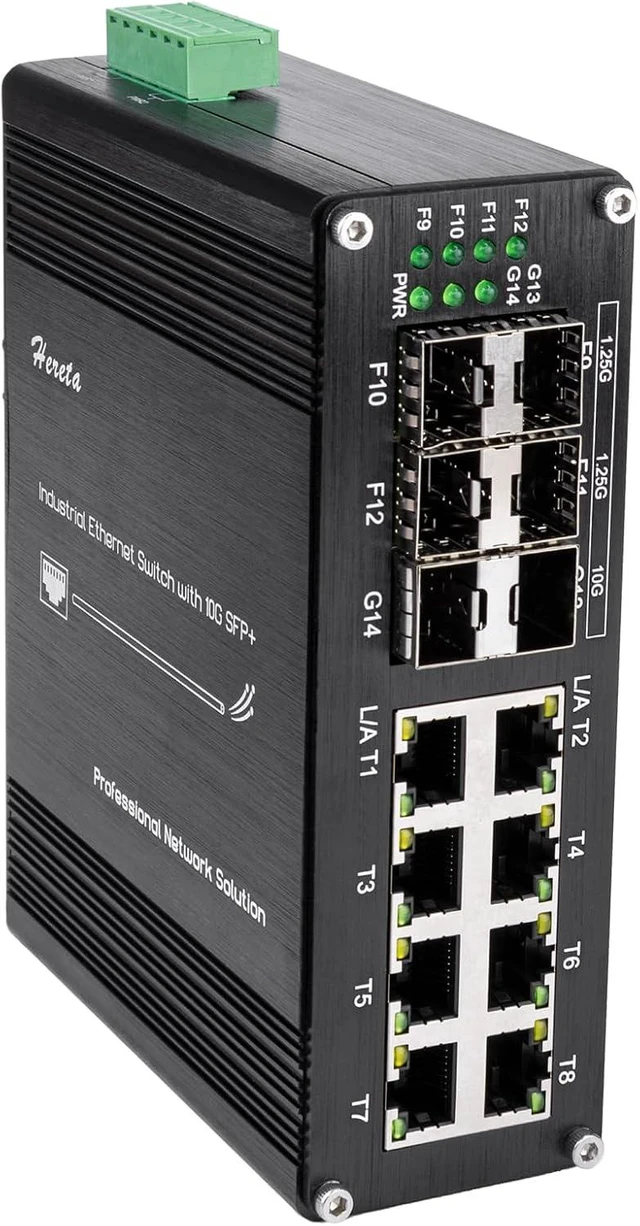

Industrial 14-Port Gigabit Ethernet Switch, Hardened Unmanaged Network Switch Network Splitter with 8 x Gigabit RJ45 Ports, 4 x 1.25G SFP Ports, 2 x 10G SFP+ Ports, Plug & Play, Aluminum Case
- Interface: 10G 14 ports Fiber Optic Ethernet Switch is equipped with 8 x 10/100/1000BASE-T ports & 4 x 1.25G SFP Slot & 2 x 10G SFP+ Ports. RJ45 ports supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDI. 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber, 10G Base-SR/LR ports supports SFP+ module.
- Wide Power Input: The Network Switch supports 12~48V DC power input, and dual redundancy (6-pin Terminal Block). Power Consumption is 8W Max.
- DIN-Rail / Wall Mount Installation: The Gigabit Switch comes with 35mm din-rail mounting bracket, supports Din-Rail & Wall Mount Installation. Wall mount accessory is not included.
- Complies with Industry Standards: Our Network Fiber Optical Switch Complies with IEEE 802.3az Energy Efficient Ethernet (EEE). At the same time, it also supports 802.3x Flow control, 9K Bytes Jumbo FrameRedundant Power Inputs
- Industrial Grade Quality : The Hardened Industrial Switch is made of Aluminum Case, Dustproof IP40, With reliable and simple
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
LNK-IMC2X4S8G Series is 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Industrial Switch has 8 RJ45 ports and 6 SFP ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, Auto-negotiation and Auto MDI/MDI-X connection.
1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2x10G Base-SR/LR ports supports SFP+ module.

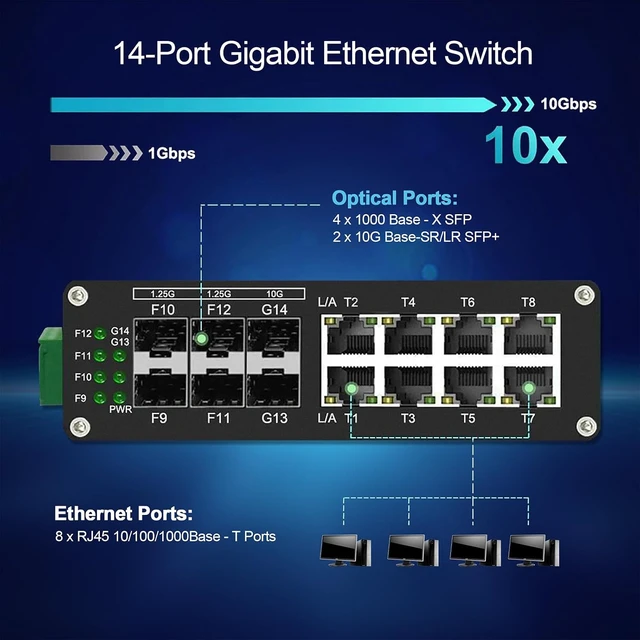

8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10G Base-SR/LR SFP+

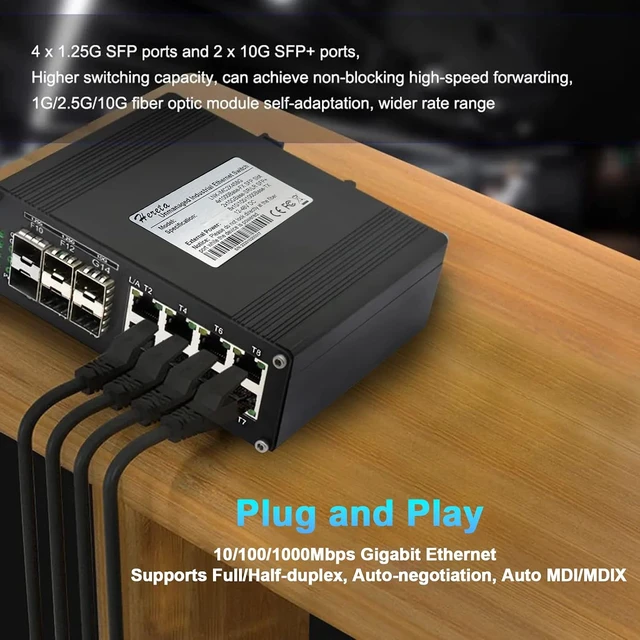

10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Supports 802.3x Flow control
9K Bytes Jumbo Frame
Redundant Power Inputs
IEEE 802.3az Energy Efficient Ethernet (EEE)
IP40 Aluminum Case
Supports DIN-Rail installation
-40°C to 80°C (-40°F to 176°F) operating temperature
The industrial din rail network switch 14-port with 12-48V DC voltage input.
6KV lightning protection make the Ethernet Optic Switch can adapt to various harsh environments.
Fanless design ensures quiet operation.
Support 2 channel redundant power input, one set of power supplies fails, the other set can still work, high reliability ensures continuous operation.
LED Indicator:
PWR: On: Power Supply Normal OFF: Power Off
L/A(T1~T8): On: TP cable Connected OFF: TP cable Not Connected Blink: Data Transmission Properly
Fiber (F9~F12) (G13~G14) : On: Fiber Connected OFF: Fiber Not Connected

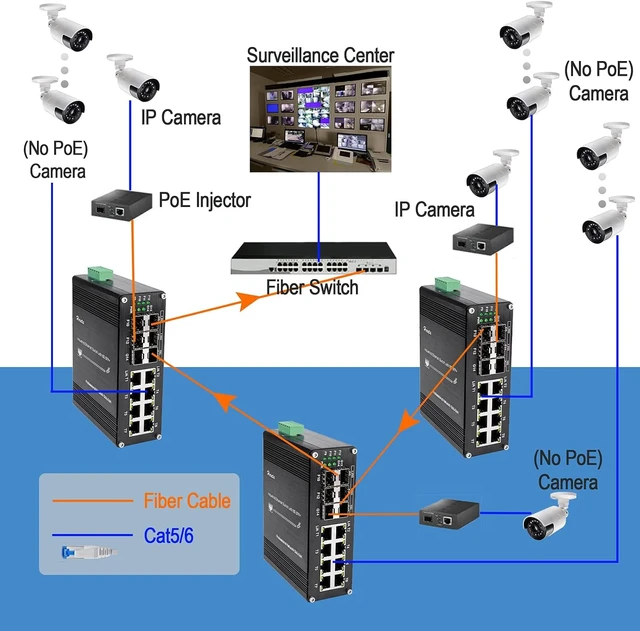

With its reliable design and ease of use, the industrial Din-Rail Switch 14 Ports is a great choice for integrating networks consisting of network devices such as router, gaming console, printer, laptop, PC, NAS, Internet and so on.
14 Ports PoE Switch
1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2x10G Base-SR/LR ports supports SFP+ module.
8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10G Base-SR/LR SFP+
10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Supports 802.3x Flow control
9K Bytes Jumbo Frame
Redundant Power Inputs
IEEE 802.3az Energy Efficient Ethernet (EEE)
IP40 Aluminum Case
Supports DIN-Rail installation
-40°C to 80°C (-40°F to 176°F) operating temperature
The industrial din rail network switch 14-port with 12-48V DC voltage input.
6KV lightning protection make the Ethernet Optic Switch can adapt to various harsh environments.
Fanless design ensures quiet operation.
Support 2 channel redundant power input, one set of power supplies fails, the other set can still work, high reliability ensures continuous operation.
LED Indicator:
PWR: On: Power Supply Normal OFF: Power Off
L/A(T1~T8): On: TP cable Connected OFF: TP cable Not Connected Blink: Data Transmission Properly
Fiber (F9~F12) (G13~G14) : On: Fiber Connected OFF: Fiber Not Connected
With its reliable design and ease of use, the industrial Din-Rail Switch 14 Ports is a great choice for integrating networks consisting of network devices such as router, gaming console, printer, laptop, PC, NAS, Internet and so on.
14 Ports PoE Switch
