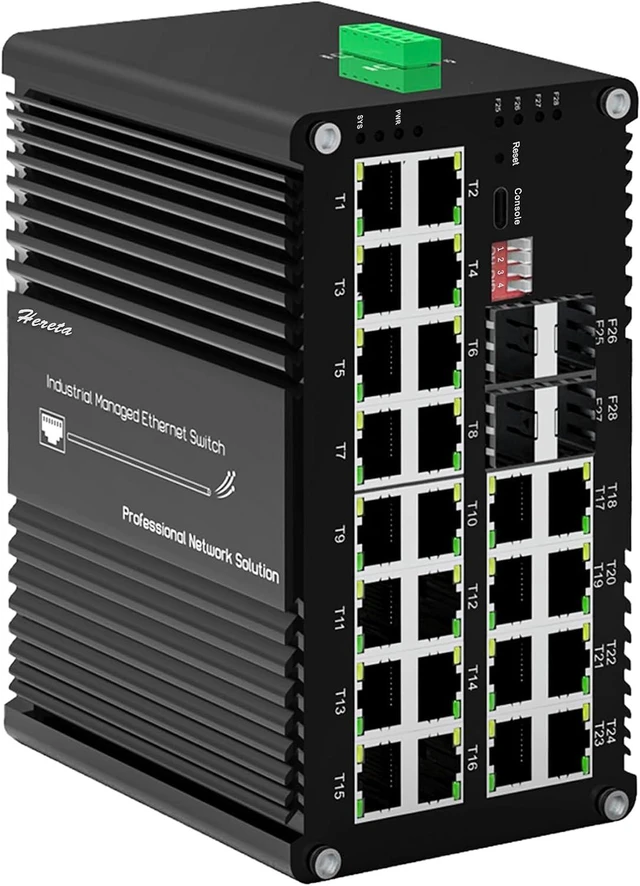

Industrial L2+ 24 Port Gigabit PoE Ethernet Switch,Hardened Managed Optical Network Switch with 4-Port 1000BaseX SFP, 720W PoE Budget,IEEE 802.3af/at, DINRail, 40~80 Wide Temp, Surge Protection

LNK-DMIC2424MP series is the L2+ managed 24-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP + 1-USB-C for Management hardened Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Support 24x10/100/1000Base-T + 4x1000Base-X SFP
10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
IEEE802.3af/at compliant

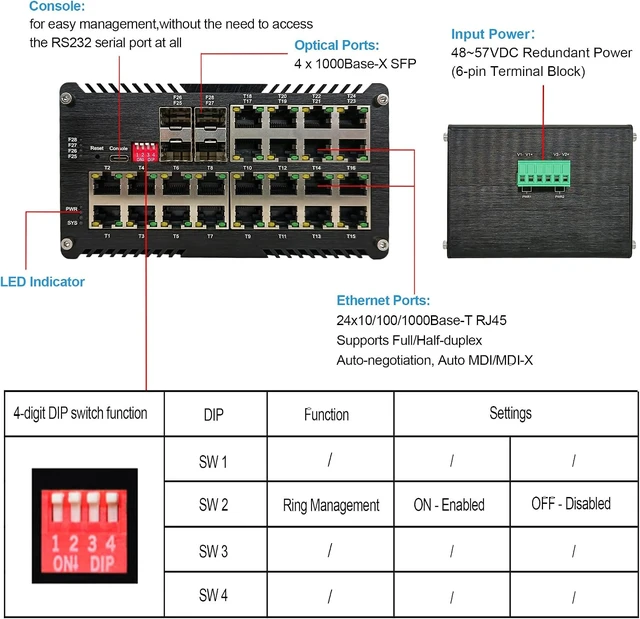

DIP Switch supports one-key VLAN, one-key Ring Management
Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
IEEE 802.3az Energy Efficient Ethernet (EEE)
IP40 Aluminum Case
Supports DIN-Rail installation
-40°C to 80°C (-40°F to 176°F) operating temperature
Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)

Forward & Filtering Rate: 14,880pps (10Mbps) / 148,800pps (100Mbps) / 1,488,000pps (1000Mbps)
Packet Buffer Memory: 12M bits
Processing Type: Store-and-Forward
Backplane bandwidth: 110Gbps
Max Packet Length: 10K Bytes Jumbo Frame
Address Table Size: 8K MAC Addresses

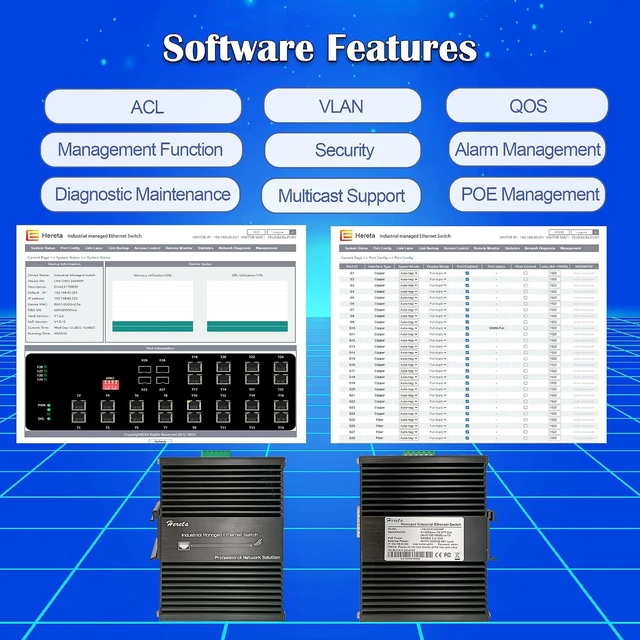

Support Redundancy Protocols,Multicast,VLAN,Time Management,QOS,ACL,PoE Management,Diagnostic Maintenance,Management Function

Aluminum Case
Dustproof IP40
With reliable and simple operation against vibration and shock

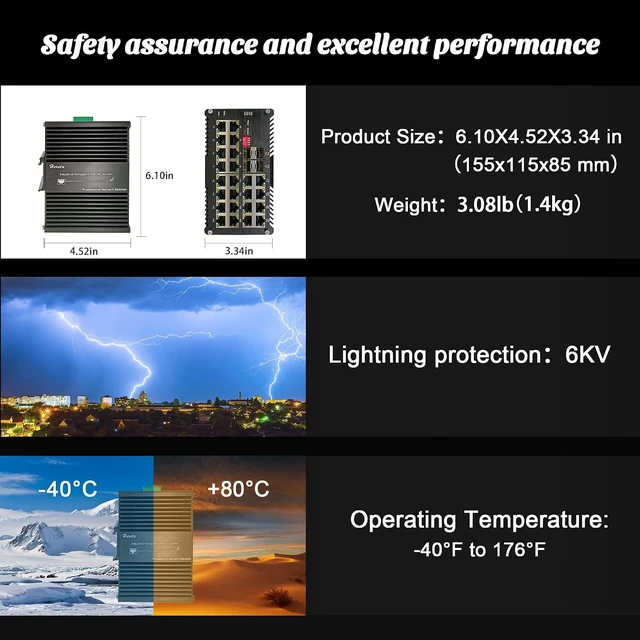

Wide Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Relative Humidity: 5% to 95% non-condensing
6KV Lightning Protection

Connect the RJ45 port of the Switch to Network the device with a network cable.
Plug in the SFP module and insert the LC connector of Patch cord in to the LC port of SFP transceiver.
After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.
After all cables are correctly connected, check the indicators status and do trouble shooting accordingly.

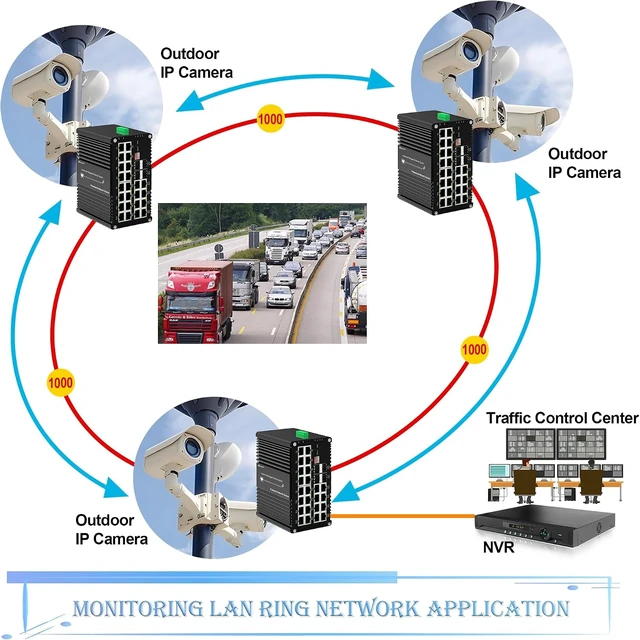

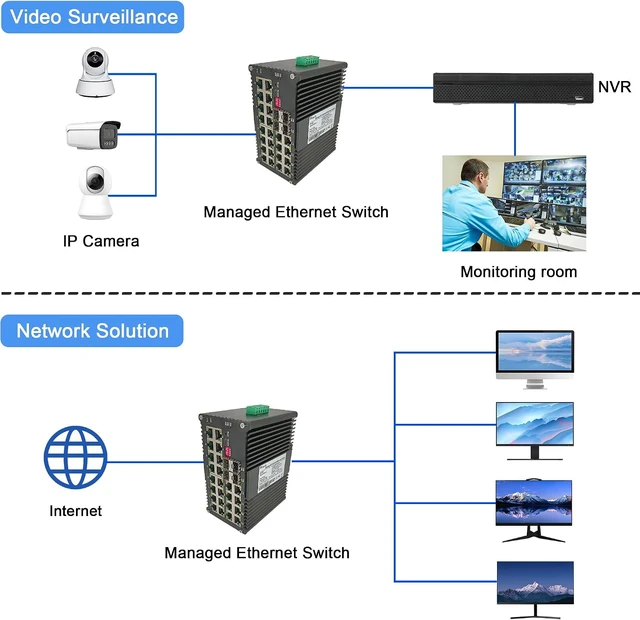

Our switches are highly versatile and can be used in corporate offices and smart office environments, industrial facilities, security surveillance, wireless network coverage, smart home and IoT devices, and smart city development. They are indispensable components of modern network infrastructure.
