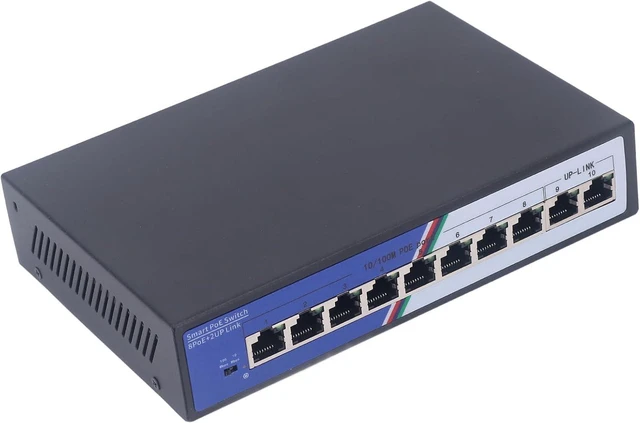

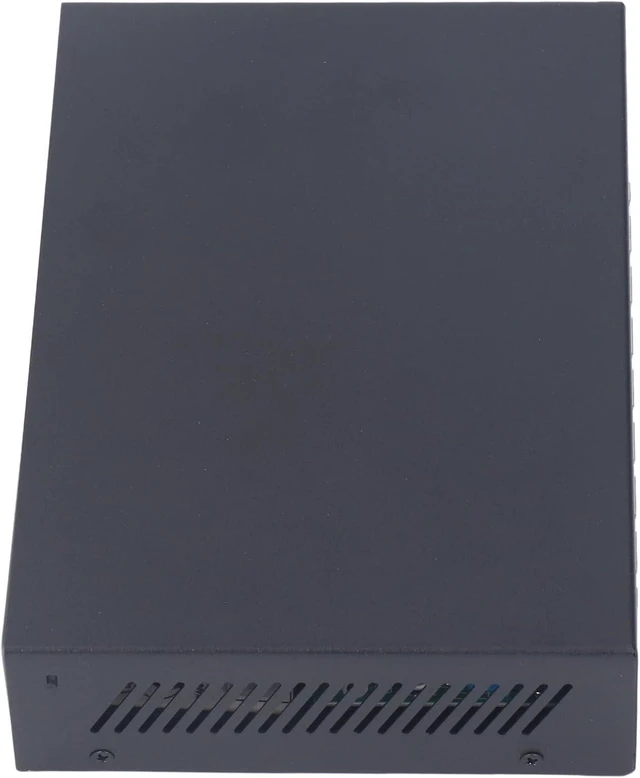

10 Port Gigabit POE Switch 2Gbps Ethernet Splitter Plug and Play Unmanaged Network Switch
- [10 Port Ethernet Switch] This unmanaged Ethernet switch offers 8 x 10 100 Base TX ports (Data Power) and 2 x 10 100 Base T ports (Data), providing high speed connectivity for multiple devices.
- [Easy Plug and Play] With a simple plug and play design, this 2Gbps Ethernet switch is easy to use. Simply connect the power cable and Ethernet cables to your devices, and you can start using it without any configuration required.
- [Safety Protection] This switch offers 4KV high level protection. The PoE ports are equipped with short circuit and overload protection, while the power supply features temperature and overvoltage protection.
- [Two Operation Modes] Choose between normal mode, where all ports can communicate with each other, making it suitable as a regular unmanaged PoE switch, or extended mode, where the switch can transmit data up to a distance of 820 feet (250 meters).
- [Versatile Usage] Fully compatible with various devices such as computers, printers, network cameras, smart TV
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Item Type: 10 Port Gigabit Ethernet Switch
Material: ABS
Model: ZX G0802FNC
Chip Solution: RTL8309+RTL8305
Standards Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network Media:
10BASE T: Unshielded Cat3, Cat4, Cat5 twisted pair (maximum 100m)
100BASE TX 100BASE T: Unshielded Cat5, Cat5e, or higher twisted pair (maximum 100m)
Fixed Ports:
8 x 10 100 Base TX Ethernet Ports (Data Power)
2 x 10 100 Base T Ethernet Ports (Data)
Forwarding Mode: Store and Forward
Media Access Control Address Capacity: 1K
Switching Capacity: 2Gbps
Packet Forwarding Rate: 1.448Mpps
Port Protection: 4KV
Indicator Lights:
Each Unit:
Power System (Power: Green light) is connected to the load, the indicator light status is always on
Each Port:
Link Activity (Link Act: Green light) is connected to the load, the indicator light status is flashing
POE Power Supply: 1-8 ports compatible with 802.3af at PoE (1/2)+, (3/6)-
Port Features:
OFF: Normal mode. All ports can communicate with each other and can be used as ordinary unmanaged PoE switches
ON: Extended mode. The longest transmission distance of the switch is 250 meters
Operating Temperature: -10 to 70 (32 to 127)
Storage Temperature: -40 to 85 (-97 to 142)
Operating Humidity: 10% to 90% non condensing
Storage Humidity: 5% to 95% non condensing
Package List
1 x 10 Port Gigabit Ethernet Switch
1 x Power Adapter
1 x User Manual
