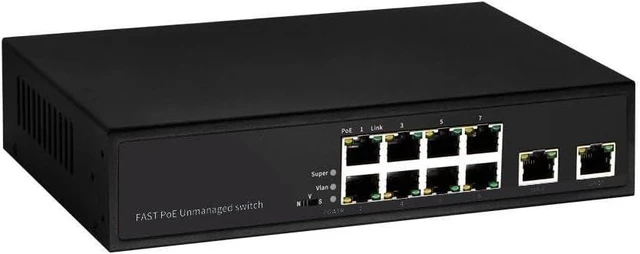

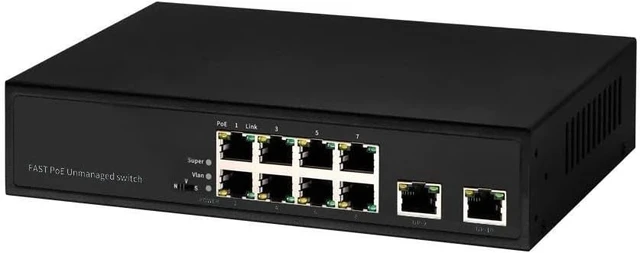

8 Ports 100M PoE Switch with 2 gigabit uplink(1swt with 4 Extender)

Hubs
Model
TS1208F-2G-LD
Product
Gigabit uplink 8-port 100m LD long-distance Poe switch
Fixed Port
8*10/100Base-TX LD PoE port(Data/Power)
2*10/100/1000Base-TX uplink RJ45 port(Data)
PoE Ports
1 port supports IEEE802.3af/at/poe++/bt max 90w
2-8Ports support IEEE802.3af/at

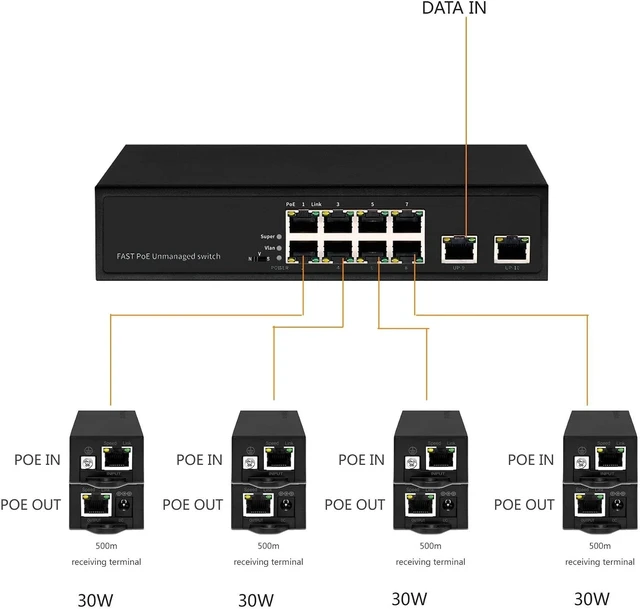

Poe out distance
1 Port:
In 100M mode, the max distance is 100m and the maxm output power is 90W
2-8 ports:
In 100M mode, the max distance is 150m and the max output power is 30W
In 10M mode, the max distance is 250m and the max output power is 20W
Under LD 100M mode, the max distance is 500m and the max output power is 15W
Under LD 10M mode, the max distance is 800m and the max output power is 6W
PoE out Pin
1245+ 3678-
Function
N:(Standard normal)
V:(Port isolation)
LD(ultra long distance)
IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3af/at/POE++BT
Port Specification
10/100/1000BaseT(X)Auto
Transmission Mode
Store and Forward(full wirespeed)
Bandwidth
16Gbps
Packet Forwarding
6.33Mpps
MAC Address
8K
Buffer
4M
Transmission Distance
10BASE-T:Cat3,4,5 UTP(250 meter)
100BASE-TX:Cat5 or later UTP(150 meter)
1000BASE-TX:Cat6 or later UTP(150 meter)
LD 100BASE-TX:Cat6 or later UTP(500 meter)
LD 10BASE-TX:Cat6 or later UTP(800 meter)
Power Pin
Default 1/2(+),3/6(-);Optional order 4/5(+),7/8(-)
Total power/Input voltage
MAX150W(AC100-240V50/60HZ)
Power Input
Built-in power AC:100~240V 50-60Hz 1A
Watt
Standby Power Consumption:5W
LED Indicator
POWER:Power LED(over-power LED)
POWER FLASH: LED(Poe Dog running)
Uplink:(Link LED=10/100M Link,1000M=Gigabit Link)
Port:(Orange=PoE LED+Green=Link LED)
Super:(Super mode LED)
Vlan:(Port isolation LED)
Operating Temperature/Humidity
-10~+65°C;5%~90% RH Non coagulation
Storage Temperature/Humidity
-40~+75°C;5%~95% RH Non coagulation
Product size/Packing size(L*W*H)
210mm*140mm*45mm
270mm*220mm*68mm
N.W/G.W(kg)
1.1kg/1.4kg
==========
High-concerned chemical :
Switch Type : Ethernet
Number of Interfaces : 10
Switch Capacity : 16G
Model Number : TS1208F-2G-LD
