9/6 Port 2.5G POE Switch Gigabit Switch Ethernet Network Switch(Non POE Switch 9Port)

Hubs
Vlan: switch instructions
OFF: When the control key is adjusted in this position, it means that POE switches 1-8 ports can communicate with each other.
ON: When the control key is adjusted in this position, it means that POE switches 1-8 ports are isolated from each other and can only communicate with the uplink SFP optical ports respectively.
Product Model : POE Switch 9 Port
Forwarding Mode : Store and Forward
Transmission distance : Electrical port: 0-100 m; Optical port: with optical module
Signal feet : 1 2 3 6 4 5 7 8
Standard power supply : DC 52V120W
Power supply pin : 1.2 is positive 3.6 is negative
Protocol : IEEE 802.3AT IEEE802.3AF
Voltage specification : DC48-55V
Network Media : Use Category 6 or Super Category 6 unshielded twisted-pair cable
Backplane bandwidth : 60Gbps full duplex
Dimensions : (L*W*H)210mm*110mm*33mm
Power supply ports : 1-8 ports are POE ports 1-8 ports support VLAN mode.
Product Model : POE Switch 6 Port
Forwarding Mode : Memory Forwarding
Transmission distance : Electrical port: 0-100 metres; Optical port: with optical module
Signal leg position : 1 2 3 6 4 5 7 8
Standard power supply : DC 52V 65W
Power supply pin : 1.2 is positive 3.6 is negative
Protocol : IEEE 802.3AT IEEE802.3AF
Voltage Specification : DC48-55V
Network Media : Category 6 or Super Category 6 Unshielded Twisted Pair Cable
Backplane bandwidth : 60Gbps full duplex
Dimensions :(L*W*H)160mm*110mm*33mm
Power supply ports :1-4 ports are POE ports 1 to 4 ports support VLAN mode.

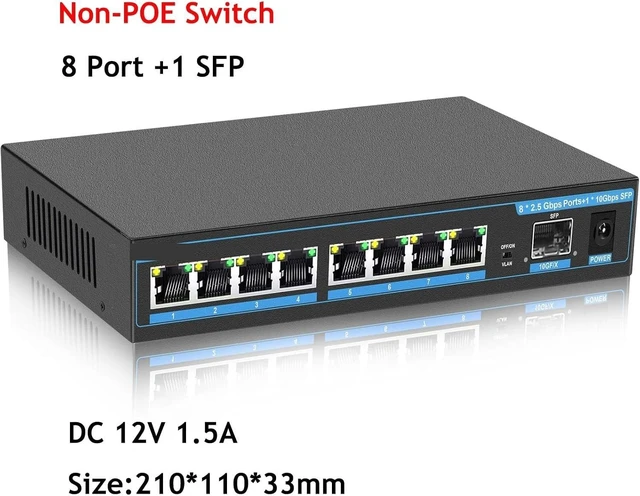

Product Model : Non POE Switch 9Port
Forwarding mode: Storage forwarding
Transmission Distance:Electrical port: 0-100m; Optical port: with optical module
Signal footage: 1 2 3 4 5 6 7 8 Wavelength with Optical Module
Protocol: IEEE802.3 IEEE802.3Z IEEE802.3X, etc.
Optical Port Parameters: 10 Gigabit SFP Optical Port*1
Voltage Specification:DC12-55V
Standard Power Supply :DC 12V 1A
Backplane bandwidth: 60.0Gbps full-duplex
Network medium: Use Category 6 or above unshielded twisted pair cable
Ports:1-8 ports support one-key VLAN mode
External Dimensions: (L*W*H) 210mm×110mm×33mm

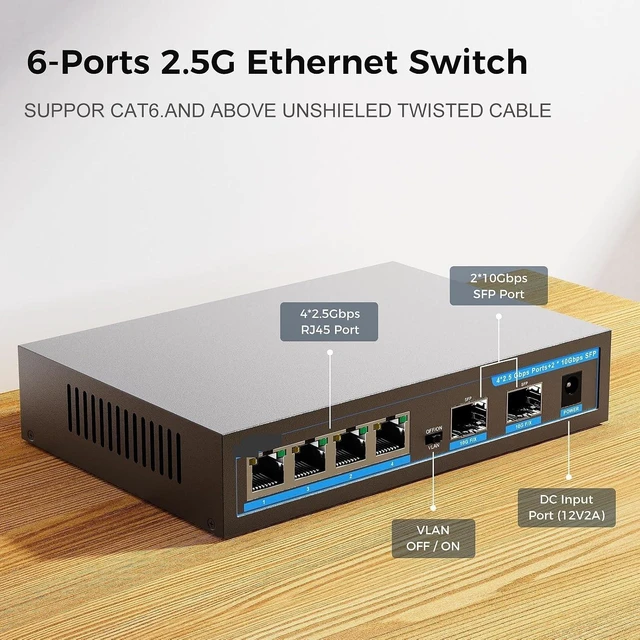

Product Model:Non POE Switch 6 Port
Forwarding Mode: Store-and-Forward
Transmission Distance: Electrical port: 0-100 meters; Optical port: with optical module
Signal footage: 1 2 3 4 5 6 7 8 Wavelength with Optical Module
ProtocolIEEE802.3 IEEE802.3Z IEEE802.3X, etc.
Optical Port Parameters10Gb SFP Optical Port*2
Voltage specification C12-55V
Standard power supply DC 12V 1A
Backplane bandwidth 60.0Gbps full-duplex N
Network media: Use Category VI and above unshielded twisted pair cable
Port 1-4 ports support one-key VLAN mode
Overall dimensions (L*W*H) 160mm×110mm×33mm
==========
High-concerned chemical :
Plug Type : EU Plug
Switch Type : Gigabit Switch
VLAN : yes
Package : Yes
Transmission Rate : 10/100/1000Mbps
Communication Mode : Full-Duplex & Half-Duplex
Function : POE,VLAN Support
Type 1 : Standard POE Switch
Type 2 : 2.5G Switch
Type 3 : 25 gbe network switch
Network Switch : 10G SFP Switch
Protocol : IEEE802.3AF/AT
Application 1 : for ip camera switch
Application 2 : for Security Monitoring
Application 3 : for wireless ap router
