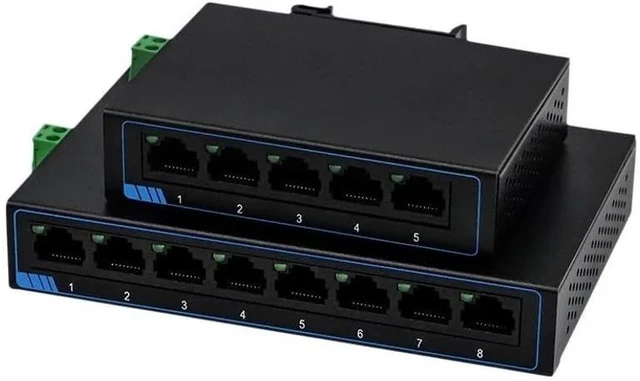

8 Ports 1000Mbps Gigabit Ethernet Unmanaged Switch
- Hubs
- 8 Ports 1000Mbps Gigabit Ethernet Unmanaged Switch
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Hubs
Model
USR-ESF005
USR-ESF008
USR-ESG005
USR-ESG008
Data Transfer Rate
10/100M
Auto Negotiation and Auto MDI/MDIX RJ45
10/100/1000M
Auto Negotiation and Auto MDI/MDIX RJ45
Packet Forwarding Rate
10Mbps:14880pps
100Mbps:148800pps
10Mbps:14880pps
100Mbps:148800pps
1000Mbps:1488000pps
MAC Address Table
2K
Network Media (Cable)
10Base-T:UTP Category 3, 5 cable
100Base-TX:UTP Category 5 cable
Standard
IEEE 802.3, IEEE 802.3u,
IEEE 802.3x, IEEE802.3az
IEEE 802.3, IEEE 802.3u,
IEEE 802.3x, IEEE802.3az, IEEE802.3ab
LED
Port: Link/Act Indicator
100M Link/ACT:Green
POWER:Red
Port: Link/Act Indicator
1000M Link/ACT:Green
POWER:Red
Mounting
35mm DIN Rail Mounting
Flat mounting
Dimensions
100*77*31 mm
140*90*31 mm
100*77*31 mm
140*90*31 mm
Operating temperature: -5~45
Storage temperature: -10~70
Operating humidity: 10%~90% RH non-condensing
Storage humidity: 5%~90% RH non-condensing
Power & Consumption
Input DC 12V 05AConsumption3W
<;4W
==========
Model
USR-ESF005
USR-ESF008
USR-ESG005
USR-ESG008
Data Transfer Rate
10/100M
Auto Negotiation and Auto MDI/MDIX RJ45
10/100/1000M
Auto Negotiation and Auto MDI/MDIX RJ45
Packet Forwarding Rate
10Mbps:14880pps
100Mbps:148800pps
10Mbps:14880pps
100Mbps:148800pps
1000Mbps:1488000pps
MAC Address Table
2K
Network Media (Cable)
10Base-T:UTP Category 3, 5 cable
100Base-TX:UTP Category 5 cable
Standard
IEEE 802.3, IEEE 802.3u,
IEEE 802.3x, IEEE802.3az
IEEE 802.3, IEEE 802.3u,
IEEE 802.3x, IEEE802.3az, IEEE802.3ab
LED
Port: Link/Act Indicator
100M Link/ACT:Green
POWER:Red
Port: Link/Act Indicator
1000M Link/ACT:Green
POWER:Red
Mounting
35mm DIN Rail Mounting
Flat mounting
Dimensions
100*77*31 mm
140*90*31 mm
100*77*31 mm
140*90*31 mm
Operating temperature: -5~45
Storage temperature: -10~70
Operating humidity: 10%~90% RH non-condensing
Storage humidity: 5%~90% RH non-condensing
Power & Consumption
Input DC 12V 05AConsumption3W
<;4W
==========
