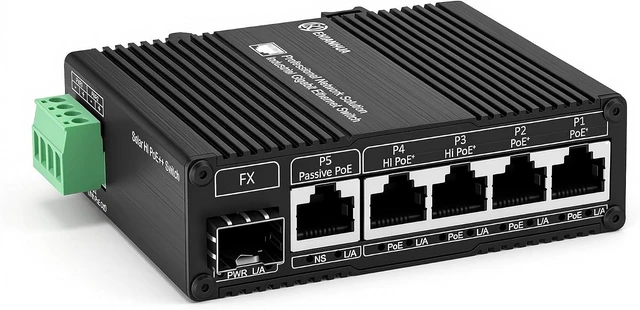

Industrial 5-Port Gigabit PoE Switch with 1 Gigabit SFP Uplink
- 2× 802.3af/at PoE+, 2× 50W Hi-PoE+, 1× 24V Passive PoE, Unmanaged, DIN Rail/Wall Mount for PTZ Cameras & Wireless Bridges

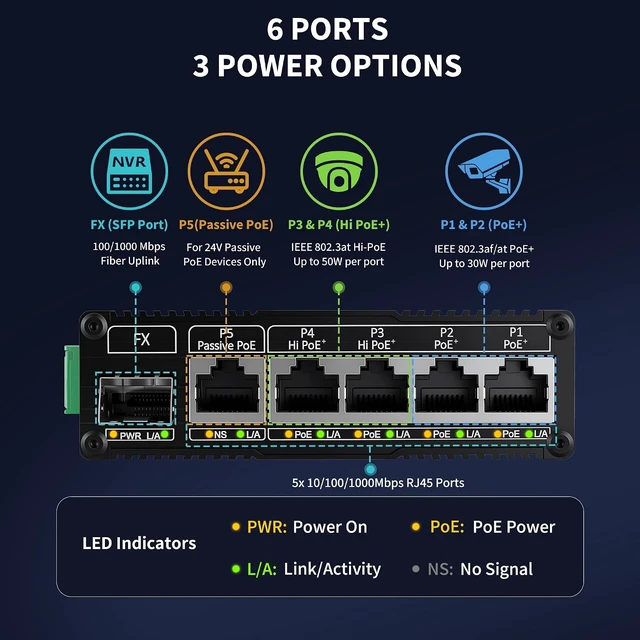

- ONE SWITCH FOR DIFFERENT PoE NEEDS 2× 802.3af/at PoE+ up to 30W, 2× 50W Hi-PoE+, and 1× 24V Passive PoE. Unmanaged and plug-and-play for IP cameras, PTZ cameras, VoIP phones, and wireless bridges.

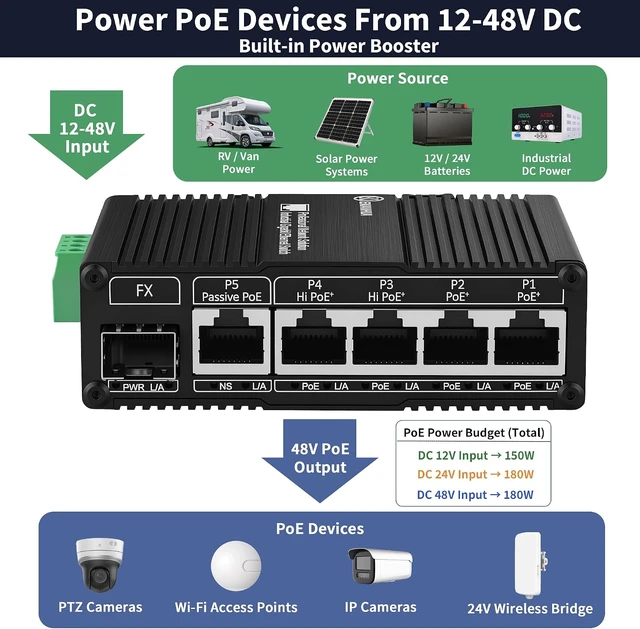

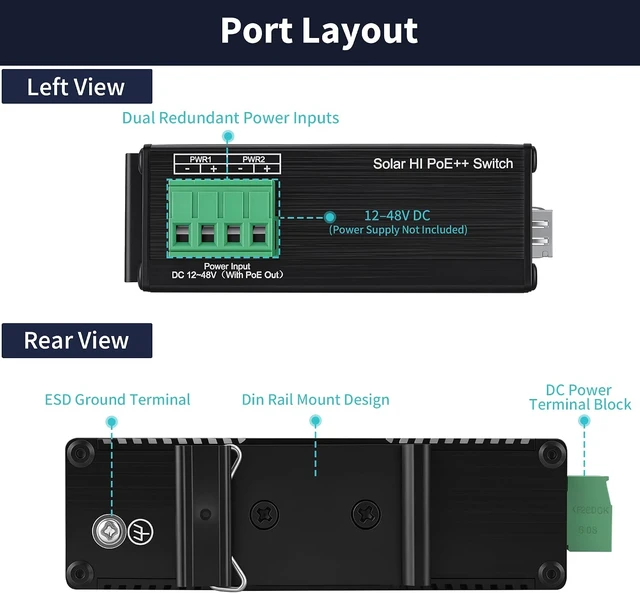

- 1248V DC REDUNDANT POWER INPUT Dual DC power inputs provide redundant power connectivity. Built-in power booster supports PoE from solar power, 12V/24V battery systems, RVs, vans, and industrial DC sources.
- GIGABIT + FIBER UPLINK 5× 10/100/1000M RJ45 ports plus 1× 100/1000M SFP port for Gigabit copper and fiber network connectivity.

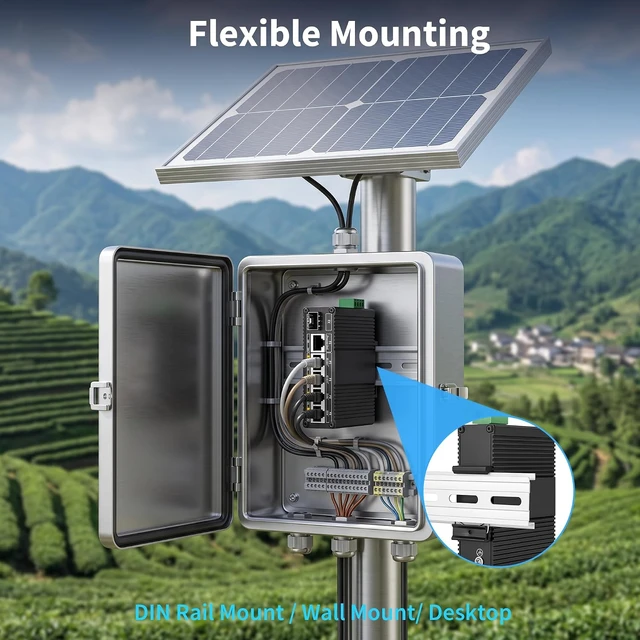

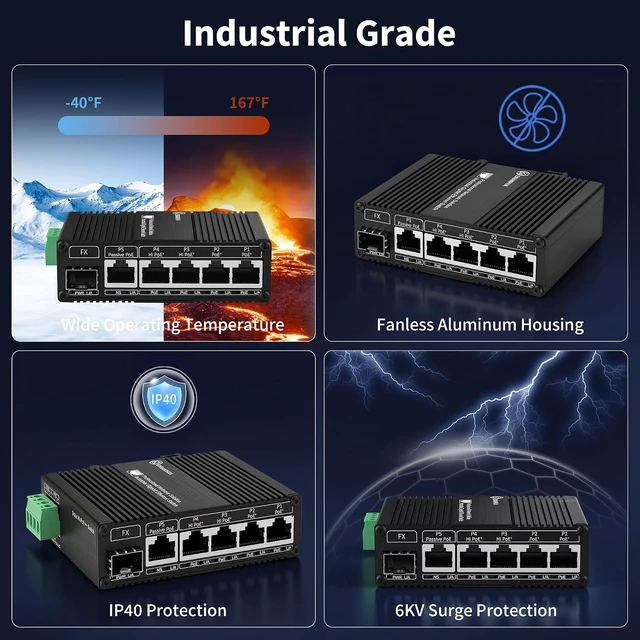

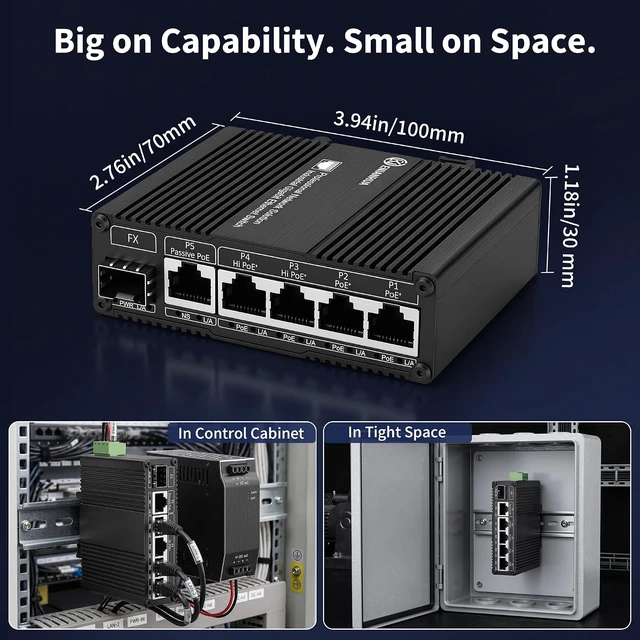

- INDUSTRIAL & COMPACT Fanless aluminum housing, IP40, -40°F to 167°F, DIN Rail/Wall Mount, and a compact 3.94 × 2.76 × 1.18 in footprint for demanding, space-constrained installations.
- UP TO 180W TOTAL PoE BUDGET Up to 150W at 12V DC and 180W at 24V/48V DC. P5 supports compatible 24V Passive PoE devices only.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Ethernet Ports 5 × 10/100/1000Mbps RJ45 Ports Fiber Port 1 × 100/1000Mbps SFP Slot PoE+ Output Ports 12, up to 30W per port Hi-PoE+ Output Ports 34, up to 50W per port Passive PoE Output Port 5, 24V DC, 12W Maximum PoE Power Budget Up to 180W at 24V/48V DC; up to 150W at 12V DC; up to 90W at 9V DC Power Input 1248V DC, terminal block Power Redundancy Dual DC power inputs for redundant power connection Power Booster Built-in Backplane Bandwidth 14Gbps MAC Address Table 2K Packet Length 16K Bytes Operating Temperature -40°F to 167°F (-40°C to 75°C) Housing IP40 Fanless Aluminum Housing Dimensions 3.94 × 2.76 × 1.18 in (100 × 70 × 30mm) Weight 0.55lb (0.25kg) INDUSTRIAL NETWORKING. FLEXIBLE PoE. ONE SWITCH. THREE PoE OUTPUT TYPES. DUAL REDUNDANT POWER INPUT BUILT FOR INDUSTRIAL NETWORKS IP40 Fanless Aluminum Housing -40 to 167 DIN-Rail & Wall Mount Compact Design Technical Specifications
