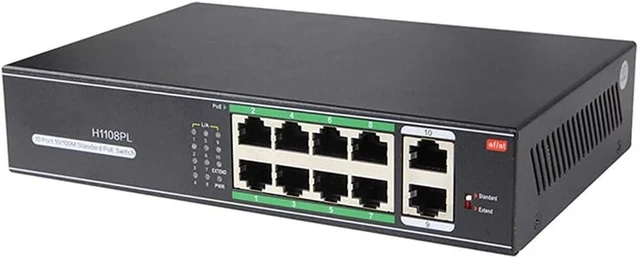

Main image of UHPPOTE 8 Port Long Transmission Distance 10/100M PoE Switch Total Power 120W

Alt view image 2 of 4 - UHPPOTE 8 Port Long Transmission Distance 10/100M PoE Switch Total Power 120W

Alt view image 3 of 4 - UHPPOTE 8 Port Long Transmission Distance 10/100M PoE Switch Total Power 120W

Alt view image 4 of 4 - UHPPOTE 8 Port Long Transmission Distance 10/100M PoE Switch Total Power 120W

Shop All NShi Products | Visit XinjintongLimited Store

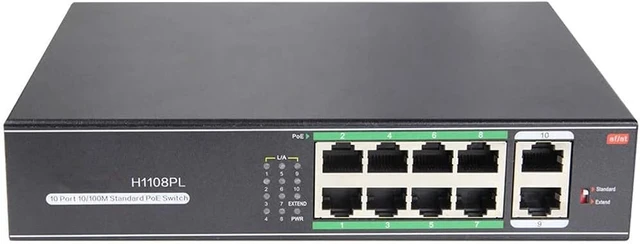

UHPPOTE 8 Port Long Transmission Distance 10/100M PoE Switch Total Power 120W

Be the first to review this product...

This non-network management PoE switches, with 8*10/100M PoE ports + 2*10/100M uplink RJ45t ports, of which 1-8 ports support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W, the whole machine is the largest The PoE output power is 120W.
As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.

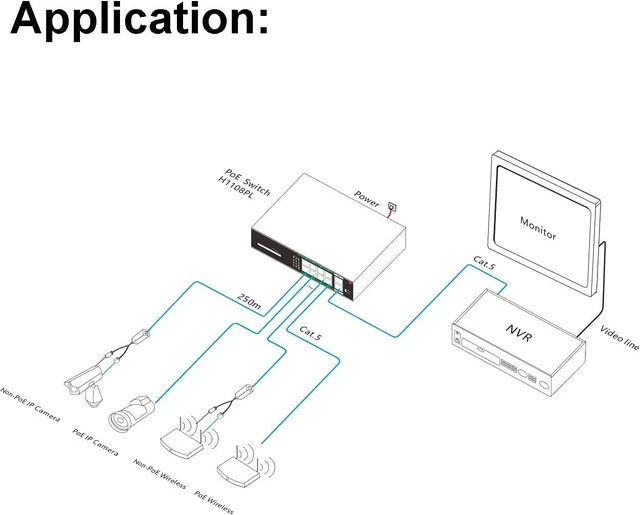

It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply.
It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy. Efficient network.
Non-network management model, plug and play, no configuration, easy to use.

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Specifications:
Inherent Port: 8*10/100Base-TX POE Ports (Data/Power) + 2*10/100Base-TX Uplink Ethernet Ports (Data)
Network protocol: IEEE802.3 10BASE-T IEEE802.3i 10Base-TIEEE802.3u 100Base-TX;IEEE802.3x
PoE standard: IEEE802.3af/at international standard
Ethernet port feature: 1-10 port 10/100BaseT (X) auto detect, full / half duplex MDI / MDI-X adaptive
Fowrding mode: store and forward(full wire speed)
Backplane Bandwidth: 2Gbps non-blocking
MAC address table: 4K
Packet forwarding cache: 1.25M
Twisted pair transmission: 10BASE-T:Cat3,4,5 UTP(250 meter);100BASE-TX:Cat5 or later UTP(100 meter)
Power pin assignment: Default 1/2(+),3/6(-);optinoal4/5(+),7/8(-)
Max/Average power per port:30W/15.4W
Total PWR/input voltage: 120WAC100-240V
Power Consumption: Standby<5W;full load<120W
LED indicator: power indicator: PWR (green); network indicator: Link (yellow); POE working indicator: PoE (green) functional switch indicator:EXTEND(green)
Power supply: Built-in switching power supply AC: 100 ~ 240V 50-60Hz
Operation TEMP/humidity: -20~+55°C;5%~90%RH(Non condensing)
Storage TEMP/humidity: -40~+75°C;5%~90%RH (Non condensing)

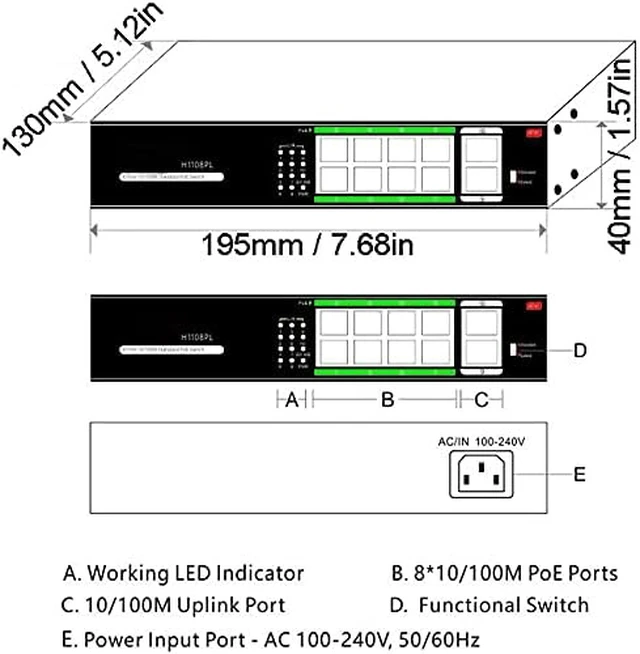

Dimension(L*W*H): 195x130x40mm / 7.68x5.12x1.57in
Net Weight: 0.8kg
Installation method: desktop type ,wall mounted type
Certification: 3C; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
Package:
1 x PoE Switch
1 x AC power line
1 x User guide
