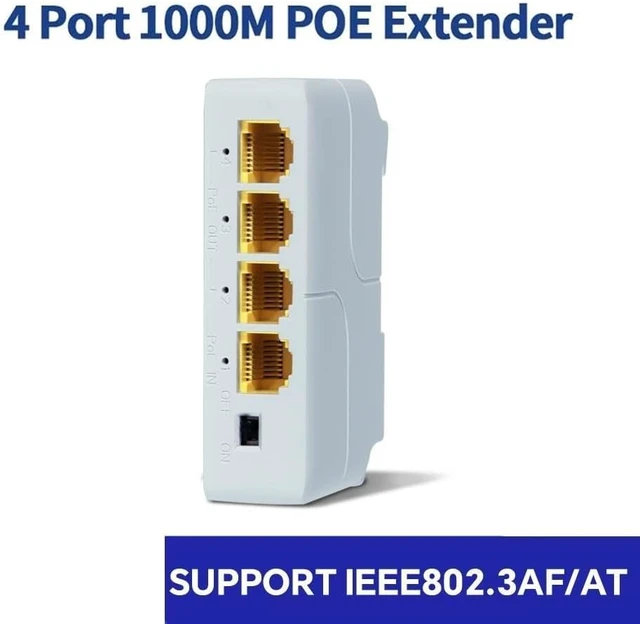

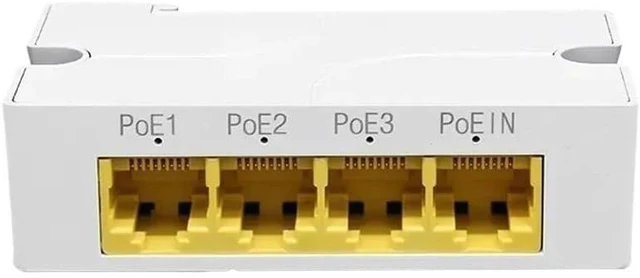

100/1000M POE Extender 4 Port Network Switch IEEE802.3af/at Plug&Play
- Hubs
- 100/1000M POE Extender with 4-Port Gigabit Switch This 4-port Gigabit Network Switch supports 10Mbps, 100Mbps, and 1000Mbps transmission rates, ensuring fast and stable connectivity for your network devices.

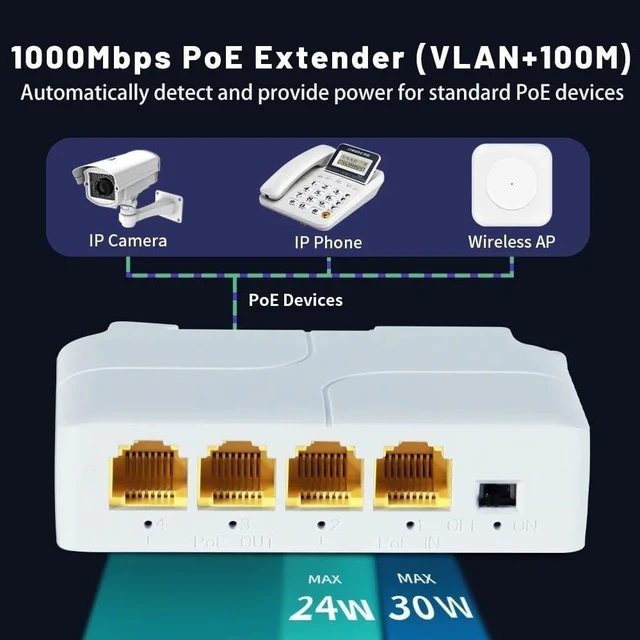

- IEEE802.3af/at PoE Support for Extended Power Delivery Equipped with IEEE802.3af/at standard PoE, it delivers up to 8 Watts per port with a total output of 25 Watts,
- High Performance with 7.4Mpps Forwarding Rate With a packet forwarding rate of 7.4Mpps and 48 Byte packet buffer memory, it ensures efficient data handling and minimal latency across high-traffic networks.
- Compact Design with Reliable Certification Measuring 82 x 52 x 23 mm and weighing only 0.074 kg, this switch is compact and lightweight,
- High-Capacity MAC Address Table & 10Gbps Bandwidth Features a 1K MAC address table and supports up to 10Gbps bandwidth enabling seamless network expansion and reliable performance in enterprise and home setups.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Hubs
Specification
Network standard: IEEE802.3, IEEE802.3u, IEEE802.3x
PoE connection standard: IEEE 802.3af/at
PoE port input power: input maximum 30W
PoE port output power: 1-3 output maximum 30W
PoE power receiving input transmission core: 1/2+, 3/6-, 4/5+, 7/8-
PoE power output transmission core: 1/2+, 3/6-

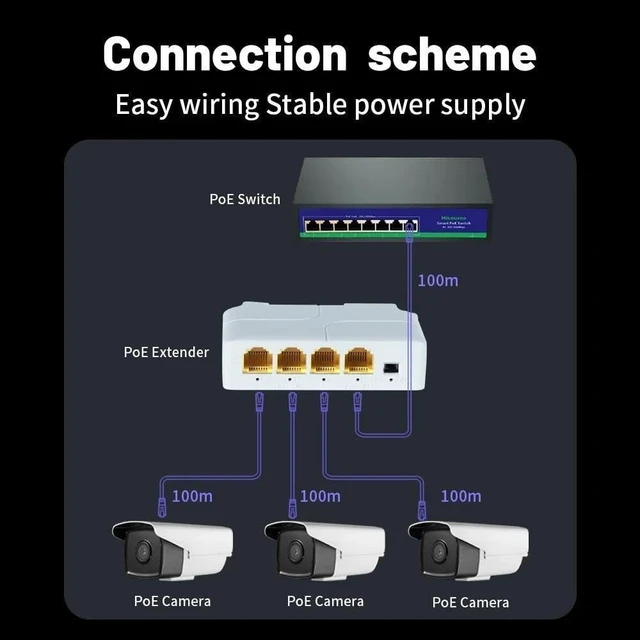

POE power supply transmission distance: 100 meters
MAC Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 1.0Gbps
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
Working temperature: -10°c to 55°c
Dimension: 82x52x23mm
Weight: 55g
==========
High-concerned chemical :
Plug Type :
Size : 82*52*23mm
Transmission Rate : 10Mbps,100Mbps,1000Mbps
Configuration : Port Power Receiving
POE Standard : IEEE802.3 AF/AT
Network standard : IEEE802.3, IEEE802.3u, IEEE802.3x
Input Power : 30 Watts, 8 Watts Per Port
Output Power : 25 Watts
POE Power on RJ45 : Power+: pin1/2,Power-: pin3/6
MAC Address Table : 1K
Bandwidth : 10Gbps
Packet forwarding rate : 7.4Mpps
Packet Buffer Memory : 48 Byte
Specification
Network standard: IEEE802.3, IEEE802.3u, IEEE802.3x
PoE connection standard: IEEE 802.3af/at
PoE port input power: input maximum 30W
PoE port output power: 1-3 output maximum 30W
PoE power receiving input transmission core: 1/2+, 3/6-, 4/5+, 7/8-
PoE power output transmission core: 1/2+, 3/6-
POE power supply transmission distance: 100 meters
MAC Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 1.0Gbps
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
Working temperature: -10°c to 55°c
Dimension: 82x52x23mm
Weight: 55g
==========
High-concerned chemical :
Plug Type :
Size : 82*52*23mm
Transmission Rate : 10Mbps,100Mbps,1000Mbps
Configuration : Port Power Receiving
POE Standard : IEEE802.3 AF/AT
Network standard : IEEE802.3, IEEE802.3u, IEEE802.3x
Input Power : 30 Watts, 8 Watts Per Port
Output Power : 25 Watts
POE Power on RJ45 : Power+: pin1/2,Power-: pin3/6
MAC Address Table : 1K
Bandwidth : 10Gbps
Packet forwarding rate : 7.4Mpps
Packet Buffer Memory : 48 Byte
