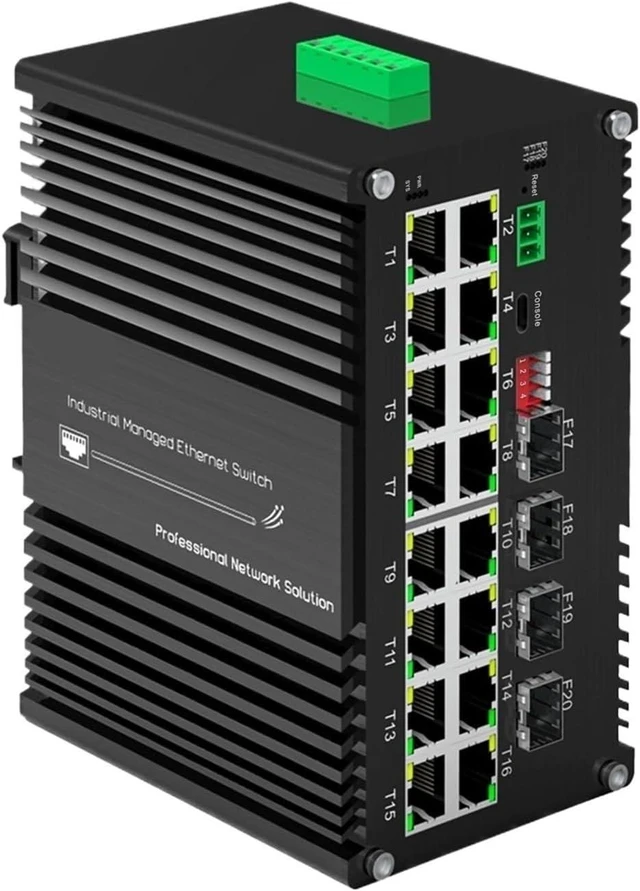

Industrial L2+ Managed PoE Ethernet Switch 16-Port+4 SFP Slot DIN Gigabit IEEE802.3af/at, Ring Network, VLAN, STP/RSTP

Industrial Switches
Industrial L2+ Managed PoE Ethernet Switch 16-Port+4 SFP Slot DIN Gigabit IEEE802.3af/at, Ring Network, VLAN, STP/RSTP
Switch Type : Gigabit Switch
Number of Interfaces : 20
VLAN : Support
Transmission Rate : 10/100/1000Mbps
Switch Capacity : 110Gbps
Communication Mode : Full-Duplex & Half-Duplex
Model Number : LNK-DIMC2416MP

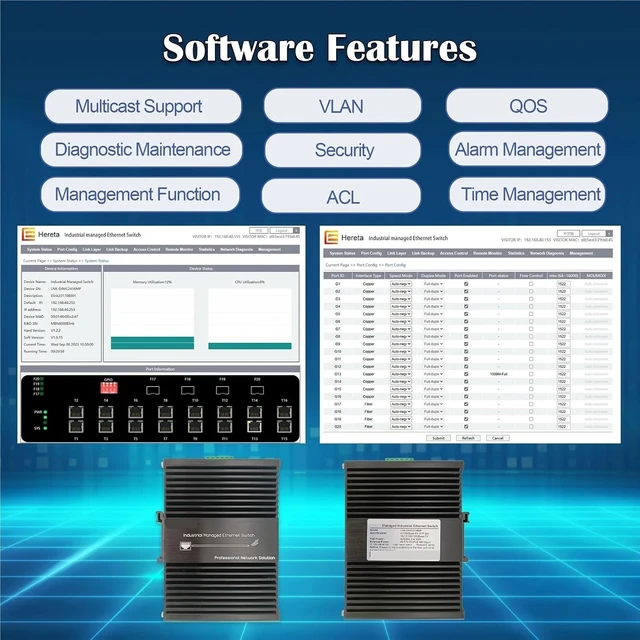

Function : POE,VLAN Support,QoS
Forward & Filtering Rate: : 10/100/1000Mbps
Packet Buffer Memory: : 12M bits
Processing Type: : Store-and-Forward
Backplane bandwidth : 110Gbps
Max Packet Length: : 10K Bytes Jumbo Frame
Address Table Size: : 8K Addresses
Connector: : 16 x RJ45
RS485: : 1 x RS485 (Optional)
Optical Port : 4 x 1000Base-X SFP
USB-C: : 1 x USB-C (for Management)
Physical interface : Industrial standard 3-pin screw terminal
Data type : 1Ch RS485 Bi-Direction
RS-485 signals : Data+, Data-, GND
Serial port line distance (copper) : 1000 meters
Baud rate : 0 ~ 800kbps
Standard: : IEEE 802.3at/af
Port: : RJ45
Power Pin Assignment : 4/5(+), 7/8(-)
PoE Budget: : Up to 480-watt PoE budget
Operating Temperature: : -40°C to 80°C (-40°F to 176°F)
Relative Humidity: : 5% to 95% non-condensing
Input Power: : 48~57VDC
<;480W)
Power Input Overload: : Automatic Resettable
