Ruilogod 5 Port Mini Poe Switch 48V 4 PoE Ports

5 Port Mini Poe Switch 48V 4 PoE Ports | 1 Uplink Port -78W - IEEE 802.3af/802.3at with 100 meters
Description;
The POE switches is designed to meet the demand of POE power supply and design of research and development of independent innovation, using the latest high-speed Ethernet switching chip, high back bandwidth design, with high speed data processing ability, improve the smooth data transmission.There are four POE power supply RJ45 ports 2 RJ45 upper end ports.The four RJ45 ports all support the IEEE 802.3af/at PoE power supply, and the maximum power supply of the single port is 30W, the largest of the whole machine is 78W.Automatic detection and identification of electrical devices that meet the IEEE 802.3af/atMain
Features:

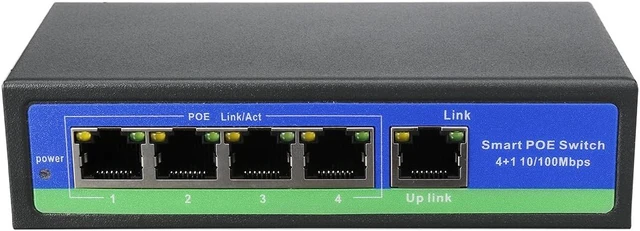

4*10/100mbps POE port;1*10/100mbps UP Link port
100m Distance
Support IEEE802.3AF/AT
Whole Power:78W(52V 1.5A)
All port supported by MDI/MDIX auto flip and self negotiation
Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
Each port max. power supply reached 30W.
Specification:
Product Name;4+1 Port 100m POE Switch (External)
POE Port1 to 5 support IEEE802.3AF/AT
Output Power;15.4W/30W IEEE802.3af/at

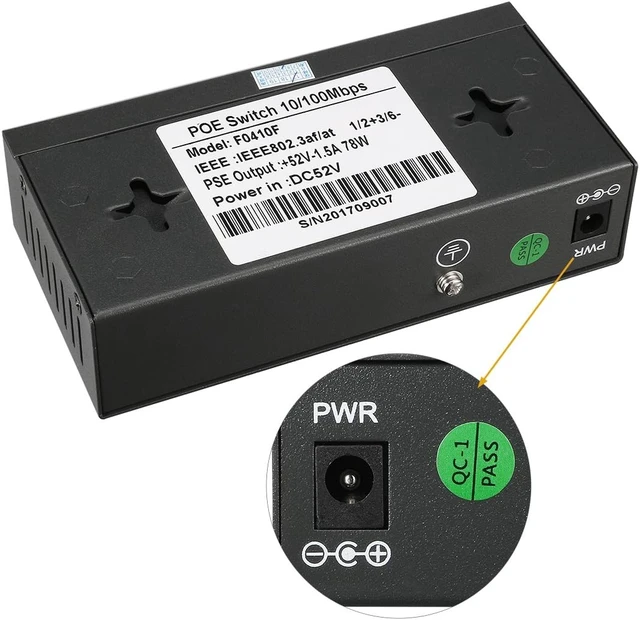

Whole Power;?78W (52V 1.5A)
POE Type:End-span
Power Distance/Data Distance:?250m
Network :IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
Network Medium:10/100BASE-TX:5 class and above non shielded twisted pair
Switch Capability:1.6Gbps
Working Environment:Working temperature:-10C-- 55C
Weight:604g/1.33lbs

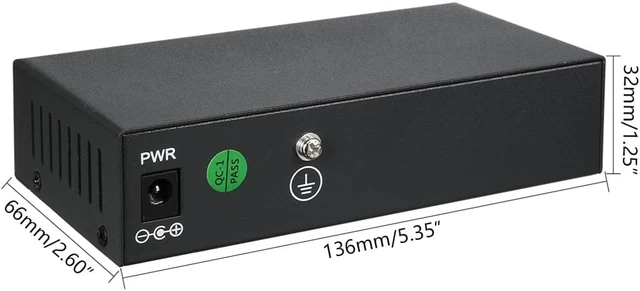

size:136*66*32mm/5.35inch*2.60inch*1.25inch

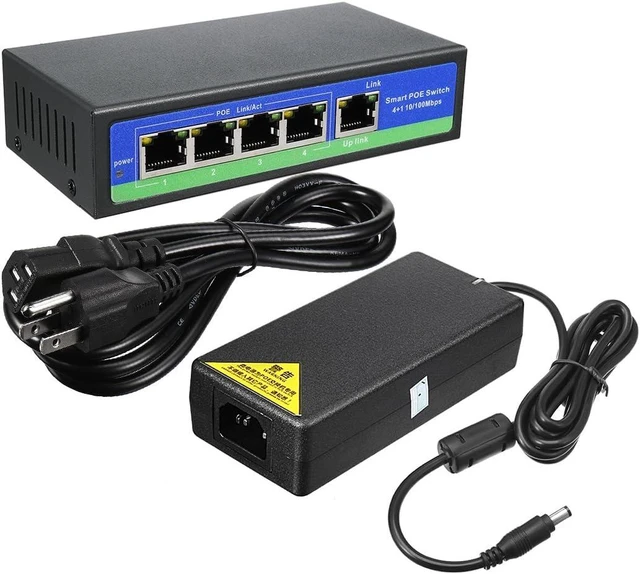

Package Include:
1 x PoE Power Over Ethernet Adapter Power Supply
1 x Cable (US Plug)
1 x User Manual
