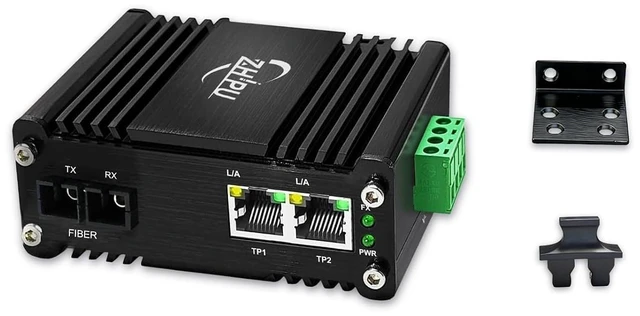

Industrial Single Mode SC 20km 1Dual-Fiber Media Converter
- DC12-48V Dual Redundant Din-Rail Gigabit RJ45 SC Single-Mode Dual-Fiber 20km Optic Transceiver
- Single Mode up to 20km: SC media converter can extend the IP Ethemet signal up to 12.43 Miles (20km)over single mode dual-fiber cable. Achieve high-quality long-distance data/signalvideo transmission

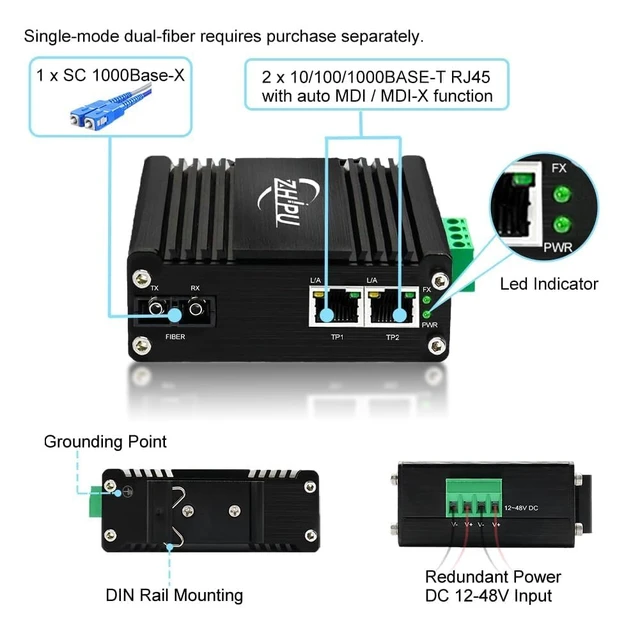

- Gigabit Ethernet Auto-Sensed: 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber with auto MD1/ MDI-X function and support full-duplex.
- Redundant Power Input: 12~48VDC Terminal Block Power Inpu, support 2 channel redundant power input.

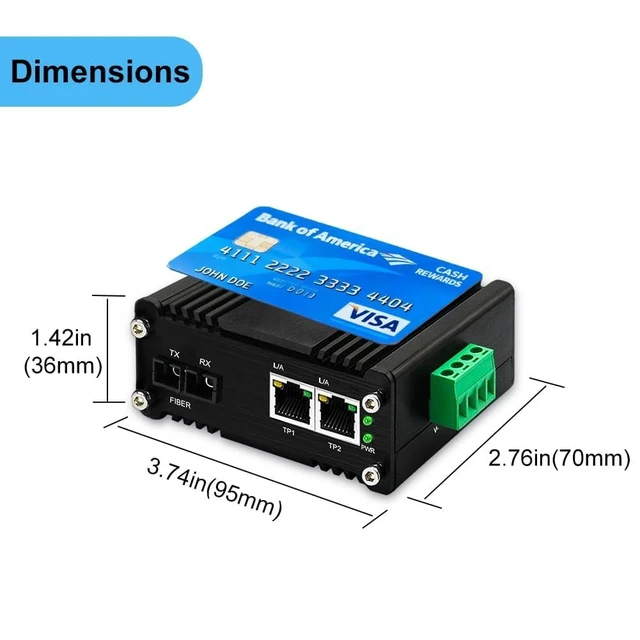

- IP40 Industrial Grade Quality: 6kV surge protection capabllty. Operate under the temperature range from -40°F to 167°F. Small size 3.74x2.76x1.42in (90x70x36mm)
- Din-Rall: Support rail installation. Suitable for data centers, computer rooms and switches or routers located inside the cabinet.
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

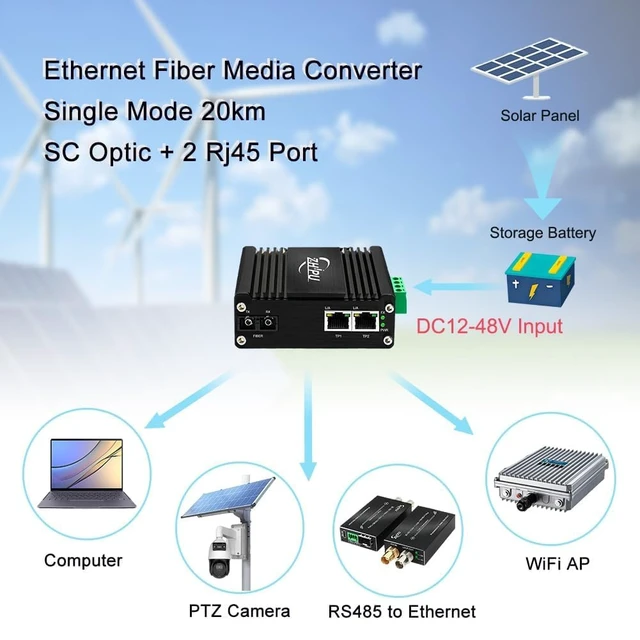

The 2 port industrial switch is ideal for Solar Power/VoIP/RV Truck, Surveillance Network, Industrial Automation, Intelligent Transportation.

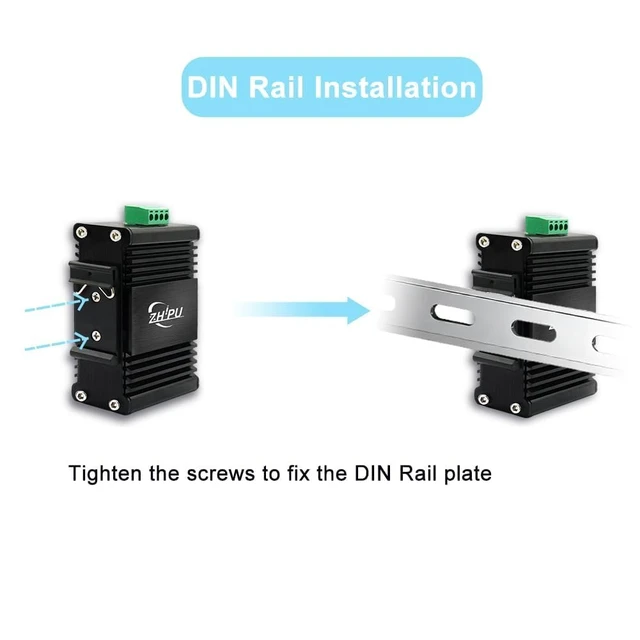

DIN rail Installation
Wall mounting installation
All ports 10/100/1000Mbps self-adaptive full duplex
2 gigabit ports and 1 SC/SFP port
Compact design, DIN rail or Wall mounting easily fit into small cabinets or machines.
Supports 8-pin simultaneous power supply (1/2/4/5+, 3/6/7/8-), 2 channel
Q1: Can it connect 2 electrical devices at the same time?
A: Yes. 1 fiber port for long-distance transmission, 2 electrical ports for connecting cameras/PLCs/switches simultaneously.
Q2: Max transmission distance of this transceiver?
A: Single-mode: up to 20/40/80km (varies by model); Multi-mode: up to 550m, compatible with mainstream fibers.
Q3: Is it compatible with 10/100/1000Mbps devices?
A: Yes. 2 electrical ports support auto-negotiation & MDI/MDIX, plug-and-play with no manual setting.
Q4: Whats the after-sales?
A: 2-year for non-human damage. Online technical support for installation & troubleshooting.
Customer Reviews Price price 72 84 140.2 96 115 140.2 PoE Standerd no data IEEE802.3af/at IEEE802.3af/at no data IEEE802.3af/at IEEE802.3af/at Industrial 2-Port Gigabit Switch with SC/SFP 12-48V DC Features 2 Ways Installations Gigabit Converter Mini Size Redundant Power Widely Used Security Monitoring Office Networks Road Traffic Home Gaming
DIN rail Installation
Wall mounting installation
All ports 10/100/1000Mbps self-adaptive full duplex
2 gigabit ports and 1 SC/SFP port
Compact design, DIN rail or Wall mounting easily fit into small cabinets or machines.
Supports 8-pin simultaneous power supply (1/2/4/5+, 3/6/7/8-), 2 channel
Q1: Can it connect 2 electrical devices at the same time?
A: Yes. 1 fiber port for long-distance transmission, 2 electrical ports for connecting cameras/PLCs/switches simultaneously.
Q2: Max transmission distance of this transceiver?
A: Single-mode: up to 20/40/80km (varies by model); Multi-mode: up to 550m, compatible with mainstream fibers.
Q3: Is it compatible with 10/100/1000Mbps devices?
A: Yes. 2 electrical ports support auto-negotiation & MDI/MDIX, plug-and-play with no manual setting.
Q4: Whats the after-sales?
A: 2-year for non-human damage. Online technical support for installation & troubleshooting.
Customer Reviews Price price 72 84 140.2 96 115 140.2 PoE Standerd no data IEEE802.3af/at IEEE802.3af/at no data IEEE802.3af/at IEEE802.3af/at Industrial 2-Port Gigabit Switch with SC/SFP 12-48V DC Features 2 Ways Installations Gigabit Converter Mini Size Redundant Power Widely Used Security Monitoring Office Networks Road Traffic Home Gaming
