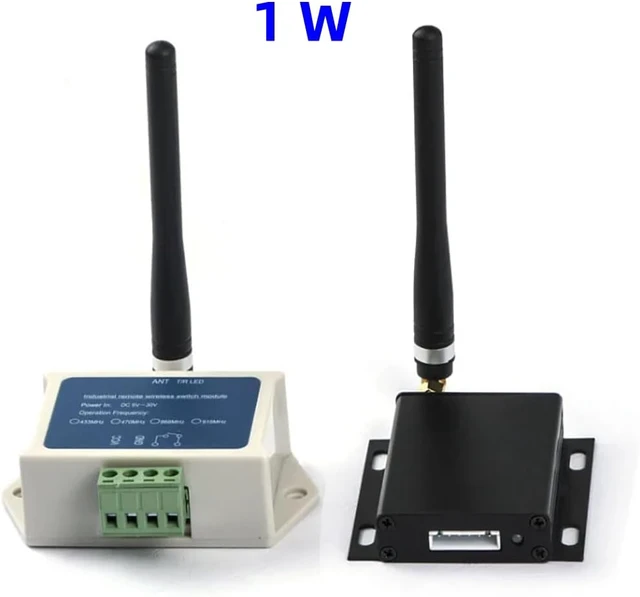

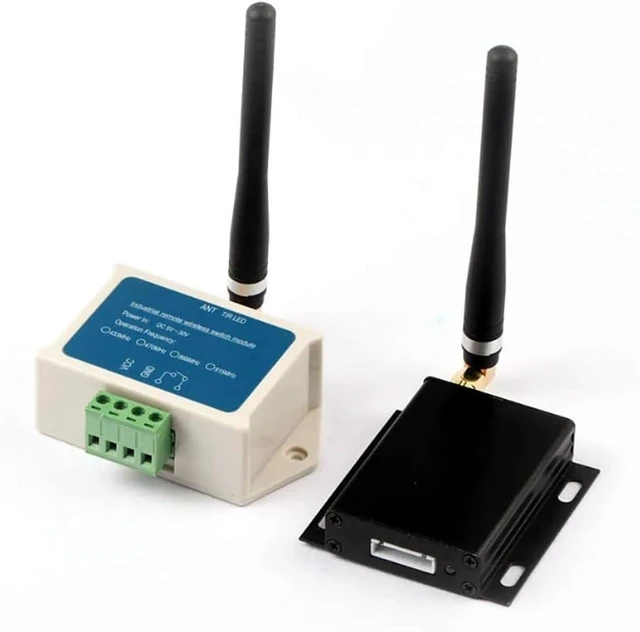

SK200PRO 5~8km MESH 1W LoRa Wireless Switch Control RF Module

Package Including:
1pcs * SK200PRO-RX
1pcs * SK200PRO-TX-1W
2pcs * DC adapters
2pcs * Glue Stick Antennas

SK200Pro is a 1W industrial wireless relay module. It consists of SK200PRO-TX ( transmitter module ) and SK200PRO-RX ( receiver module ). The wireless design uses LoRa technology, which has highly efficient receiving sensitivity and strong anti-interference performance. Its communication distance and receiving sensitivity are better than FSK and GFSK modulation. In the one-to-many working mode, in cooperation with the MESH ad hoc network that comes with the receiving end, it can form a network transmission without blind spots and distance restrictions.
The module provides single signal input and single control output interface. It has the characteristics of simple interface and reliable operation. Users can combine our PC interface to configure and modify the internal parameters of the module. The parameters of the receiver can be wirelessly configured by the transmitter, which is convenient for online changes. Multi-pair simultaneous communication will not interfere with each other, and it is flexible and convenient to use.

Features of Wireless Relay Module SK200Pro
MESH network function
Working frequency band: 433/490/868/915 MHz optional
Sensitivity up to -132 dBm
Built-in software watchdog algorithm
Built-in hardware anti-crash protection circuit
Transceiving frequency can be arbitrarily configured
Multiple working modes
Anti-overcurrent, overvoltage, rever connection protection circuit
Built-in hardware reset protection circuit
Built-in anti-static protection circuit
LoRa modulation mode
Transmitter power is selectable: (100mW5W)
Support wireless modification parameters
Operating temperature range: -40 ~+85 ° C

Application of Wireless Relay Module SK200Pro
Digital remote control
Security system
Wireless pump control
Wireless remote a
