$202.99
Meet Your Seller

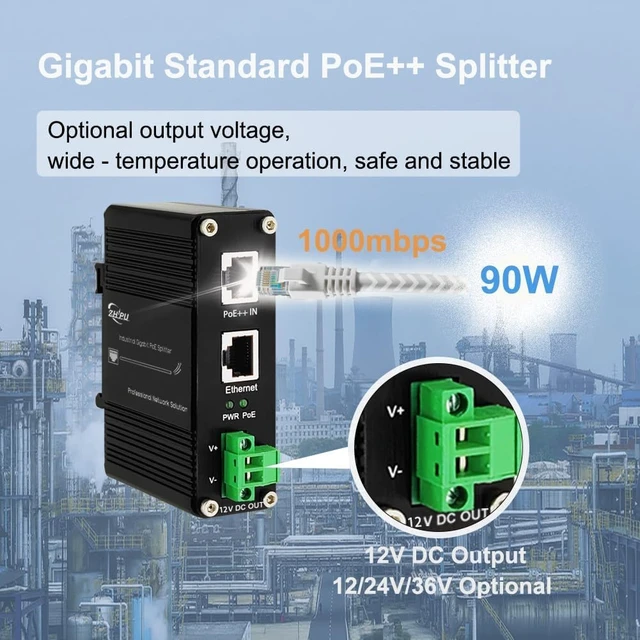

IEEE802.3at/af/bt 12VDC 1000Mbps Industrial 95W PoE++ Splitter
- 12VDC Output (2-pin Terminal Block), distance up to 100 meters, DIN-Rail & Wall-mount, 10/100/1000Base-T
- IEEE802.3af/at/bt PoE: Extensive LED indicators for PoE diagnostics, the datatransmission, up to Gigabit speeds, with power output voltages of 12VDC, run simultaneously up to the Ethernet limit of 100 meters

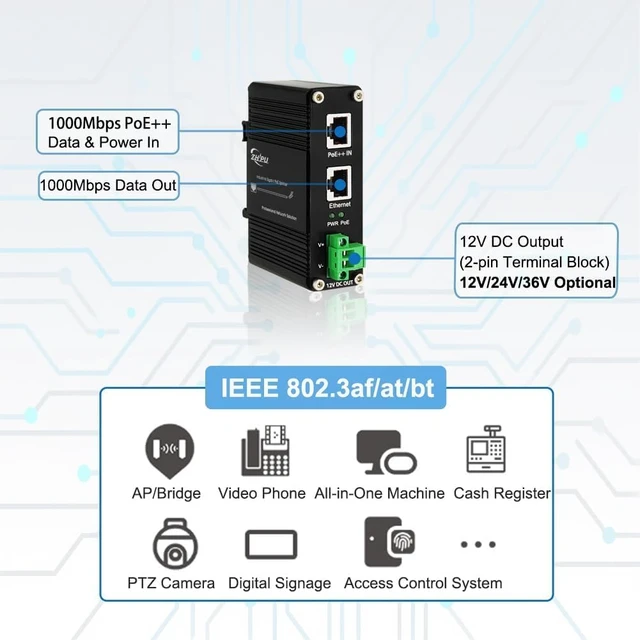

- 12VDC Output: One 12VDC Output (2-pin Terminal Block), one RJ-45 Port (DataOut), one RJ-45 PoE Port (Data & Power In).

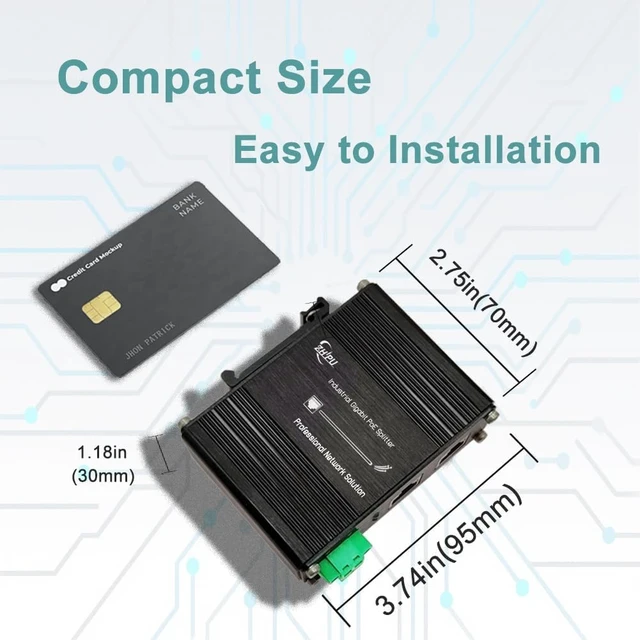

- Product Specification: 3.74*2.76*1.18in Dimensions (WxDxH), 0.55 pounds netweights.
- Product Presentation: Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage12VDC, maximum output of 90w bt 12VDC

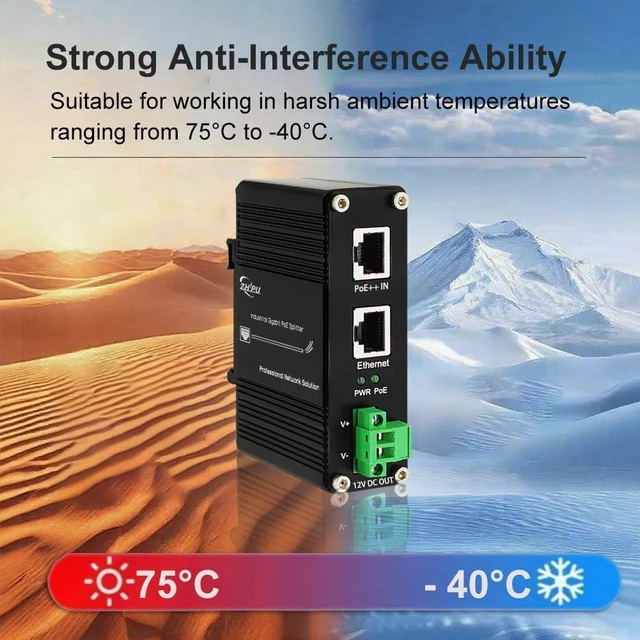

- Din-Rail & Wall Mount: Aluminum alloy, support DIN-Rail mounting and Wallmounting installation, -40 to 80°C operating temperature
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

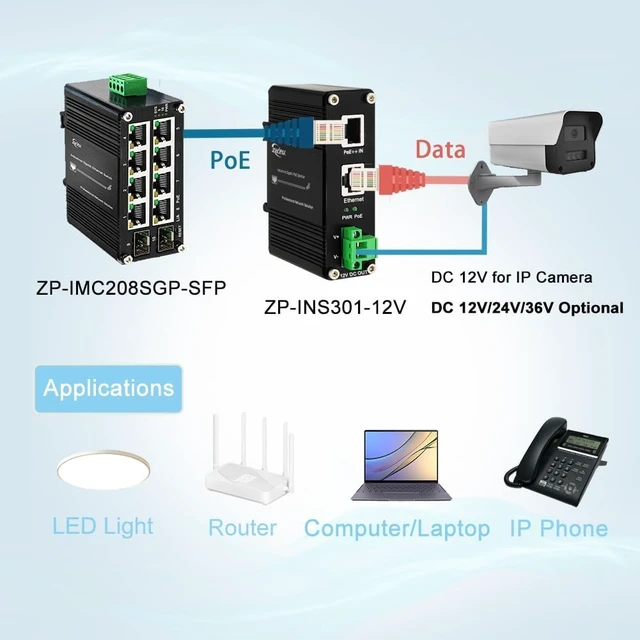

ZP-INS901 series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.
The ZP-INS901 acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt PSE (Power Source Equipment) switches or work when paired with ZP-INJ901 PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 24VDC, run simultaneously up to the Ethernet limit of 100 meters.
Features
Splits power and data from PoE Input
One RJ45 PoE Port (Data & Power In)
One RJ45 Port (Data Out)
One 12VDC/24V/36V Output (2-pin Terminal Block)
Support IEEE802.3af/at/bt PoE++
Support 10/100/1000Base-T
Distance up to 100 meters
Short-circuit protection for power output
IP40 rugged aluminium housing and fanless
Support DIN-Rail & Wall-mount installation
The ZP-INS901 acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt PSE (Power Source Equipment) switches or work when paired with ZP-INJ901 PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 24VDC, run simultaneously up to the Ethernet limit of 100 meters.
Features
Splits power and data from PoE Input
One RJ45 PoE Port (Data & Power In)
One RJ45 Port (Data Out)
One 12VDC/24V/36V Output (2-pin Terminal Block)
Support IEEE802.3af/at/bt PoE++
Support 10/100/1000Base-T
Distance up to 100 meters
Short-circuit protection for power output
IP40 rugged aluminium housing and fanless
Support DIN-Rail & Wall-mount installation
