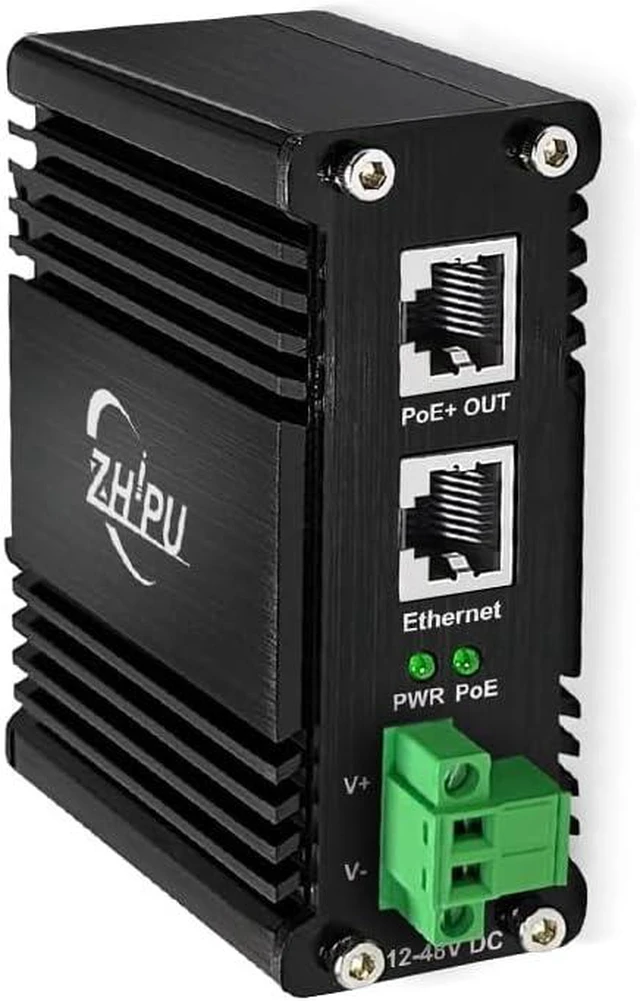

30W PoE Injector Industrial 10/100/1000 Mbps IEEE802.3at 12-48V
- IP40 aluminum housing,40°F to 176°F,3.74*2.75*1.42in,12~48VDC

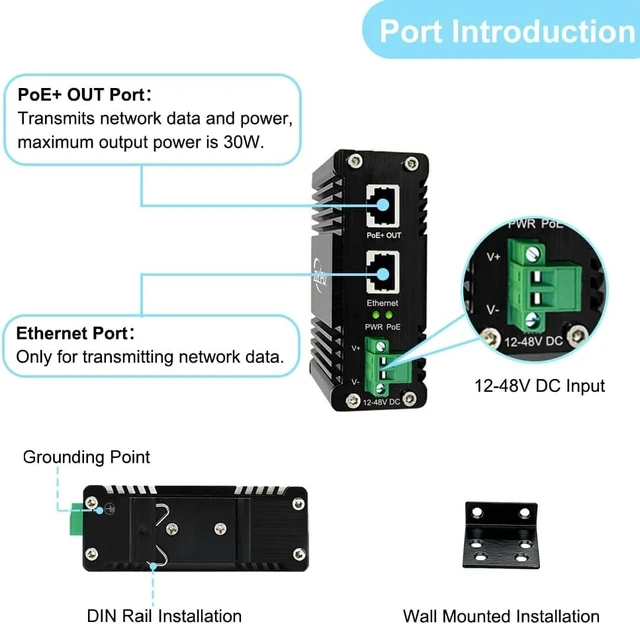

- Core Port Configuration:1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power). Compliant with IEEE 802.3af/at. It provides 30W PoE output.
- Industrial durable design: Meets IP40 aluminum housing,work temperature ranging from-40°F to 176°F-40°C to 80°C,suitable for industrial harsh environment.
- IEEE 802.3af/at PoE Standard: With PoE output port, supports IEEE802.3af PoE (15.4W) and IEEE802.3at PoE+(30W). Single port support max 30W PoE.
- 12-48V Power Input:Provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

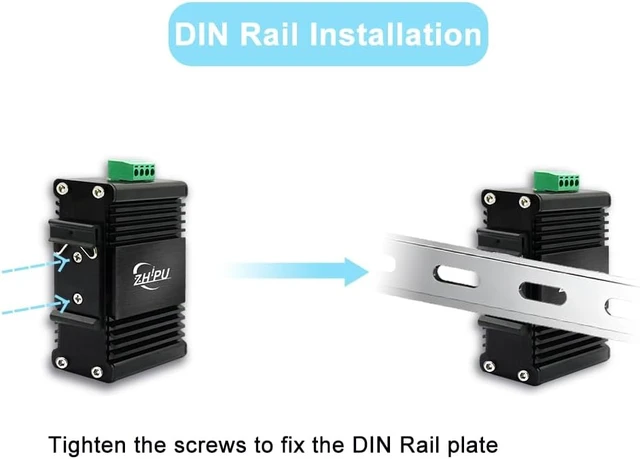

- Din-Rail Mount:Compact design 3.74*2.75*1.42in (95*70*36mm) supports DIN-Rail installation,saving space and being very easy to install.
- After-sales service : If you have any issues with your product, feel free to contact us at any time we'll take care of it for you.
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The 30W/95W Gigabit PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Support 4K/8K camera transmission.
LAN switch Connect the Ethernet port of the injector to a LAN switch with a network cable. Connect the PoE Out port to the PoE device PWR indicator After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection. IEEE 802.3af/at Supports IEEE 802.3at Power over Ethernet (PoE) Power Sourcing Equipment (PSE). Plug and Play. Support 10/100/1000 Base-T DIN-Rail installation Mini Case DIN-Rail installation. Operating temperature: -40 to 75 ( -40 to 167) Its widely used in wireless AP / CCTV security transmission / VoIP IP phone system/ Robust fiber ring network etc.
Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Dimensions (WxDxH): 95*70*36 mm, Weight: 0.25Kg (0.55Ib)
Why do ordinary switches burn out outdoors during thunderstorms?
Regular switches lack surge protection. This unit features built-in 6KV lightning protection on every port to shield circuits from voltage spikes.
Why do cheap industrial switches fail quickly after months of use?
Premium capacitors and isolated circuits support round-the-clock operation to avoid unexpected production downtime.
Can unstable industrial DC power fry the switch?
Multi-protection circuits (overvoltage, reverse polarity, short-circuit) auto-cut power to safeguard the mainboard.
Application PoE Standars Why do ordinary switches burn out outdoors during thunderstorms?
Why do cheap industrial switches fail quickly after months of use?
Can unstable industrial DC power fry the switch?
Support 4K/8K camera transmission.
LAN switch Connect the Ethernet port of the injector to a LAN switch with a network cable. Connect the PoE Out port to the PoE device PWR indicator After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection. IEEE 802.3af/at Supports IEEE 802.3at Power over Ethernet (PoE) Power Sourcing Equipment (PSE). Plug and Play. Support 10/100/1000 Base-T DIN-Rail installation Mini Case DIN-Rail installation. Operating temperature: -40 to 75 ( -40 to 167) Its widely used in wireless AP / CCTV security transmission / VoIP IP phone system/ Robust fiber ring network etc.
Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Dimensions (WxDxH): 95*70*36 mm, Weight: 0.25Kg (0.55Ib)
Why do ordinary switches burn out outdoors during thunderstorms?
Regular switches lack surge protection. This unit features built-in 6KV lightning protection on every port to shield circuits from voltage spikes.
Why do cheap industrial switches fail quickly after months of use?
Premium capacitors and isolated circuits support round-the-clock operation to avoid unexpected production downtime.
Can unstable industrial DC power fry the switch?
Multi-protection circuits (overvoltage, reverse polarity, short-circuit) auto-cut power to safeguard the mainboard.
Application PoE Standars Why do ordinary switches burn out outdoors during thunderstorms?
Why do cheap industrial switches fail quickly after months of use?
Can unstable industrial DC power fry the switch?
