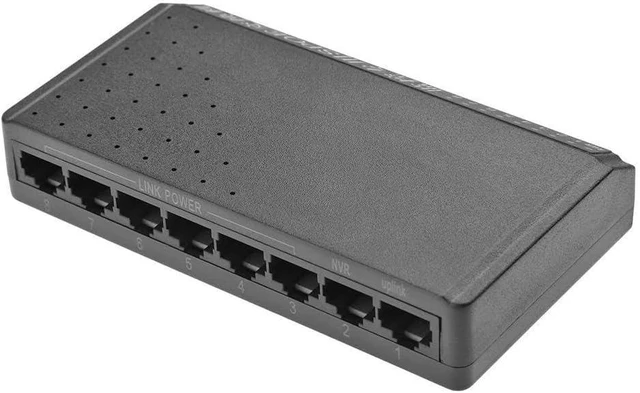

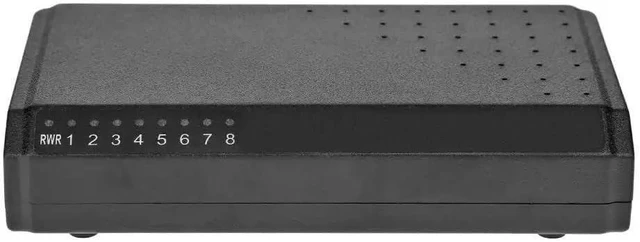

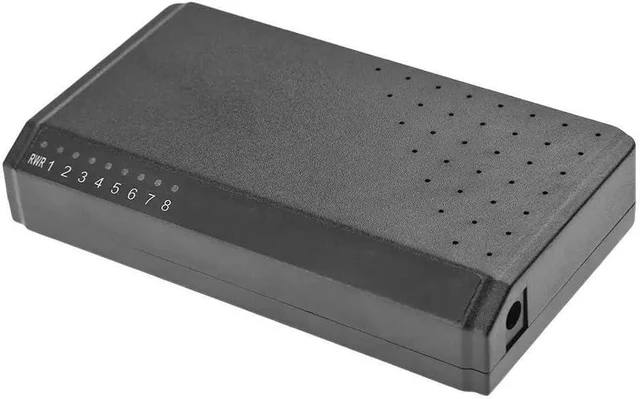

8 Ports 6+2 PoE Switch Injector Power Over Ethernet Power Adapter Network

Hubs
Specification:
Model: GL-AD6F-2C
Standard: IEEE 802.3/IEEE 802.3U/IEEE 802.3z/IEEE 802.3x/IEEE 802.1P ANSI/IEEE STD 802.3 10/100M Adaptive
Agreement: CSMA / CD, TCP / IP
Cables: unshielded twisted pair (UTP) or shielded twisted pair (STP), 5 or Cat6 categories, maximum length 100m
Fiber optic cable: optical wavelength: 850nm / 1310nm / 1550nm
Single mode single fiber: 25-120KM
Single mode double fiber: 25-120KM
Port: 6pcs 10/100M Internet access, using RJ45 connector to connect to two 10/100M Internet access, RJ45 connector (uplink).
Network sequence: 4 chips 100M 1 orange 2 Orange 3 Green 6 green
POE mode: 3-8 ports support constrained POE non-protocol power supply 4 Blue 5 blue power positive (+), 7 Brown 8 Brown negative (-), need to be used with cable separator
Connection and transmission mode: 100M net electric hybrid power
Uplink transmission: 100M RJ45 Internet access
Flow control: full duplex 1EEE802.3x flow control; half duplex back pressure flow control.
Exchange level: 2 level
After bandwidth: 1G
address format: 4K
address research: update
Delay rate: 9.6us
<;1000000000/1

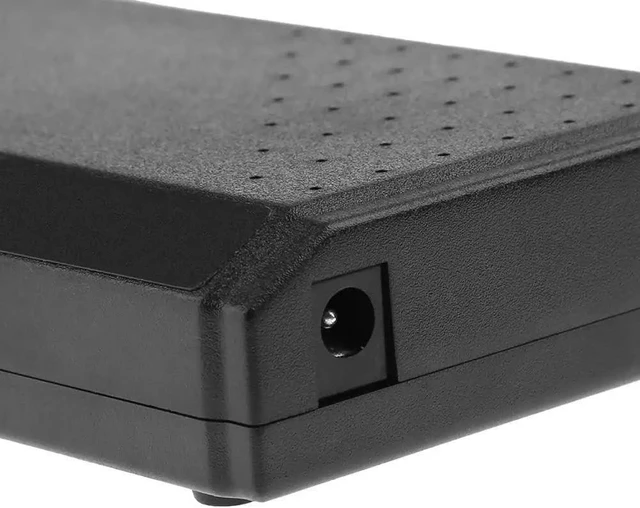

Power input range: DC 6V - 56V
<;5W
MTBF:10 million hours
Working temperature: -40~ -70
Storage temperature: -40~ -80
Humidity: 5%~90% without condensation
Product size: 125*70*25mm/4.92*2.75*0.98''
Note:
1 x PoE Switch
1 x User Manual
==========
High-concerned chemical :
Material : Plastic
Transmission Rate : 10/100Mbps
Function : POE
8 Ports : PoE Switch
