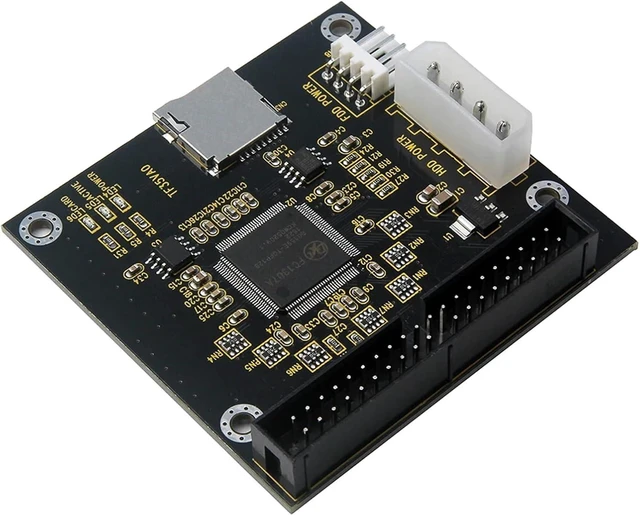

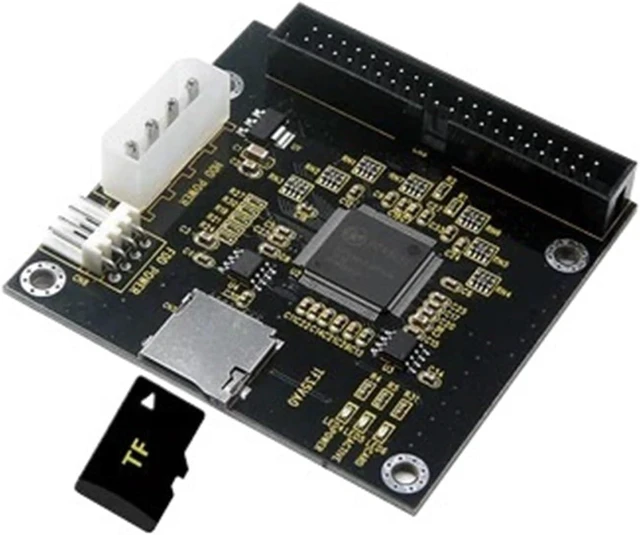

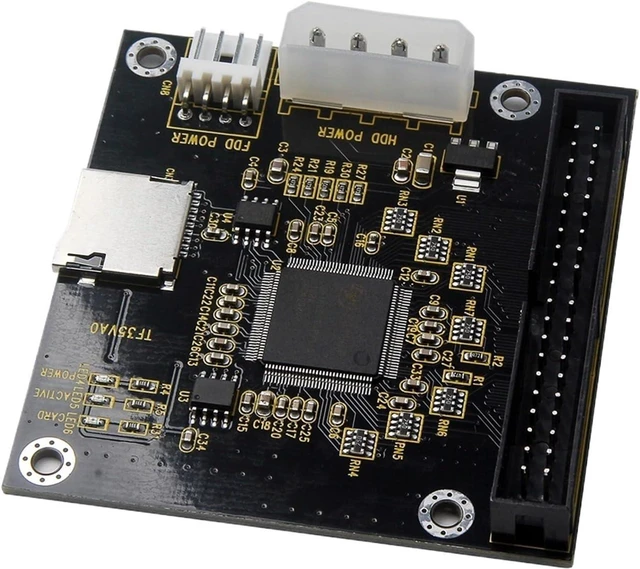

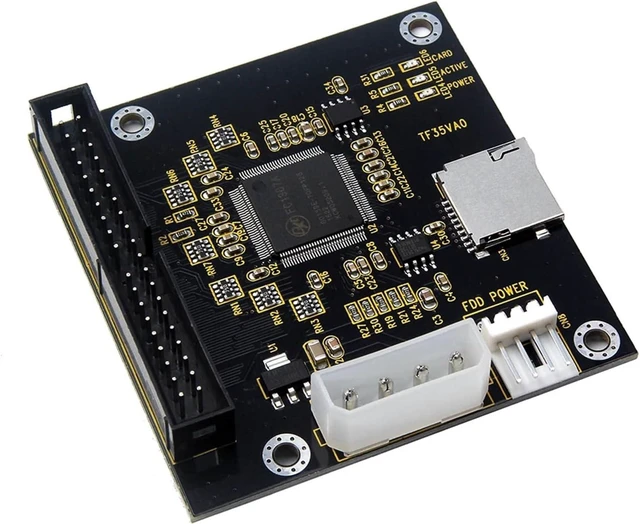

TF to IDE3.5 40 Pin Disk Drive Adapter Board Riser Card Capacity Supports 512GB SDXD Card ATA IDE for Laptop Notebook

Laptop Network Adapters
Product Specifications: A standard IDE 3.5' interface;
a standard SD socket;
A standard large 4Pin power connector.
SD-IDE conversion interface board instructions:
Connection instructions:
1. The POWER power supply can be powered by a hard disk. The card only needs to be powered by 5V. The normal working voltage is 5Vplusmn0.25V. Operating current is less than 200mA.
2. IDE socket Please use 80 PIN hard drive cable. This card supports PIO, Multi-word DMA and Ultra DMA Host data transfer modes;
3. The SD socket supports up to 128GB SDXD cards.
Connect the power supply and the IDE cable. After the SD card is inserted into the SD socket, the conversion board is equivalent to an electronic hard disk, and no driver is required. After installing the operating system, you can boot the operating system (such as windows98, etc.) via the SD memory card.
The data transfer rate is high, and the speed is roughly the same as the system hard disk speed (ATA/133, U-DMA mode3)
Dimensions: length * width (80 * 68) units: mm (MM)
Color: Blackboard Chip 1309
Model Number : XTQ0032
Type : Data Converters
