30W gigabit PoE Injector|24V Or 48V Passive PoE
- Aluminium alloy case|POE PIN mode A 1236 or mode B 4578 selectable(48V wall mounting)
- Hubs
- 30W Gigabit PoE Injector with Dual Voltage Support This 30W gigabit PoE injector supports both 24V and 48V passive PoE, providing flexible power delivery for various network devices. Ideal for IP cameras, VoIP phones, and wireless access points.

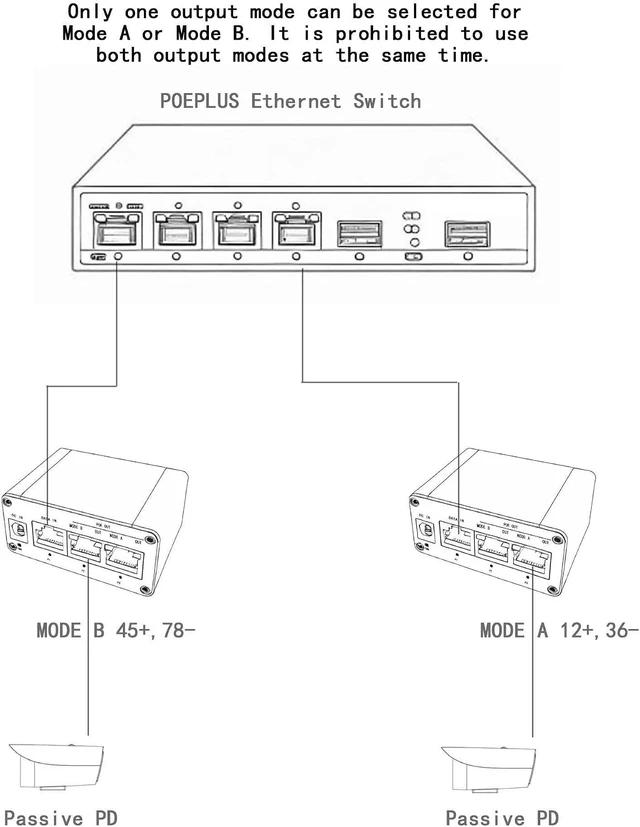

- Selectable POE PIN Mode A or B Offers POE PIN mode A or mode B (4578 selectable, allowing compatibility with a wide range of PoE-enabled devices. Easy configuration for optimal network integration.
- High-Speed Ethernet Transmission Delivers up to 10/100/1000Mbps transmission rates, supporting gigabit speeds for fast and reliable network performance. Perfect for modern network infrastructures with high bandwidth demands.

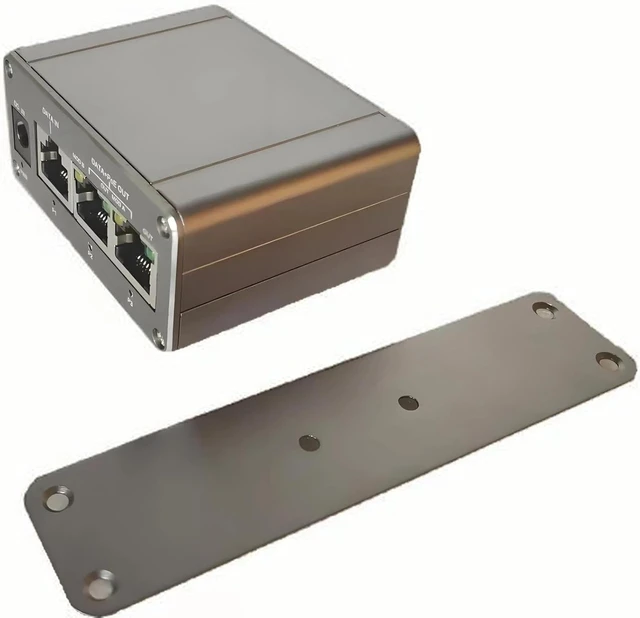

- Compact and Easy to Install Available in DIN mounting and wall mounting options, this device fits seamlessly into various setups. Compact dimensions of 10 x 10 x 5 cm make it space-efficient and easy to deploy.
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Hubs
Features
l20Vdc-36Vdc input
lShielded RJ45 connectors to ground plane
lIP40 rated Gigabit max 30w POE Injector
lPassive POE 45+,78- and 12+,36- alternative
lDeliver power up to 100m (328 ft.) away
lExtreme -30 to 75 °C operating temperature range
Model
SP2430-B
Port
1*RJ45*10/100/1000M
Data IN
2*RJ45*10/100/1000M
PoE OUT(Mode A
or Mode B)
1* DC IN
(2P) power terminals
Standard
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
DC IN
DC(2P):24V MAX 2A(2.5A/3.75A/5A)
PoE Output
24Vdc
MAX 30W(60/90/120W)
Data Pin
1234,5678
PoE Out
Mode
A:12+,36-;Mode B:
45+,78-
Indicator
PWR:Power ON
Transmission
10Base-T: two pairs of Cat3 or latter
UTP/STP(250m)
100Base-TX: two pairs of Cat5 or latter
UTP/STP(150m)
1000Base-T:
for pairs of Cat5e or latter UTP/STP(100m)
Features
Plug and
play without more configuration management
Reliability:MTBF>100khours
Lightning Protection
6KV
8/20us;6KV ESD
protection
Protect grade
IP40
Environment
Temperature:-30-75
Storage
Temperature:-40-85
Environment
Humidity:10%-90%
RH Non coagulation
Storage
Humidity:5%-90% RH Non coagulation
Product Size
54*70*32mm(bracket
not included)
Package size
120*100*59mm
Weight
200g
Package info
80PCS/CTN,510*430*320mm,25kgs/CTN
Warranty
1 year
==========
High-concerned chemical :
Switch Type : Ethernet
Package : Yes
Transmission Rate : 10/100/1000Mbps
Communication Mode : Full-Duplex & Half-Duplex
Model Number : SP2420B-24V
Function : POE
Features
l20Vdc-36Vdc input
lShielded RJ45 connectors to ground plane
lIP40 rated Gigabit max 30w POE Injector
lPassive POE 45+,78- and 12+,36- alternative
lDeliver power up to 100m (328 ft.) away
lExtreme -30 to 75 °C operating temperature range
Model
SP2430-B
Port
1*RJ45*10/100/1000M
Data IN
2*RJ45*10/100/1000M
PoE OUT(Mode A
or Mode B)
1* DC IN
(2P) power terminals
Standard
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
DC IN
DC(2P):24V MAX 2A(2.5A/3.75A/5A)
PoE Output
24Vdc
MAX 30W(60/90/120W)
Data Pin
1234,5678
PoE Out
Mode
A:12+,36-;Mode B:
45+,78-
Indicator
PWR:Power ON
Transmission
10Base-T: two pairs of Cat3 or latter
UTP/STP(250m)
100Base-TX: two pairs of Cat5 or latter
UTP/STP(150m)
1000Base-T:
for pairs of Cat5e or latter UTP/STP(100m)
Features
Plug and
play without more configuration management
Reliability:MTBF>100khours
Lightning Protection
6KV
8/20us;6KV ESD
protection
Protect grade
IP40
Environment
Temperature:-30-75
Storage
Temperature:-40-85
Environment
Humidity:10%-90%
RH Non coagulation
Storage
Humidity:5%-90% RH Non coagulation
Product Size
54*70*32mm(bracket
not included)
Package size
120*100*59mm
Weight
200g
Package info
80PCS/CTN,510*430*320mm,25kgs/CTN
Warranty
1 year
==========
High-concerned chemical :
Switch Type : Ethernet
Package : Yes
Transmission Rate : 10/100/1000Mbps
Communication Mode : Full-Duplex & Half-Duplex
Model Number : SP2420B-24V
Function : POE
