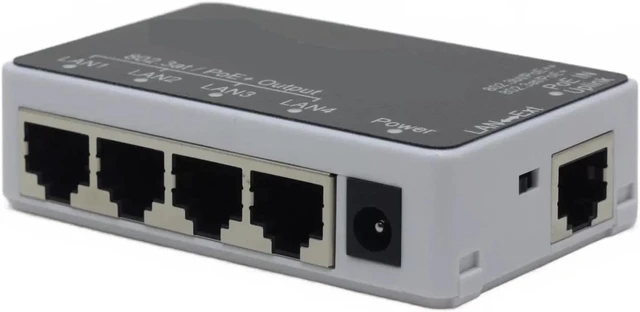

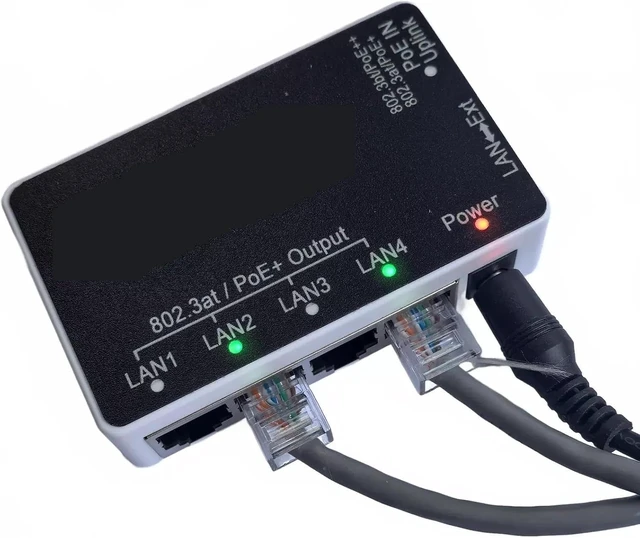

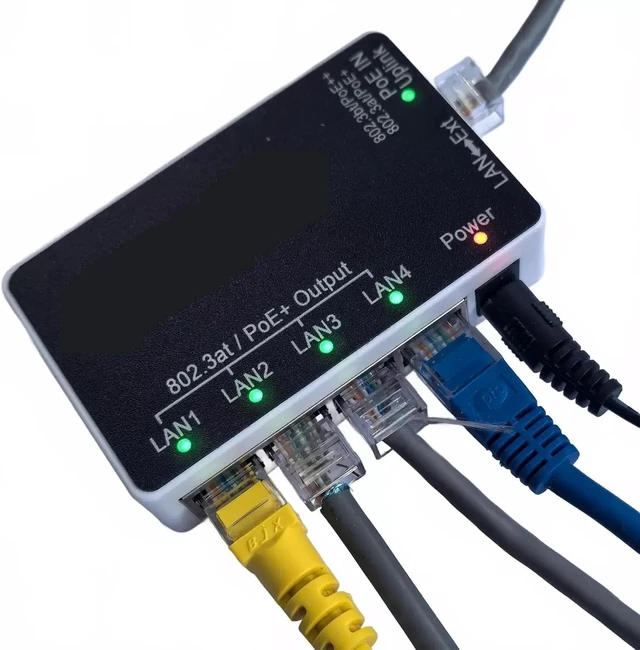

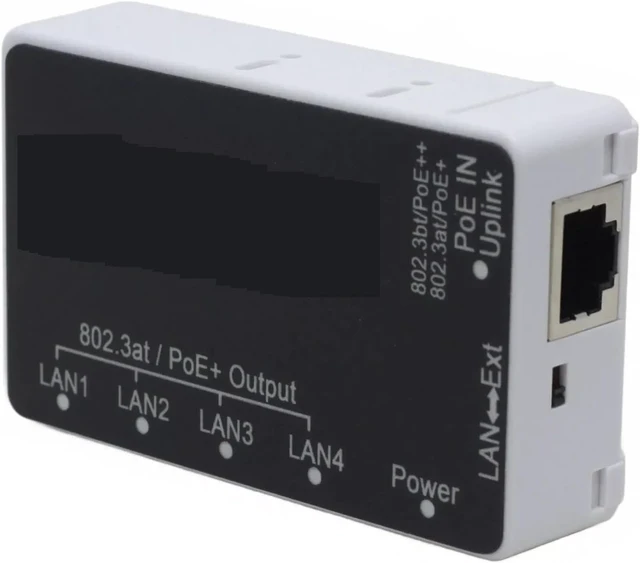

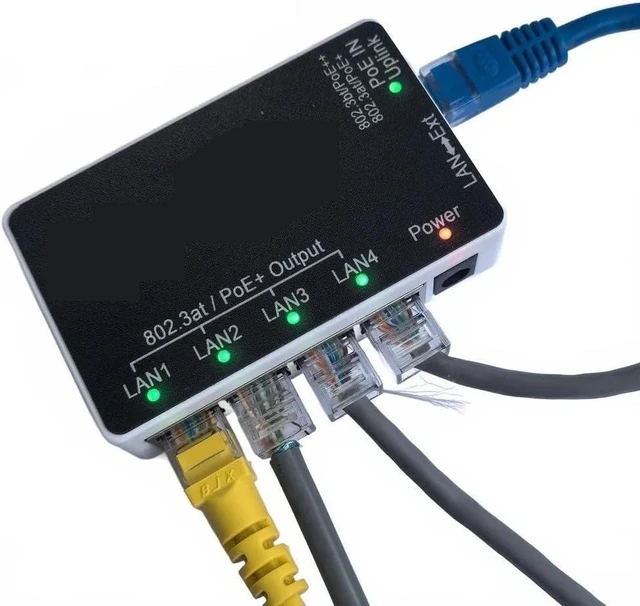

PoE++ 90watt 5 Port Gigabit PoE Switch PoE Extender Repeater 802.3bt
- Hubs
- High-Power 90W PoE++ Support This 5 Port Gigabit PoE Passthrough Switch delivers up to 90 watts of power per port, fully compliant with 802.3bt standard, enabling reliable power and data transmission for high-demand devices like PTZ cameras and wireless access points.
- 5 Gigabit Ethernet Ports Equipped with 5 Gigabit Ethernet ports, this switch ensures fast, stable data transfer speeds up to 1 Gbps, ideal for bandwidth-intensive applications such as video surveillance and high-speed network expansions.
- Compact and Lightweight Design Measuring 8 x 5 x 22 cm and weighing only 0.300 kg, this switch offers a space-saving solution for tight installations while remaining easy to transport and deploy in various environments.
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Hubs
5 Port(1 PoE in - 4 PoE Out)GigabitPoE Passthrough Switch
PoE Extender Cascade Repeater
Features:The PoE extender/switch does not require local power and is powered via the Uplink port PoE input.
Additionally, it supports DC power input: DC 12V-57V, 5.5x2.1mm DC port*Supports PoE++ (802.3bt) power input, with a maximum of 90 watts input, and a total power output of 72 watts for LAN1-LAN4 PoE.
Supports PoE+ (802.3at) output on LAN1-LAN4.
LAN1-LAN4 Ext mode: Maximum network cable length up to 250 meters, Ethernet speed: 10 Mbps**LAN1-LAN4 LAN mode: Maximum network cable length up to 100 meters, Ethernet speed: 1000 Mbps
Supports IEEE 802.3af/802.3at/802.3bt (maximum 90 watts) Power over Ethernet (PoE) switch
Supports DC 48V-57V passive Power over Ethernet PoE switch
Supports DC 48V-57V passive Power over Ethernet PoE injector
The PoE extender/switch has 5 10/100/1000 Mbps PoE ports, with the Uplink port for PoE input (compliant with IEEE 802.3bt/802.3at/802.3af) and LAN1-LAN4 ports for PoE output (compliant with IEEE 802.3at/802.3af). All ports comply with 10/100/1000BASE-TX.
Specification
Support IEEE 802.3af/at/bt power supply
Support DC 5.5x2.1 port input power supply
DC Input Power Pin: positive inside (+), negative outside (-)
Support non-standard PoE 48-57V power supply
Uplink input power supply PoE pins: 1/2(+), 3/6(-), 4/5(+), 7/8(-)
LAN1-LAN4 output power supply PoE pins: 1/2(+), 3/6(-)
PoE total input power: 90 watts
PoE total output power: 72 watts
Maximum power output of a single PoE port: 25 watts
Transmission distance: 100-250m with Cat5e, Cat6, or higher
Ethernet speed: 10/100/1000 Mbps
Environment:
With 6 KV lightning protection isolation
International Protection Rating: IP50
Working temperature: -10 to 60 (14 to 140)
Storage temperature: -40 to 85 (-40 to 185)
Working humidity: 10% to 90% non-condensing
Storage humidity: 5% to 95% non-condensing
Dimensions: 8cm x 5cm x 2.2cm (3.15inches x 1.97inches x 0.87inches)
Product weight: 80g(approximately 2.82 ounces)
Item Included:
5-port GigabitPoE Passthrough Switchx1
==========
Battery Included : no
High-concerned chemical :
Package : Yes
5 Port(1 PoE in - 4 PoE Out)GigabitPoE Passthrough Switch
PoE Extender Cascade Repeater
Features:The PoE extender/switch does not require local power and is powered via the Uplink port PoE input.
Additionally, it supports DC power input: DC 12V-57V, 5.5x2.1mm DC port*Supports PoE++ (802.3bt) power input, with a maximum of 90 watts input, and a total power output of 72 watts for LAN1-LAN4 PoE.
Supports PoE+ (802.3at) output on LAN1-LAN4.
LAN1-LAN4 Ext mode: Maximum network cable length up to 250 meters, Ethernet speed: 10 Mbps**LAN1-LAN4 LAN mode: Maximum network cable length up to 100 meters, Ethernet speed: 1000 Mbps
Supports IEEE 802.3af/802.3at/802.3bt (maximum 90 watts) Power over Ethernet (PoE) switch
Supports DC 48V-57V passive Power over Ethernet PoE switch
Supports DC 48V-57V passive Power over Ethernet PoE injector
The PoE extender/switch has 5 10/100/1000 Mbps PoE ports, with the Uplink port for PoE input (compliant with IEEE 802.3bt/802.3at/802.3af) and LAN1-LAN4 ports for PoE output (compliant with IEEE 802.3at/802.3af). All ports comply with 10/100/1000BASE-TX.
Specification
Support IEEE 802.3af/at/bt power supply
Support DC 5.5x2.1 port input power supply
DC Input Power Pin: positive inside (+), negative outside (-)
Support non-standard PoE 48-57V power supply
Uplink input power supply PoE pins: 1/2(+), 3/6(-), 4/5(+), 7/8(-)
LAN1-LAN4 output power supply PoE pins: 1/2(+), 3/6(-)
PoE total input power: 90 watts
PoE total output power: 72 watts
Maximum power output of a single PoE port: 25 watts
Transmission distance: 100-250m with Cat5e, Cat6, or higher
Ethernet speed: 10/100/1000 Mbps
Environment:
With 6 KV lightning protection isolation
International Protection Rating: IP50
Working temperature: -10 to 60 (14 to 140)
Storage temperature: -40 to 85 (-40 to 185)
Working humidity: 10% to 90% non-condensing
Storage humidity: 5% to 95% non-condensing
Dimensions: 8cm x 5cm x 2.2cm (3.15inches x 1.97inches x 0.87inches)
Product weight: 80g(approximately 2.82 ounces)
Item Included:
5-port GigabitPoE Passthrough Switchx1
==========
Battery Included : no
High-concerned chemical :
Package : Yes
