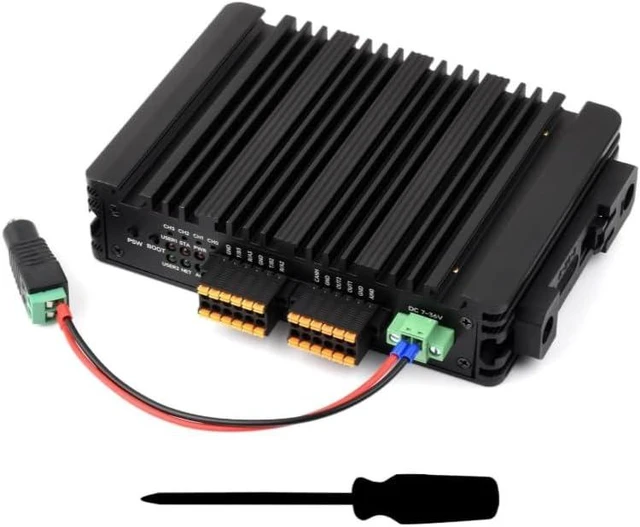

Main image of TUOPUONE Industrial Computer for Pi CM5 (NOT Included), 1000M Ethernet RJ45 Port, Onboard 2 × RS485 + 2 × RS232 interfaces

Alt view image 2 of 7 - TUOPUONE Industrial Computer for Pi CM5 (NOT Included), 1000M Ethernet RJ45 Port, Onboard 2 × RS485 + 2 × RS232 interfaces

Alt view image 3 of 7 - TUOPUONE Industrial Computer for Pi CM5 (NOT Included), 1000M Ethernet RJ45 Port, Onboard 2 × RS485 + 2 × RS232 interfaces

Alt view image 4 of 7 - TUOPUONE Industrial Computer for Pi CM5 (NOT Included), 1000M Ethernet RJ45 Port, Onboard 2 × RS485 + 2 × RS232 interfaces

Alt view image 5 of 7 - TUOPUONE Industrial Computer for Pi CM5 (NOT Included), 1000M Ethernet RJ45 Port, Onboard 2 × RS485 + 2 × RS232 interfaces

Alt view image 6 of 7 - TUOPUONE Industrial Computer for Pi CM5 (NOT Included), 1000M Ethernet RJ45 Port, Onboard 2 × RS485 + 2 × RS232 interfaces

Alt view image 7 of 7 - TUOPUONE Industrial Computer for Pi CM5 (NOT Included), 1000M Ethernet RJ45 Port, Onboard 2 × RS485 + 2 × RS232 interfaces

Shop All NShi Products | Visit XinjintongLimited Store

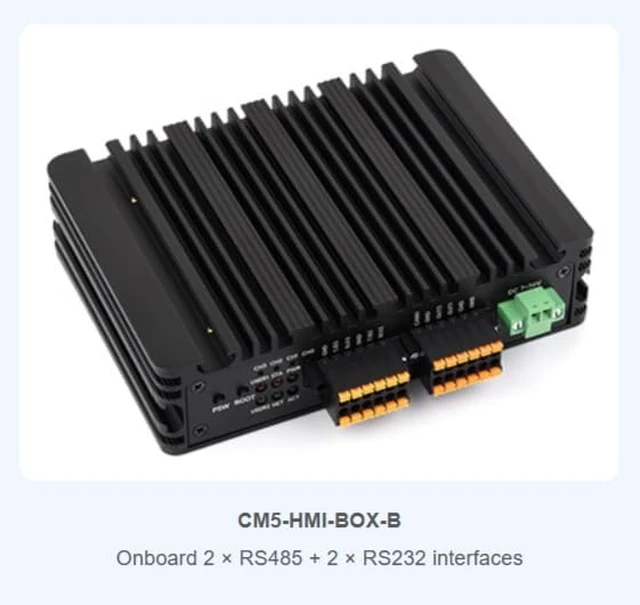

TUOPUONE Industrial Computer for Pi CM5 (NOT Included), 1000M Ethernet RJ45 Port, Onboard 2 × RS485 + 2 × RS232 interfaces

Be the first to review this product...

Connecting with Compute Module 5: standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module

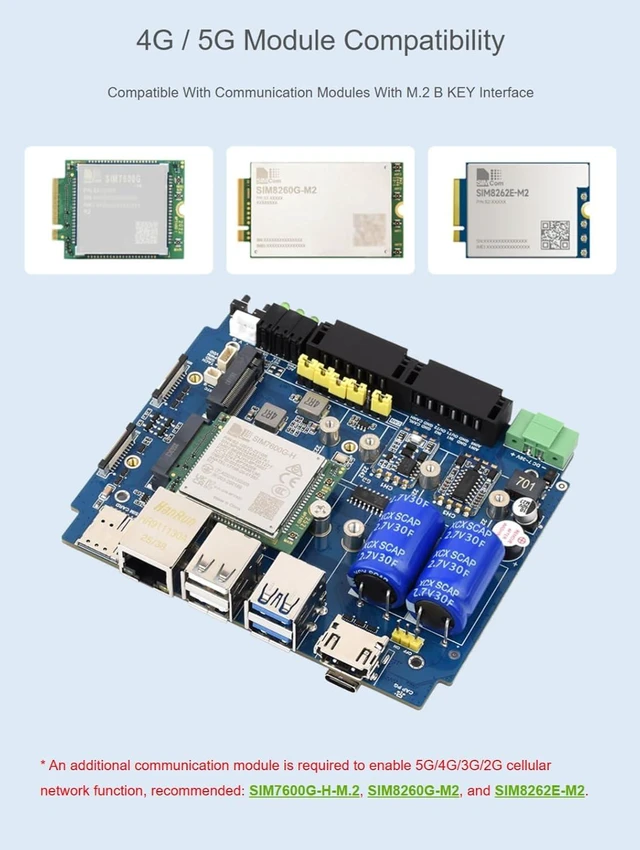

4G / 5G module compatibility: compatible with communication modules with M.2 B KEY interface
Precise cut-out with clear label: each cut-out is completely aligned with the connector
Supports Rail mounting and VASE mounting: Reserved Rail-mount buckle and VASE mounting holes for more convenient installations
Heat Dissipation Design:Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation

Overview

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Features At A Glance

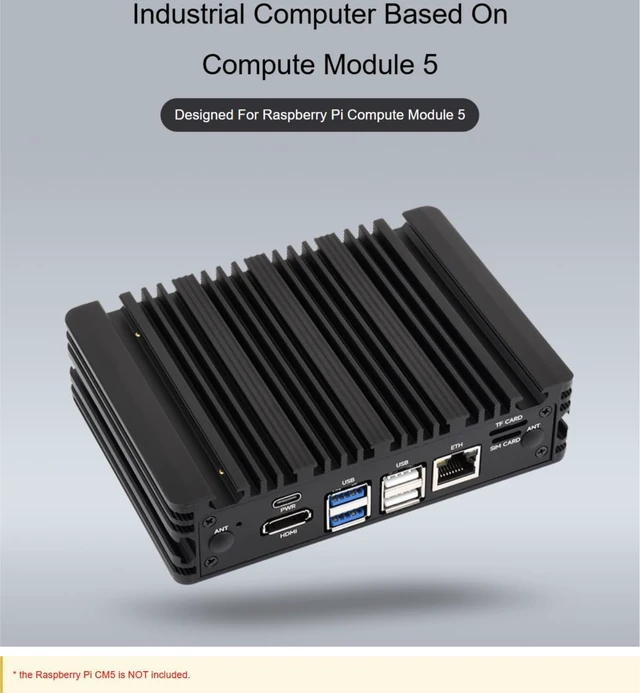

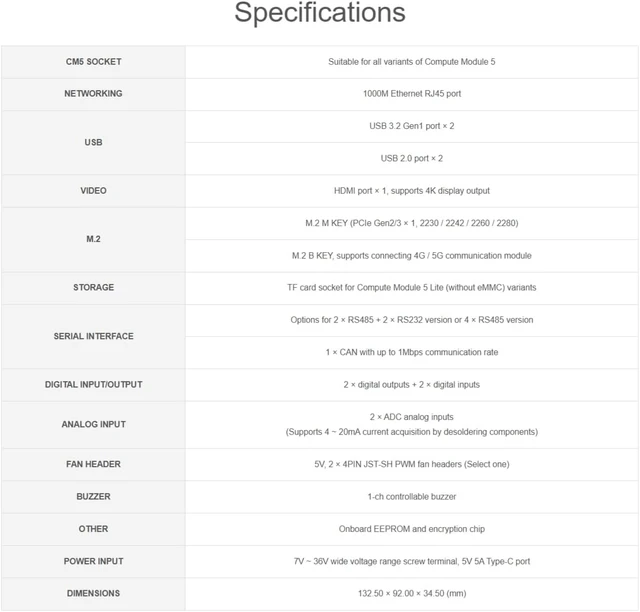

CM5HMIBOXA is industrialgrade computer enclosure designed for Pi Compute Module 5. (CM5 is not included.) Two version options are available: CM5HMIBOXA with 4channel RS485, CM5HMIBOXB with 2×RS485 plus 2×RS232.

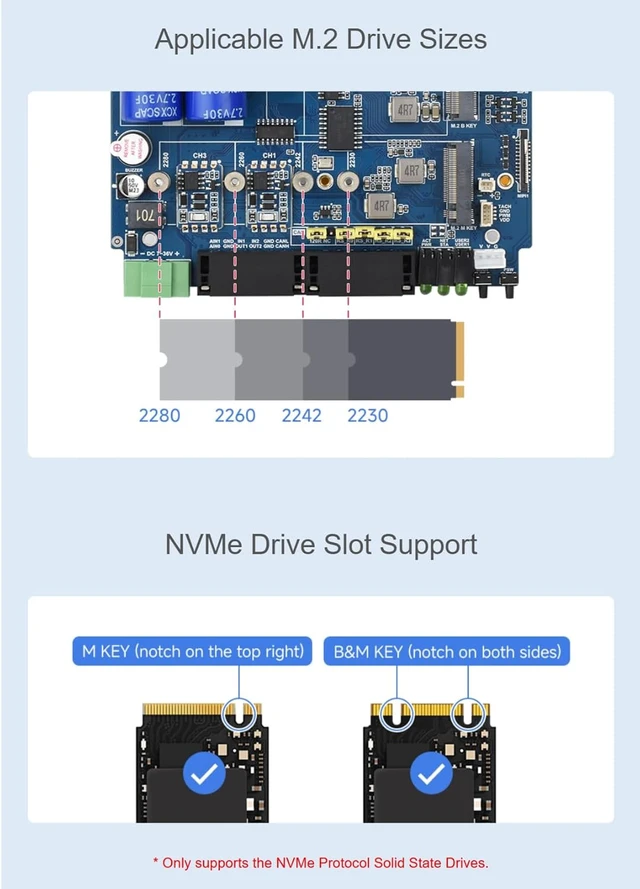

The aluminumalloy housing provides efficient heat dissipation. It comes with 1000M Gigabit Ethernet port, CAN bus interface, industrial serial interfaces, dual M.2 slots: M.2 MKEY for NVMe SSD boot, M.2 BKEY for 4G/5G cellular modules (4G/5G module sold separately). It carries digital I/O, ADC analog input, controllable buzzer, EEPROM and encryption chip, powerloss protection circuit.
Power options include DC 7V36V widevoltage screwterminal input and TypeC 5V5A input. Supports DINrail mounting and VESA installation. Equipped with HDMI 4K output, two USB3.2 Gen1 and two USB2.0 ports. TF socket is reserved for CM5Lite (noeMMC) module.
Perfect for industrial automation, remote data collection, industrial IoT gateway and edgecomputing applications.

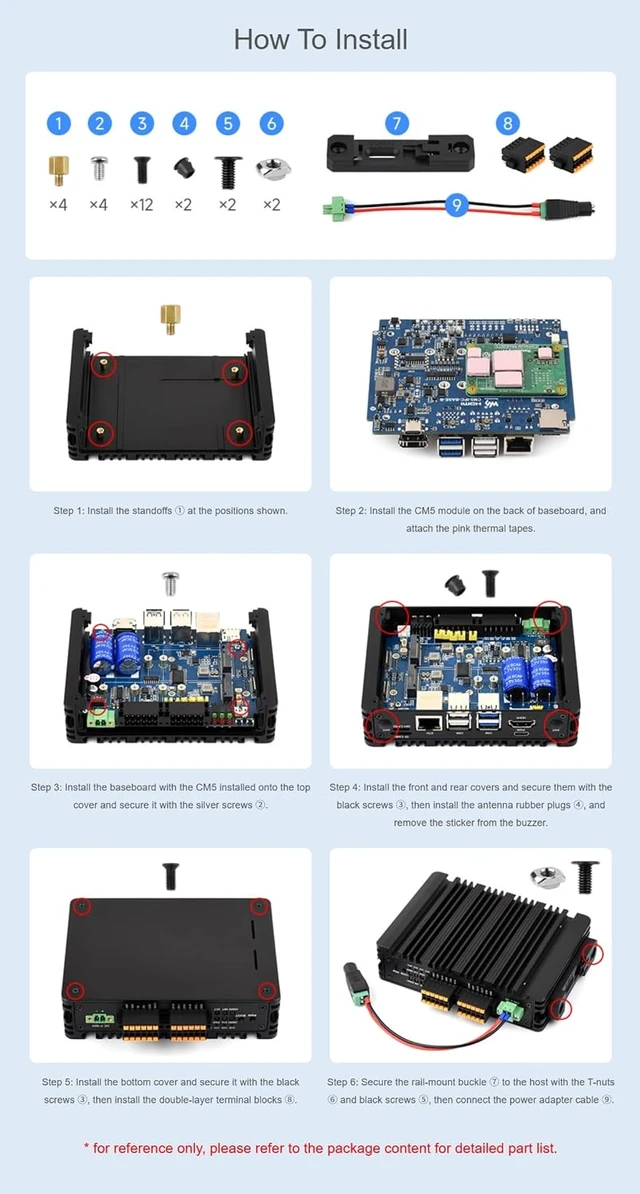

Package Content
IPCBOX-CM5-B
CM5-IPC-BASE-B-2RS485 baseboard x1
CM5-HMI-BOX-B metal case x1
Antenna rubber plug 6mm x2
2PIN 3.5mm pitch screw terminal x1
Power adapter cable 15cm x1
Rail-mount buckle x1
6PIN 3.5mm pitch double-layer terminal block (2PCS) x1
OPTIONS 12V 4A power x1
Pink thermal tapes x1
Screwdriver x1
Screws pack x1
