Industrial 2ch 2.5G PoE++ Injector DIN Rail Mount 802.3af/at/bt POE Adapter

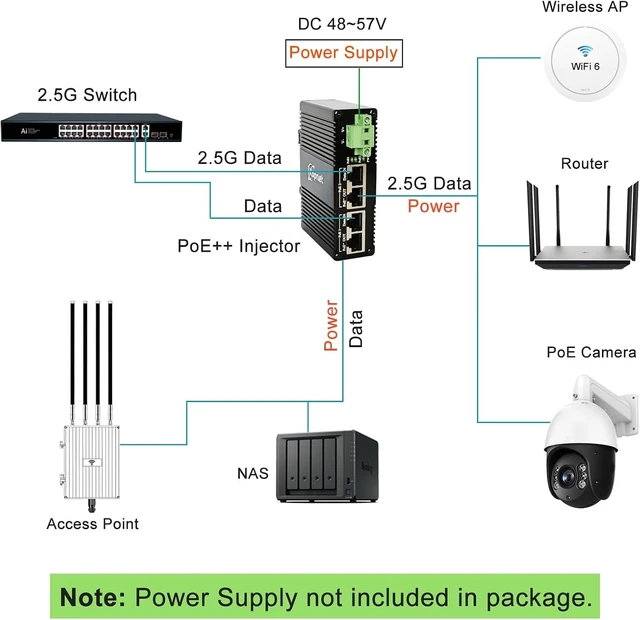

The KP-GYIJ2PT5G is a industrial 2.5 Gigabit PoE++ Injector. It allows you to connect two IEEE 802.3 at/bt PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000/2.5GBase-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at/bt.
The high power PoE adapter provides an integrated power solution with a wide range voltage of 12~48V DC. Thta means you have many choice for power supply. The Din rail Mount PoE Adapter also come with wall mount accessories, making it widely applicable in various fields such as smart grids, rail transportation, integrated pipe corridors, intelligent transportation, smart cities, mining and metallurgy, oil and petrochemicals, new energy, smart factories, ships, defense industry, and building security, providing favorable protection for industrial communication.
This Din Rail PoE Injector features a high-strength IP40 protective casing, industrial-grade EMC design, and surge protection design, use industrial garde components to enhance the reliability of communication networks.

12~48VDC Input
Operating temperature: -40°C to 75°C (-40°F to 167°F)
Supports 4kv Surge protection
Supports IEEE 802.3at/bt Power Sourcing Equipment
Supports 2.5GBase-TX
Support DIN-Rail & Wall-mount installation
The 2 ports 2.5Gb PoE injector support 12~48V DC Input Input and boost to 48V PoE output. It will solve the problem that you only have 12V or 24V centralized power supply.
The PoE Adapter can work when the actual voltage is 11V or above. While 12V battery working, the output voltage will drop slowly. And this means the PoE Injector will still works until the voltage drops to 11V, at this time the battery almost run out of power. The upper limit for DC input is 56V.

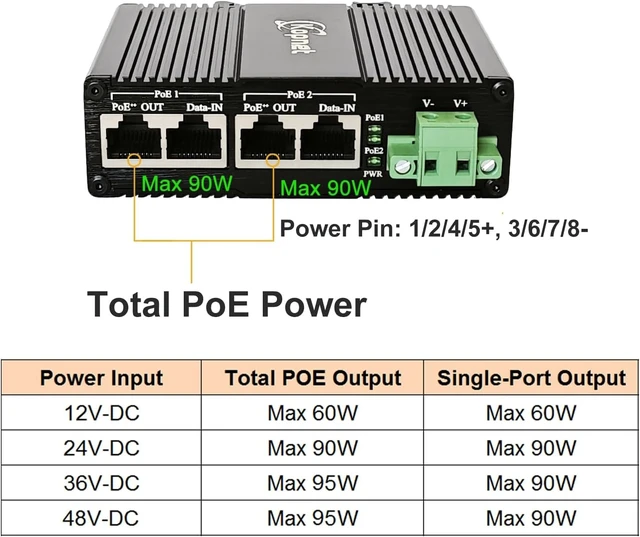

Note: Total PoE budget is 95W. Power supply not included in package.
This 2-port industrial-grade PoE injector supports two IEEE 802.3af/at/bt standard PoE powered devices, with each port supporting up to 90W. It includes two data input ports and two PoE output ports, allowing the simultaneous transmission of two different signals without interference. It is suitable for applications with multiple terminal devices.
This hardened PoE++ adapter features an internal lightning protection circuit design, using high-quality components such as voltage regulators, gas discharge tubes, and varistors. This enables the device to withstand induced voltages of up to 4kV, significantly enhancing its operational stability during thunderstorms and other adverse weather conditions, ensuring continuous and stable system performance.

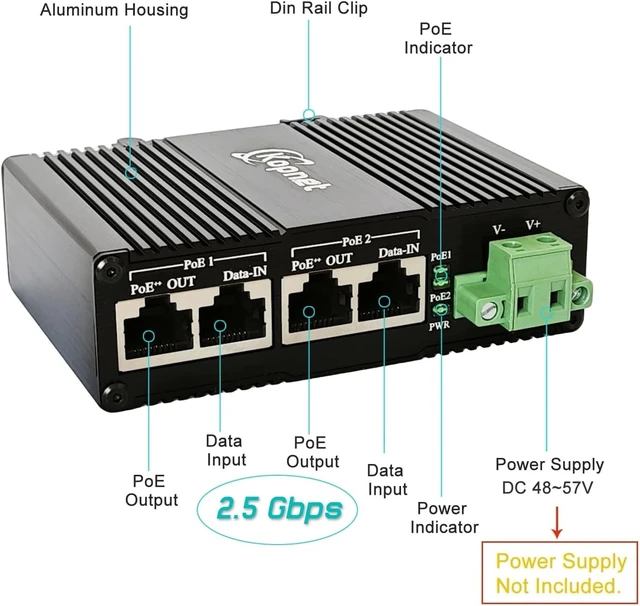

This 2 port rugged PoE injector features a compact design, with product dimensions of 3.93 x 2.76 x 1.18 inches, making it easy to install in confined spaces. It has a durable, corrosion-resistant anodized aluminum alloy casing that is tightly constructed to effectively prevent dust and foreign object intrusion. Additionally, it supports both DIN rail and wall mounting, offering more flexible installation options.
