Industrial 14-Port Gigabit PoE+ Switch, Hardened Network Switch with 8 x Gigabit PoE+ Ports, 4 x 1.25G SFP, 2 x 10G SFP+, 802.3af/at 30W, 240W Total Budget, Plug & Play, Supports 48-57V DC Input

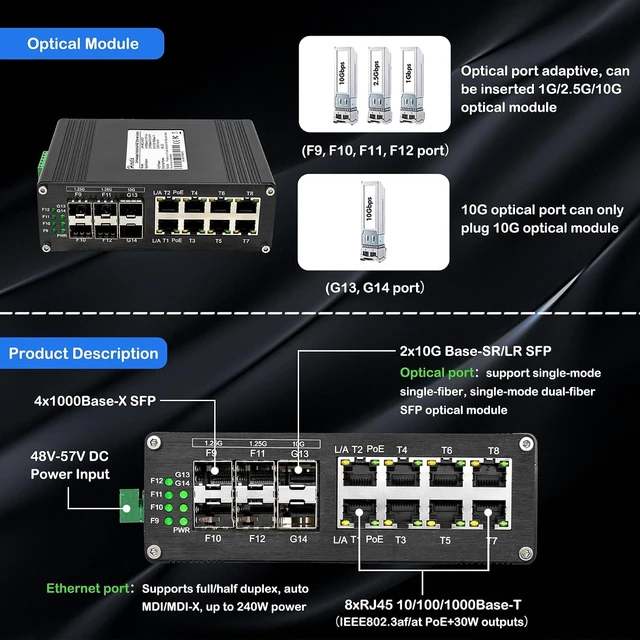

- Port Configuration: The hardened Ethernet SFP+ PoE Switch built-in 8 x 10/100/1000Base-T PoE+ ports, 4 x 1000Base-X SFP ports & 2 x 10G Base-SR/LR SFP+ ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2 x 10G Base-SR/LR ports supports SFP+ module. Support hot-plug and play.
- High Efficiency and Energy Saving: The Fiber Network Switch support 9K byte jumbo frame improve data transfer efficiency and IEEE 802.3az Energy Efficient Ethernet (EEE).
- Industrial Grade Quality: The Hardened Industrial Switch is made of Aluminum Case, Dustproof IP40. With reliable and simple operation against vibration and shock, and wide operation temperature range (- 40°F to 176 °F) for harsh environments.
- High PoE Power & Redundant Power Input: The Industrial Switch maximum support 240W PoE output , complaint IEEE 802.3af/at, each port max power supply reached 30W and Redundant Power Input
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

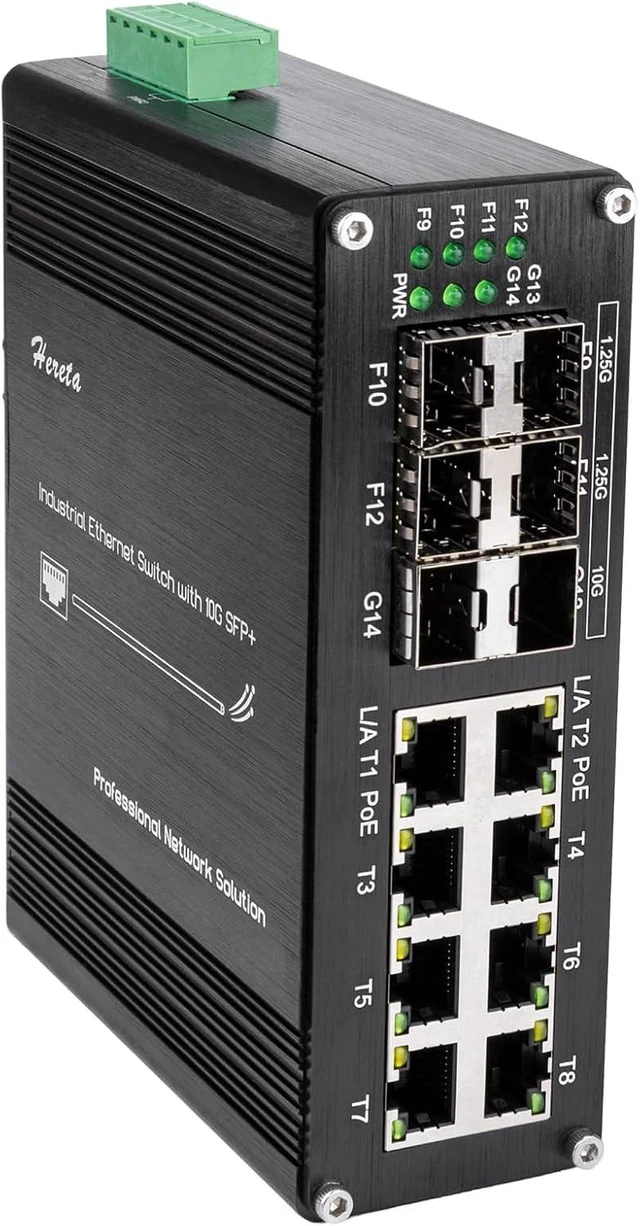

LNK-IMC2X4S8GP Series is 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection.
8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
IEEE802.3af/at compliant
Supports 802.3x Flow control
9K Bytes Jumbo Frame

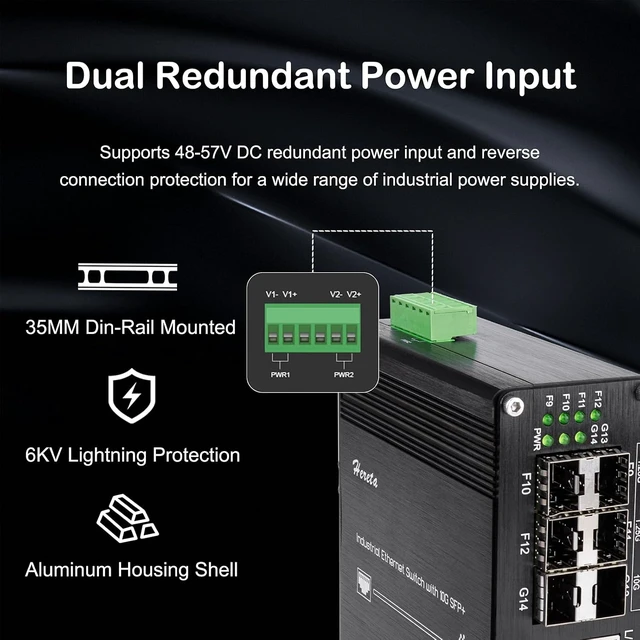

Redundant Power Inputs
IEEE 802.3az Energy Efficient Ethernet (EEE)
IP40 Aluminum Case
Supports DIN-Rail installation
-40°C to 80°C (-40°F to 176°F) operating temperature

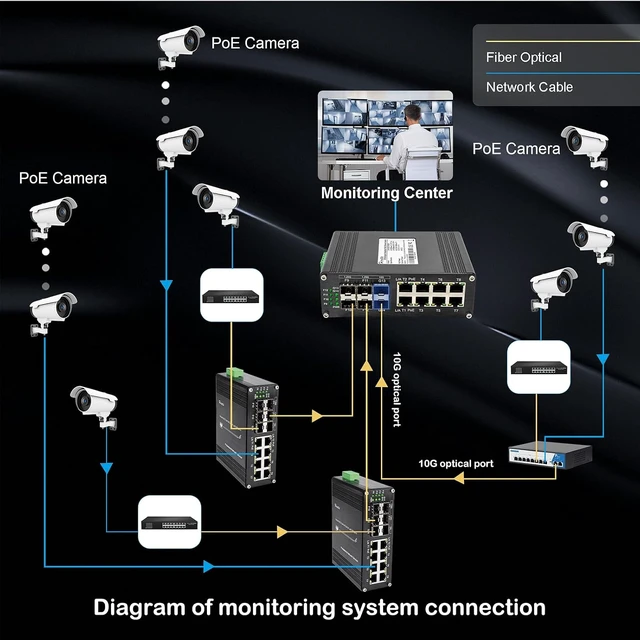

1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2 10G Base-SR/LR ports supports SFP+ module. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless AP between remote locations.

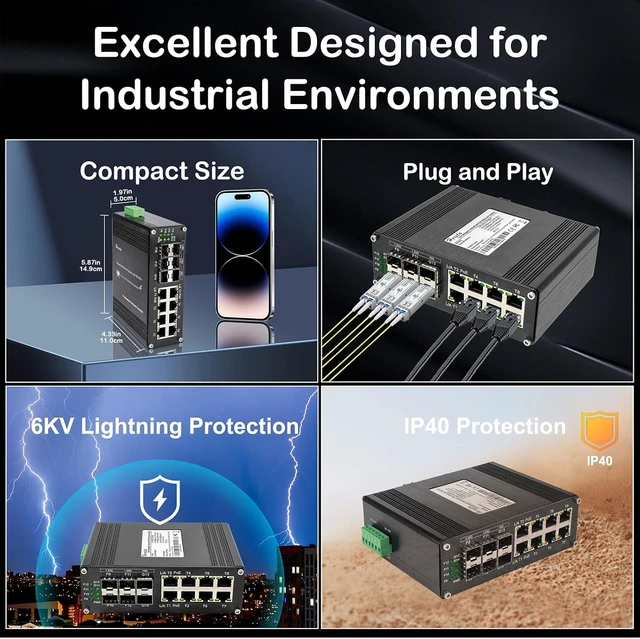

Size: 5.87 x 4.33 x 1.97inches, compact design saves space, which is particularly important for industrial environments with limited space.
No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.
35mm din-rail mounting bracket can install on universal din rail slot. Installation and disassembly are very simple.
6KV lightning protection make the Ethernet Optic Switch can adapt to various harsh environments.
The Hardened Industrial Switch is made of Aluminum Case, with efficient heat dissipation can work in a wide temperature range from -40 to 80.
The Gigabit PoE+ Switch is equipped with a rugged IP40 rated enclosure and designed to dustproof.
With its reliable design and easy to use, the gigabit PoE Switch is a great choice for integrating networks consisting of network devices such as IP cameras, router, gaming console, printer and so on.
Application Area : New Energy, Urban Transportation, Server Room, Industrial Automation and so on.
14 Ports Ethernet Switch
8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
IEEE802.3af/at compliant
Supports 802.3x Flow control
9K Bytes Jumbo Frame
Redundant Power Inputs
IEEE 802.3az Energy Efficient Ethernet (EEE)
IP40 Aluminum Case
Supports DIN-Rail installation
-40°C to 80°C (-40°F to 176°F) operating temperature
1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2 10G Base-SR/LR ports supports SFP+ module. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless AP between remote locations.
Size: 5.87 x 4.33 x 1.97inches, compact design saves space, which is particularly important for industrial environments with limited space.
No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.
35mm din-rail mounting bracket can install on universal din rail slot. Installation and disassembly are very simple.
6KV lightning protection make the Ethernet Optic Switch can adapt to various harsh environments.
The Hardened Industrial Switch is made of Aluminum Case, with efficient heat dissipation can work in a wide temperature range from -40 to 80.
The Gigabit PoE+ Switch is equipped with a rugged IP40 rated enclosure and designed to dustproof.
With its reliable design and easy to use, the gigabit PoE Switch is a great choice for integrating networks consisting of network devices such as IP cameras, router, gaming console, printer and so on.
Application Area : New Energy, Urban Transportation, Server Room, Industrial Automation and so on.
14 Ports Ethernet Switch
