Lora FMS Star Networking Modem 470MHz E53-GW(470FMS22R) 22dbm Ad Hoc Network Long Distance 3KM Low Power Up to 1200 Nodes

Be the first to review this product...

Using the latest LoRa technology, it has a longer distance and more powerful performance than traditional LoRa data transmission radios;Adopts military-grade LoRa modulation technology and has data encryption;Ultra-large network capacity, the gateway can connect up to 1,200 nodes;Self-organizing network, you only need to add the node EUI to the gateway to implement the network, and the node will automatically join the network after being powered on;

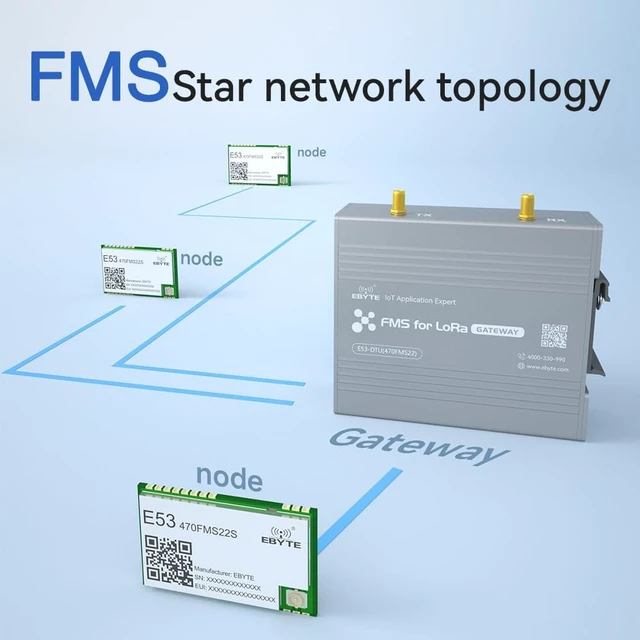

Star networking: The gateway connects multiple node modules to achieve a star network topology;Network self-healing: the module automatically joins the network after returning to normal working status;Relay networking: The FMS network can expand the communication range by adding slave gateways, thereby realizing relay networking applications;Dynamic indication of environmental field strength and dynamic indication of data packet RSSI;
Configurable gateway type: The gateway can be configured as a master gateway and a slave gateway. The

Overview

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

E53-470FMS22S and E53-GW(470FMS22R) are Facilities Monitoring System wireless transmission modules and gateways
developed based on LoRa spread spectrum technology . Their strong anti-interference capabilities make wireless communications more stable and reliable in industrial sites . At the same time, the equipment monitoring system supports ultra-large network capacity, and the gateway can access up to 1,200 nodes .
The FMS gateway device adopts a multi-channel design of 4RX+1TX to achieve FDD duplex communication. The FMS system has a frequency range of 470-490MHz for RF reception and a frequency range of 500MHz to 510MHz for RF transmission. The wireless transmission module and gateway of the Facilities Monitoring System are suitable for large-scale IoT application scenarios such as smart homes, intelligent buildings, security systems, photovoltaics, logistics, etc..
