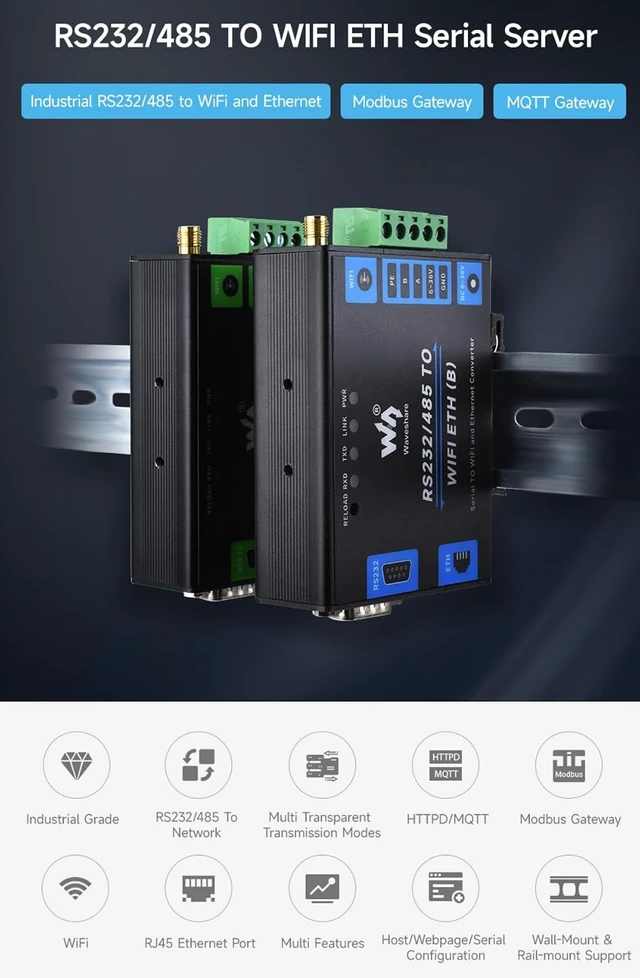

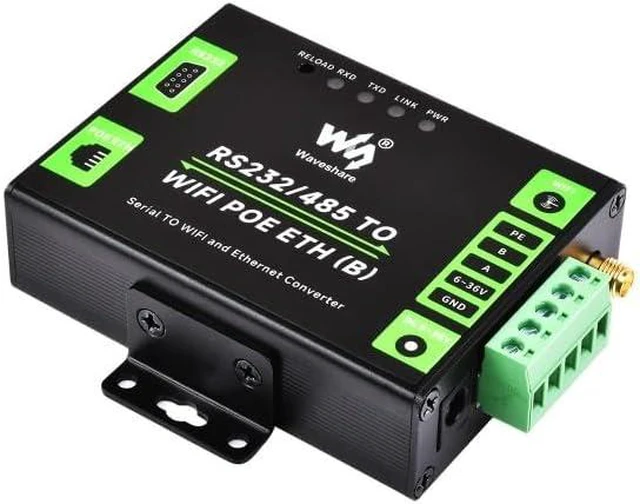

Industrial Grade Serial Server RS232/485 to WiFi and Ethernet Modbus Gateway MQTT Gateway Metal Case with RJ45 Network Port with PoE Support

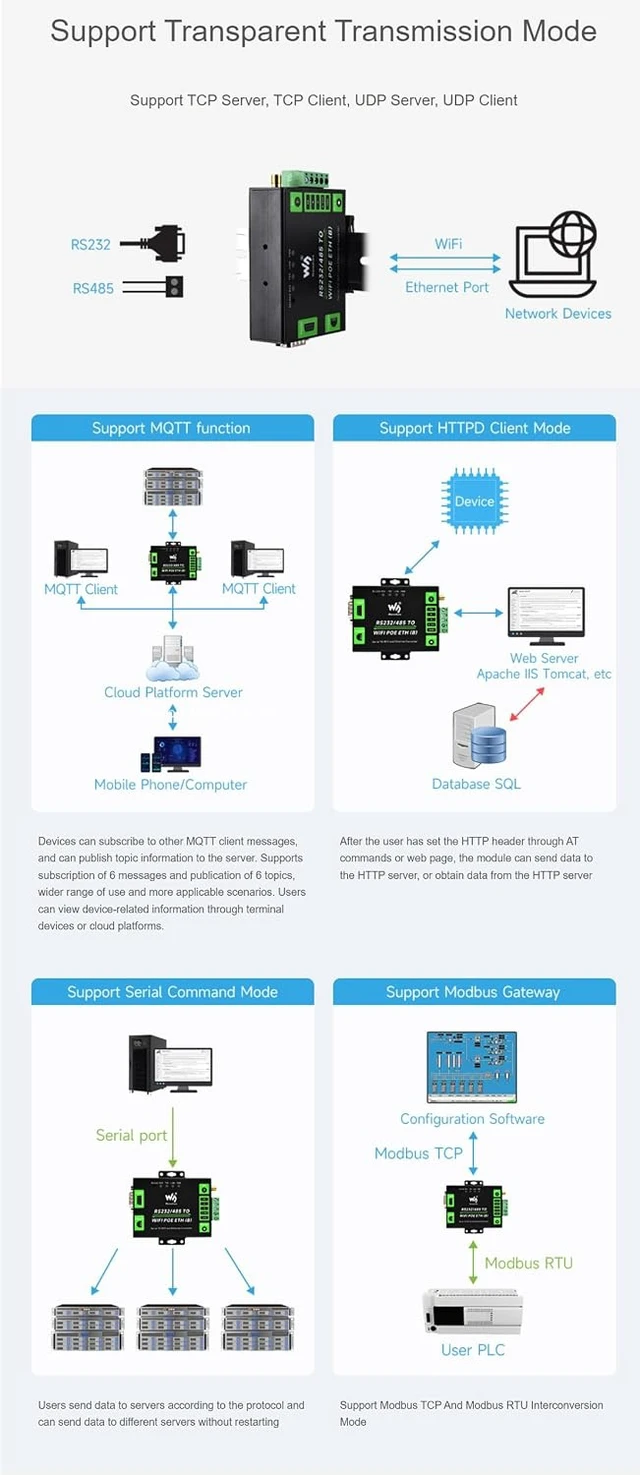

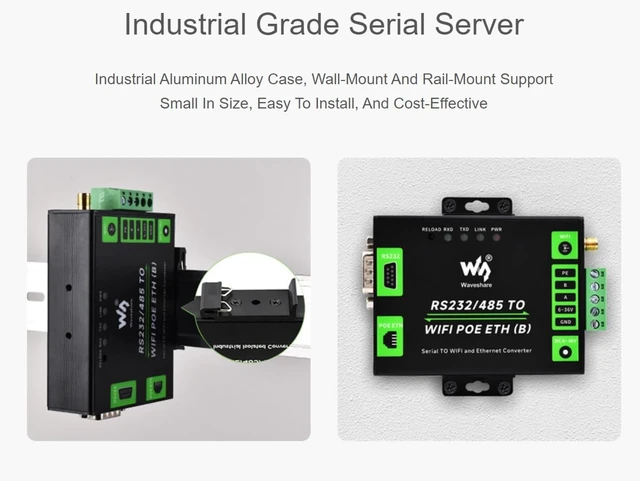

This is an RS232/485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Onboard multiple power supply interfaces, supports 6~36V wide range power supply, and PoE function optional. Industrial grade metal case design, supports wall-mount and rail-mount installations, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
RJ45 network port

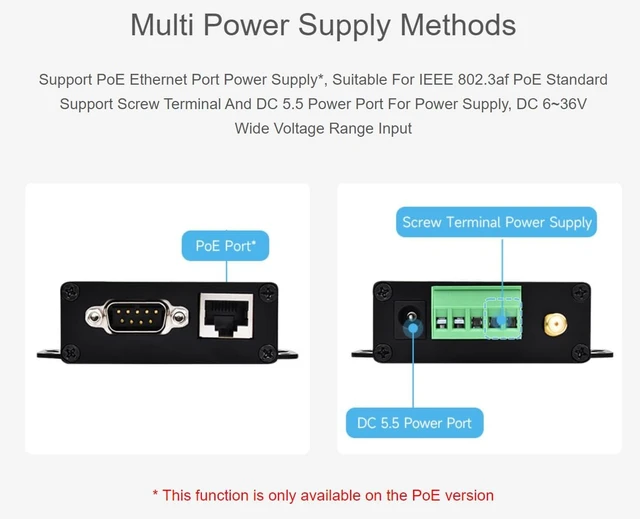

RJ45 network port with PoE support

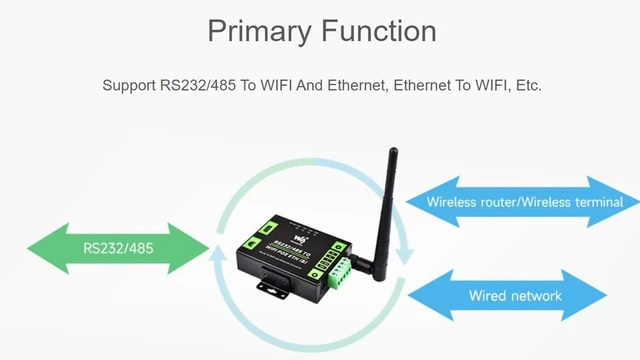

Support RS232/485 To WIFI And Ethernet, Ethernet To WIFI, Etc.

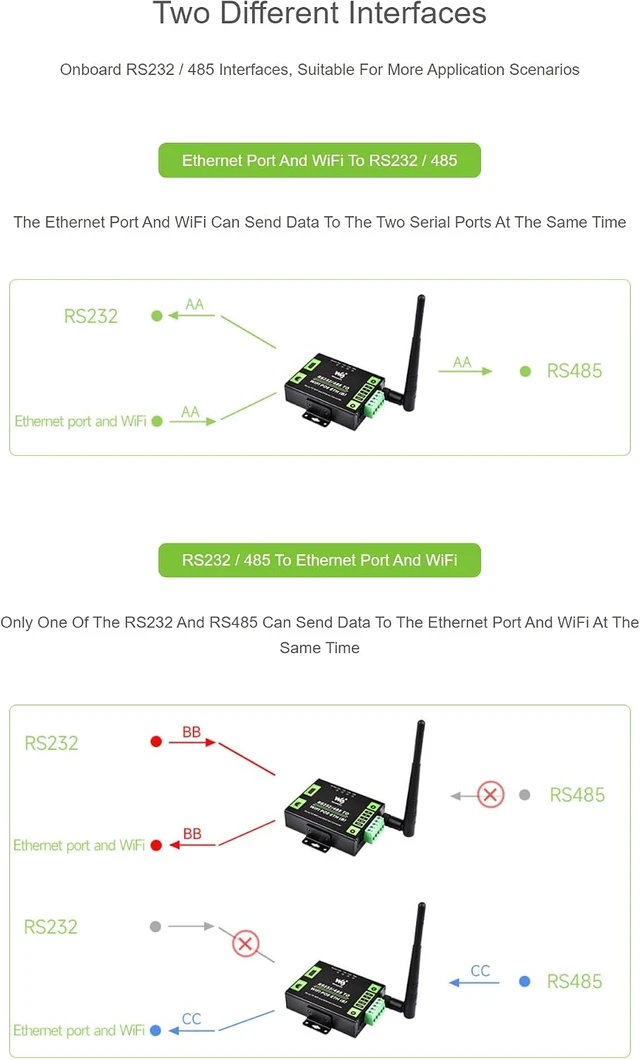

Only One Of The RS232 And RS485 Can Send Data To The Ethernet Port And WiFi At The Same Time

Ethernet:10 / 100M auto-negotiation RJ45 connector
UART:RS232 (ESD/EFT) RS485 (ESD/EFT/surge protection)
Frequency Band: 2.412~2.484GHz
Wireless network: Station / AP / AP+Station Mode
Security mechanism: WPA-PSK / WPA2-PSK
Encryption type: TKIP / AES
Baudrate: 300~460800bps
Flow control: RTS/CTS flow control
Operating temperature: -40~85
Humidity range: 5%~95% relative humidity
Industrial Grade Serial Server RS232/485 To WiFi And Ethernet, Modbus Gateway, MQTT Gateway, Metal Case, Wail-Mount And Rail-Mount Support Features Version Options RS232/485 TO WIFI ETH (B) RS232/485 TO WIFI POE ETH (B) Primary Function RS232 / 485 To Ethernet Port And WiFi Interface Introduction Support Multi Wired Networking Methods Dimensions Specification
