3G 4G LTE Indoor Outdoor Wide Band MIMO Antenna for Peplink Pepwave MAX BR1 Router 3G 4G Modem

This is a discreet high quality omni-directional MIMO antenna,designed for sending and receiving 2G,3G and 4G signals . Typical applications include strengthening communication and increasing the data transfer speed in the 3G and 4G band.

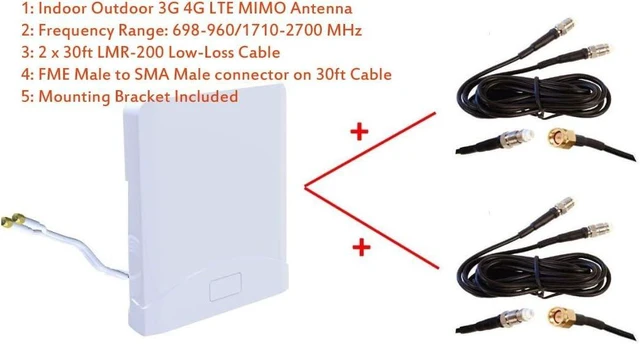

The package contains 1 wide band MIMO Antenna with 2 x 30ft cable which has SMA Male connector for Pepwave MAX BR1 Router 3G 4G Modem and mounting hardware

700MHz-2700MHz MIMO Antenna

* Frequency Range (MHz): 698-960/1710-2700 MHz
* Input Impedance () 50
* Gain(dBi) dB 4/7
* VSWR: <= 2/2.5
* Polarization Antenna 1:Vertical Antenna 2:Horizontal
* Radiation Pattern (): 360/120
* Isolation between ports (dB) 20
* Max, power (W) 100
* Cable Type: LMR-200
* Cable Length on Antenna: 14 inch
* Connector Type FME-male
* Lightning Protection DC ground
* Dimension (mm) 220x200x70
* Weight (kg) 0.6
* Rated Wind Velocity (km/h) 150
* Plastic material Protected ABS
* Mounting way: Wall mount / mast mount / desk mount
* Working Temperature(): -40 to +60/40 to +60
* Extension Cable: 2 x 30ft LMR200 Low-Loss Cable
* Extension Cable connector: FME Female to SMA Male

The full band MIMO antenna provides an innovative and future proof solution for 2G / 3G and 4G networks. Incorporating two separately fed ultra wideband elements in a single housing the antenna is equipped to provide client side MiMo and diversity support for the networks of today and tomorrow.
