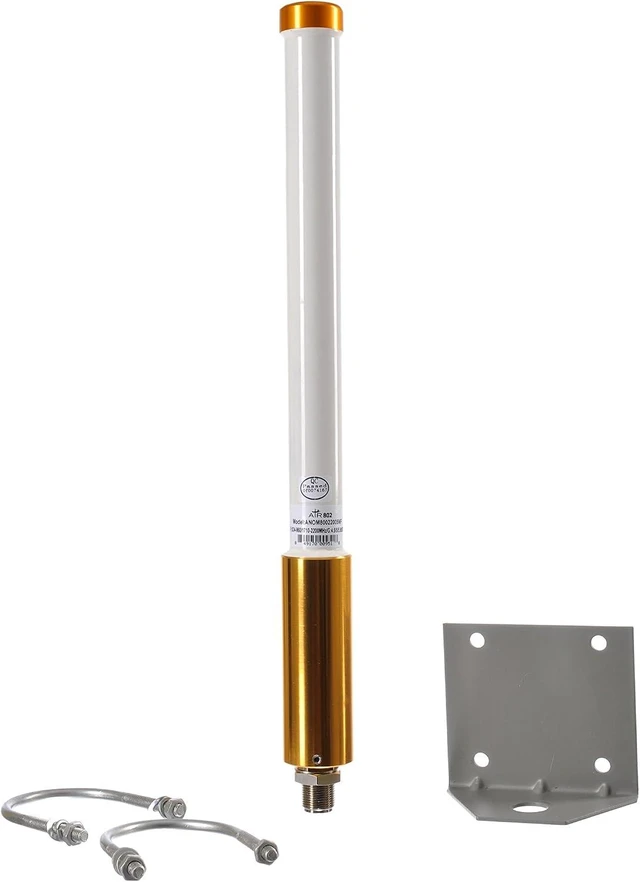

Dual or Multi-Band Cellular Omni-Directional Antenna, 5 dBi Gain, N Jack-Female for 824 to 960, 1710 to 1990 and 1900 to 2200 MHz

AIR802 model ANOM80022005NF is a dual or multi band frequency omni-directional antenna for 800, 900, 1700, 1800, 1900 and 2200 MHz cellular applications.This antenna has a N type jack-female connector and includes a mounting bracket and U-bolts for use with a mast or tower. Alternatively the mounting bracket may be used without the U-bolts and mounted at the top of a wall or on a beam.
SPECIFICATIONS:
Frequency: 824 to 960, 1710 to 1990 and 1990 to 2200 MHz
Gain: 4.5 dBi at 824-960 MHz, 5 dBi at 1710-1990 and 5.5 dBi at 1990-2200 MHz
VSWR: 2.0
Polarization: Vertical
Vertical Beamwidth: 38° @ 824-960 MHz, 35° @ 1710-1990 MHz and 28° @ 1990-2200 MHz
Horizontal Beamwidth: 360°
Impedance: 50 Ohms
Maximum Input Power: 100 watts
Weight: 13.7 ounces (390 grams) *not including bracket
Dimensions: 1.29 x 14.37 inches (33 x 365 mm)
Connector: N Jack-Female
Mast Diameter: 1.5 to 2 inches (40 to 50 mm)
