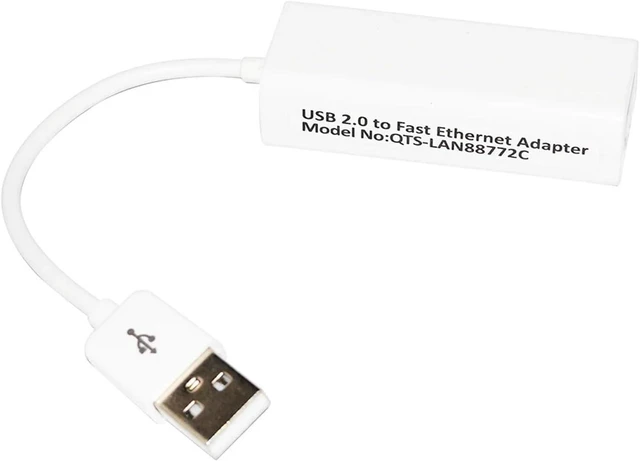

10/100M ASIX AX88772C CHIP USB 2.0 ETHERNET Adapter Network Card USB 2.0 to RJ45 LAN GIGABIT Internet Adapter Converter for PC(USB to RJ45)

Cables
10/100M ASIX AX88772C CHIP USB 2.0 ETHERNET ADAPTER NETWORK CARD USB 2.0 TO RJ45 LAN GIGABIT INTERNET ADAPTER CONVERTER FOR Computer Macbook Laptop Desktop with RJ45 EXTENSIONE CABLE
Description:
Product Name: USB line card
Product role: Through the USB interface, it can be directly inserted into the cable to achieve wired Internet access.
Features:
No need to open the chassis to install, directly insert the USB interface
Available on desktops and laptops
Compact and easy to carry
10/100M network automatic identification
Easy to install
Hot-swappable
Compatible with USB2.0/1.1/1.0 standard
Compatible with IEEE 802.3u 100BASE-TX and IEEE 802.3 10BASE-T Standards
Support USB full speed and high speed transmission
Supports 10/100Mbps, full duplex/half duplex automatic detection
Support full-duplex IEEE802.3X flow control mode
LED indicator shows working status and port connection
Supports Windows 98SE.2000.ME.XP (32-bit, 64-bit), VISTA (32-bit, 64-bit)/win7 (32-bit, 64-bit)/CE (4.2.5.0.6.2)
Interface Type: USB 2.0 Full Speed
Support Agreement: IEEE 802.3u Standard
Operating frequency: 48MHz/125MHz
Working temperature: -25°C-+70°C
Connection rate: 10M/100Mbps
Storage temperature: -40~85°C
Relative humidity: 10%~80% (non-condensing)
Operating voltage: 4.2-5.5V
Body size: 68*21.3*19.2(mm)
Transmission rate: The actual transmission rate depends on the condition of the service provider, up to 800Kbps
Power Supply: 1W
Working current: 180MA/5V
Specifications:
Product Name: USB line card
Product role: Through the USB interface, it can be directly inserted into the cable to achieve wired Internet access.
Features:
No need to open the chassis to install, directly insert the USB interface
Available on desktops and laptops
Compact and easy to carry
10/100M network automatic identification
No need to installdriver
Compatible with USB3.0/2.0/1.1/1.0 standard
Compatible with IEEE 802.3u 100BASE-TX and IEEE 802.3 10BASE-T Standards
Support USB 2.0 full speed and high speed transmission
Supports 10/100Mbps, full duplex/half duplex automatic detection
Support full-duplex IEEE802.3X flow control mode
Supports Windows 98SE.2000.ME.XP (32-bit, 64-bit), VISTA (32-bit, 64-bit)/win7 (32-bit, 64-bit)/CE (4.2.5.0.6.2)
Package Contents:
1 x USB to Ethernet Lan RJ45 Network Card (with RJ45 Extension Cable)
Length: 0.1M

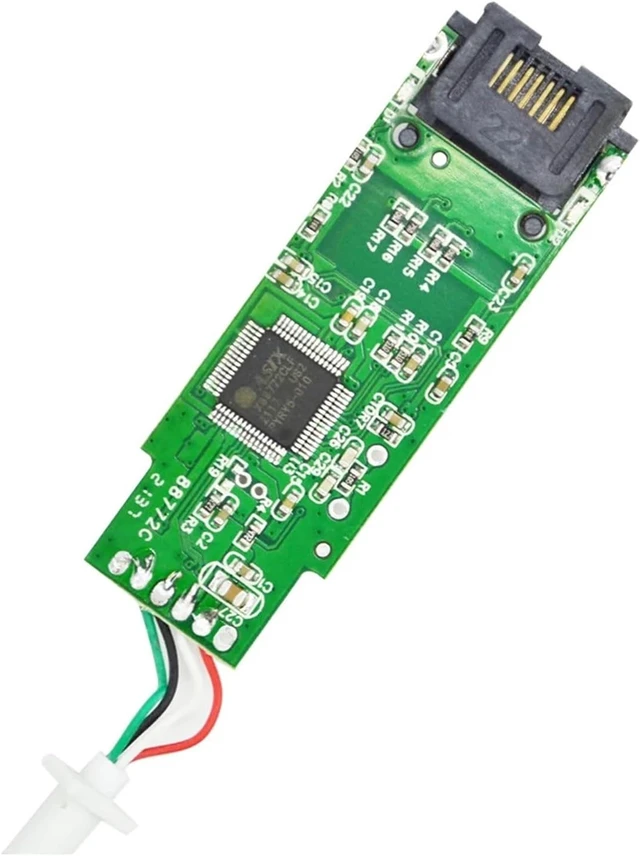

About ASIX AX88772C chip (which is better than the KY-RD9700 chip in the capability and stability)
AX88782 -- Non-PCI 8/16-bit 2-Port 10/100M Fast Ethernet Controller
The AX88782 is a single-chip 2-port 10/100M Ethernet Switch controllers featuring a 3-port switching fabric with QoS priority management, three 10/100M MACs, two 10/100M PHYs, and 8/16-bit Non-PCI host interface. The AX88782 supports checksum offload engine and burst-mode access making it easy to provide a high performance 2-port Ethernet connectivity solution for any embedded MCU. The built-in switching fabric in the AX88782 supports non-blocking wire-speed forwarding and offers an advanced switch feature set that includes
tag/port-based VLAN, spanning tree, rate control, port security, port mirroring, IGMP snooping, MIB counters and four priority queues for QoS functions including Port-Based, 802.1p VLAN, IPv4 TOS and IPv6 COS to prioritize , video, audio and data traffic delivery.
The AX88782 have integrated a voltage regulator and provide support for programmable I/O voltage options of 3.3V/2.5V/1.8V to enable a highly optimized system design. As semiconductor designs migrate to advanced process geometries like 90nm, 65nm, 45nm and beyond, many of today's higher performance , SoCs and FPGAs require lower I/O voltages.
==========
Model Number : RX-USB-ADPT-003
Type : USB Adapter
