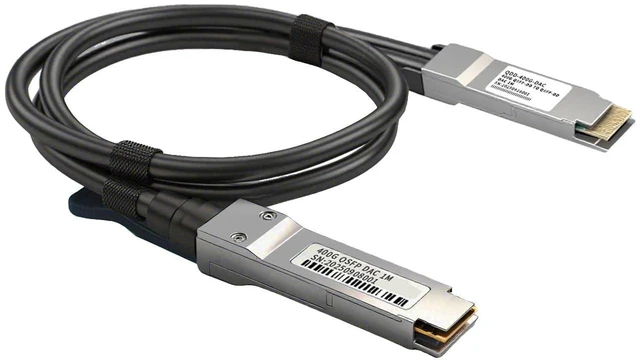

Main image of 400G OSFP Flat-Top to QSFP-DD DAC Cable, 1m/3.3ft Passive Copper Twinax, 4x100G PAM4 Ethernet Direct Attach Cable for Switches, Servers and NICs only Compatible with NVIDIA/Mellanox (Ethernet)

Shop All NShi Products | Visit XinjintongLimited Store

400G OSFP Flat-Top to QSFP-DD DAC Cable, 1m/3.3ft Passive Copper Twinax, 4x100G PAM4 Ethernet Direct Attach Cable for Switches, Servers and NICs only Compatible with NVIDIA/Mellanox (Ethernet)

Be the first to review this product...

OSFP TO QSFP-DD CONNECTION Provides a direct 400Gbps copper connection between one compatible OSFP Flat-Top port and one compatible QSFP-DD port, allowing mixed-form-factor switches, servers and network adapters to communicate within the same rack.
FLAT-TOP OSFP CONNECTOR The OSFP end uses the Flat-Top/RHS form factor designed for equipment with a riding heat sink built into the host cage. It is not the Finned-Top OSFP version commonly used in equipment requiring a connector with an integrated external heat sink.
4×100G PAM4 SIGNALING Designed for compatible 400GAUI-4 equipment using four 100G PAM4 electrical lanes. Both connected devices must support the same 4×100G PAM4 host interface; this passive cable cannot convert between 4×100G and 8×50G electrical modes.
PASSIVE COPPER DESIGN The 1m/3.3ft twinax construction provides a short-range, low-latency 400G connection without separate optical transceivers or external power, reducing power consumption and deployment cost.
V

Overview

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

400G OSFP Flat-Top to QSFP-DD passive DAC provides a short-distance copper connection between compatible 400G devices using different physical port formats. One end features an OSFP Flat-Top/RHS connector, while the other end features a QSFP-DD connector. The cable is designed for compatible switches, servers and network interface cards operating with a 4×100G PAM4 electrical architecture. Its passive twinax construction eliminates the need for separate optical modules, fiber jumpers or external power, making it suitable for connections within the same data-center rack. Specifications: Connector A: 1× 400G OSFP Flat-Top/RHS Connector B: 1× 400G QSFP-DD Maximum Aggregate Data Rate: 400Gbps Electrical Architecture: 4×100G PAM4 Cable Type: Passive Direct Attach Copper Cable Construction: Twinax Copper Length: 1m / 3.3ft Application: 400 Gigabit Ethernet

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by XinjintongLimited Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIC6W6M9B5701
