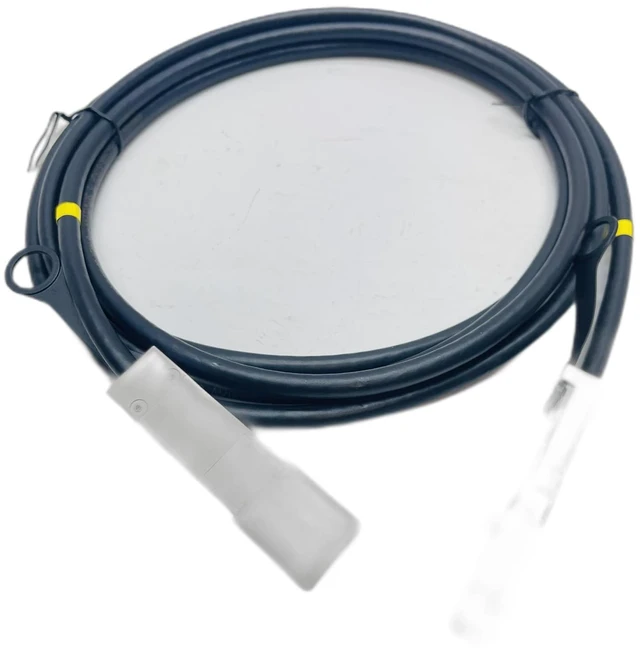

Nengine for Brocade 58-0000042-01 QSFP+ Direct Attach Copper Cable, 40Gb/s 3-Meter SFP+ DAC Twinax Cable, Passive,QSFP-40G-DAC-30

Nengine for Brocade 58-0000042-01 QSFP+ Direct Attach Copper Cable, 40Gb/s 3-Meter SFP+ DAC Twinax Cable, Passive,QSFP-40G-DAC

1. Applications

10 Gigabit Ethernet 4

0 Gigabit Ethernet

InfiniBand4x SDR, DDR, QDR

2, 4, 8, 10 Gigabit Fiber Channel

Fiber Channel over EthernetSAS,Servers,Hubs,Switches,Routers

QSFP+ DAC, 40G DAC, DAC Cable

2. Features

QSFP+ conforms to the Small Form Factor SFF-8436

4-Channel Full-Duplex Passive Copper Cable Transceiver

Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)

Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)

Copper link length up to 5m (passive limiting)

High-Density QSFP 38-PIN Connector

Power Supply :+3.3V

Low power consumption: 0.02 W (typ.)

I2C based two-wire serial interface for EEPROM signature which can be customized

Temperature Range: 0~ 70 °C

3. Description

NEM Engines 40G QSFP+ Passive Copper Cables are high performancecost effective I/O solutions for 40G LAN, HPC and SAN applications. The QSFP+ passive copper cables are compliant with SFF-8436, QSFP+ MSA and IEEE P802.3ba 40GBASE-CR4. It is offer a low power consumptionshort reach intercon- nect applications.
NEM Engines40G QSFP+ Passive Copper Cbales are customized for an ultra-high performance, cost effective cable solution in 40-Gigabit speed applications including switched fabric I/O, switches, routers, data storage arrays, and high performance computer (HPC) clusters.
