CX516A Dual 100Gb/s QSFP28 Ports Intelligent RDMA Ethernet Adapter for Web 2.0, Cloud and Storage Servers, Mellanox ConnectX-5 EX MT28808A0 Ethernet Controller, 2X 100GbE PCIE Gen 4.0 x16 NIC Card

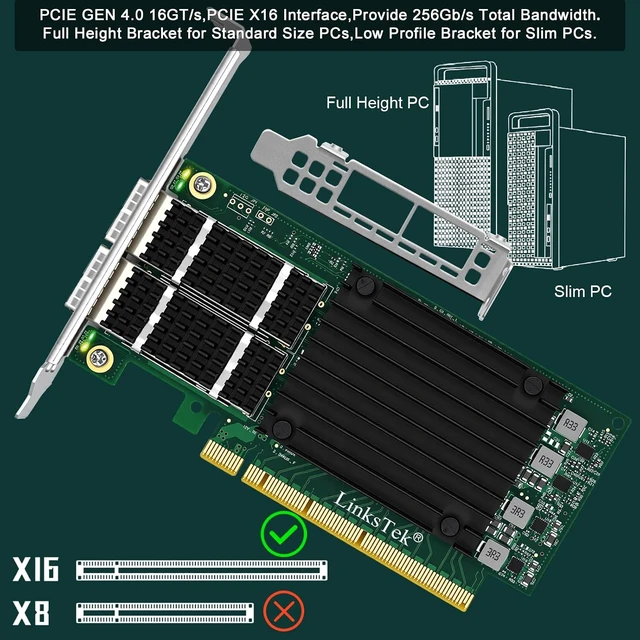

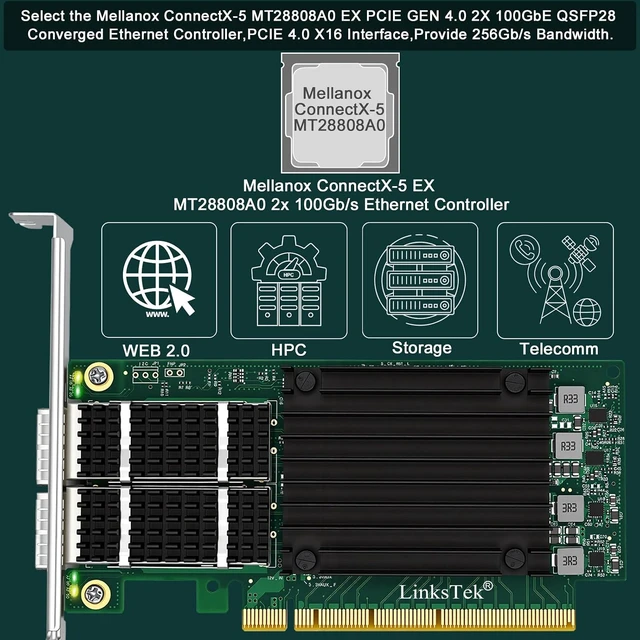

CX516A is a PCIE Gen 4.0 x16 to dual 100GbE QSFP28 fiber ports intelligent RDMA Ethernet adapter. Operating at the PCIE Gen 4.0 standard with a PCIE x16 interface, it delivers a total bandwidth of 256Gb/s, ensuring both QSFP28 fiber ports achieve 100GbE network connectivity simultaneously. Based on the Mellanox ConnectX-5 EX MT28808A0 converged Ethernet controller, it provides dual 100GbE network connections with advanced application offload capabilities for Web 2.0, cloud, storage and telco servers.
ATTENTION: The Linkstek CX516A serves as a drop-in alternative to the MCX516A-CDAT for server applications.
CX516A is a PCIE Gen 4.0 x16 to dual 100GbE QSFP28 fiber ports intelligent RDMA Ethernet adapter. Operating at the PCIE Gen 4.0 standard with a PCIE x16 interface, it delivers a total bandwidth of 256Gb/s, ensuring both QSFP28 fiber ports achieve 100GbE network connectivity simultaneously. Based on the Mellanox ConnectX-5 EX MT28808A0 converged Ethernet controller, it provides dual 100GbE network connections with advanced application offload capabilities for Web 2.0, cloud, storage and telco servers. It supports I/O virtualization with SR-IOV technology, providing dedicated adapter resources and guaranteed isolation and protection for virtual machines (VMs) within the server. It also supports Network Function Virtualization, allowing a VM to act as a virtual appliance. Full data path operation offloading, hairpin hardware capabilities and service chaining enable data to be processed by the virtual appliance with minimal CPU utilization. It supports overlay networks including VXLAN, NVGRE, MPLS, GENEVE and NSH. In addition, it supports RDMA over Converged Ethernet (RoCE), delivering efficient low-latency and high-performance RDMA services that greatly enhance storage application performance.
Ethernet Specification:

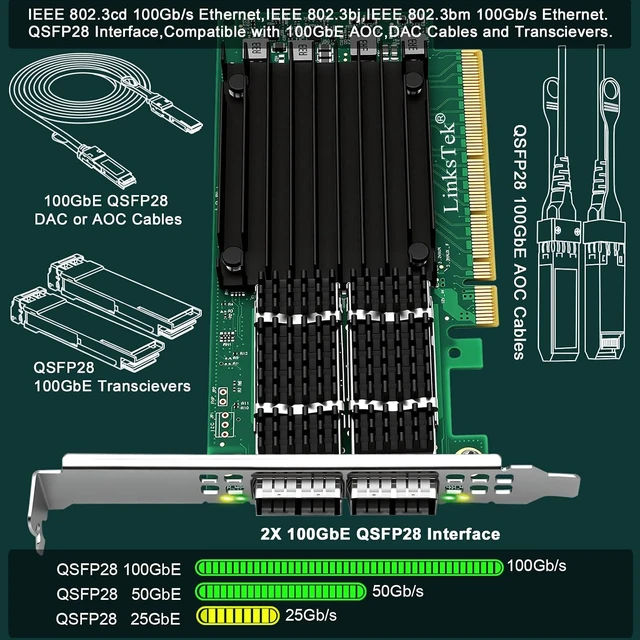

Support IEEE 802.3cd, 50Gb/s and 100Gb/s; IEEE 802.3bj, 802.3bm 100Gb/s;
IEEE 802.3by 25Gb/s, 50Gb/s; IEEE 802.3ba 40Gb/s; Support IEEE 802.3ae 10Gb/s;
IEEE 802.3az; IEEE 802.3ap; IEEE 802.3ad; 802.1AX Link Aggregation; IEEE 802.1Q;
802.1P VLAN tags and priority; Support IEEE 802.1Qau Congestion Notification;
IEEE 802.1Qaz; IEEE 802.1Qbb; IEEE 802.1Qbg; IEEE 1588 V2; Support Jumbo frame (9.6KB).
Compatible System:

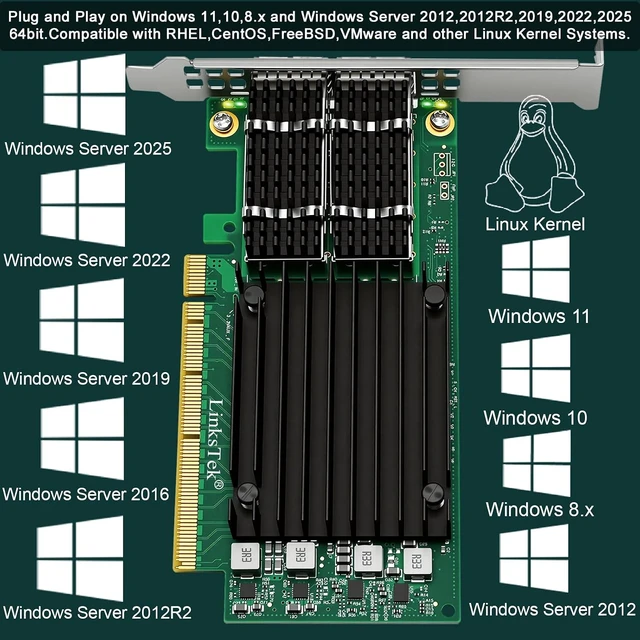

Support plug and play on Windows 11, 10 64bit and Windows Server 2012, 2012R2, 2016, 2019, 2022, 2025 64bit.
Compatible with RHEL, CentOS, FreeBSD, VMware and other Linux kernel systems.
Package List: 1X CX516A, 1X Low Profile Bracket.
ATTENTION: The Linkstek CX516A serves as a drop-in alternative to the MCX516A-CDAT for server applications.
CX516A 2x 100GbE QSFP28 Interface Inteligent RDMA Ethernet Adpater For Data Center & Server For Desktop PC For Personal NAS Mellanox ConnectX-5 EX 2x 100Gb/s Ethernet Controller IEEE 802.3 cd, bj, bm 100Gb/s Ethernet Windows 11,10, Windows Server & Linux QSFP28 100GbE Transcievers 100GbE QSFP28 DAC Cables QSFP28 100GbE AOC Cables PCIE GEN 4.0 X16 Slot Full Height PC & Slim PC Full Height & Low Profile Bracket Product Description:
