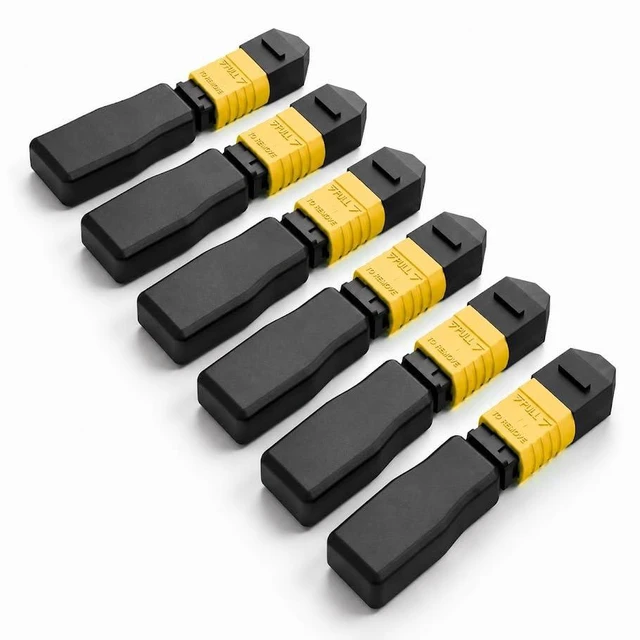

Main image of SpeedyFiber 6PK 8F MPO Male Single-Mode Loopback, Yellow APC, OS2

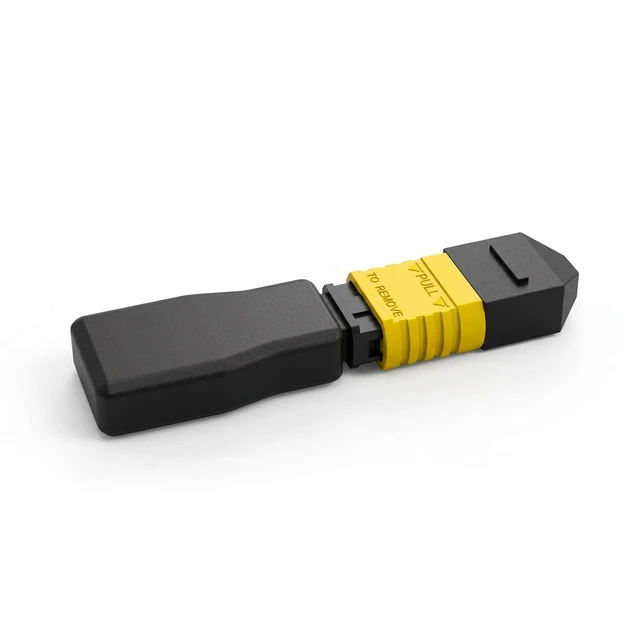

Alt view image 2 of 3 - SpeedyFiber 6PK 8F MPO Male Single-Mode Loopback, Yellow APC, OS2

Alt view image 3 of 3 - SpeedyFiber 6PK 8F MPO Male Single-Mode Loopback, Yellow APC, OS2

Shop All NShi Products | Visit XinjintongLimited Store

SpeedyFiber 6PK 8F MPO Male Single-Mode Loopback, Yellow APC, OS2

Be the first to review this product...

8F Single-Mode MPO Male Loopback Verifies 40G/100G QSFP+ and QSFP28 MPO transceivers; links TX and RX for fast, accurate loopback testing.
Low Insertion Loss, High Return Loss APC MPO Male: IL 0.7dB, RL 60dB. Insert-pull tested 50× at IL <0.5dB for repeatable performance.
Single-Mode OS2, Compact Form Factor 55mm×15mm PC jacket; operates -40°C to 75°C (-40°F to 167°F) for lab, data center, and field environments.
RoHS Compliant, 100% Factory Tested Every module passes full optical and mechanical inspection before shipment for reliable, consistent performance.
Network Testing and Troubleshooting Self-loop tests MPO transceiver quality; aids MPO cable insertion loss testing and failure node troubleshooting.

Overview

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

The SpeedyFiber 8-Fiber MPO Male Single-Mode Fiber Loopback Module is designed for testing and verifying 40G/100G QSFP+ and QSFP28 transceivers featuring 8-fiber MPO interface in single-mode parallel optics networks. It links the Transmitter (TX) and Receiver (RX) positions of MPO transceiver interfaces for fast, accurate loopback verification.
How It Works

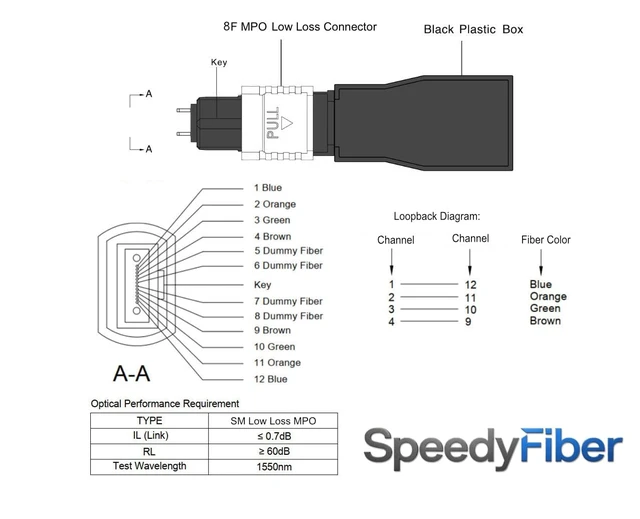

The loopback module connects TX and RX channels of an MPO transceiver in a closed loop, allowing technicians to verify signal integrity and transceiver performance without requiring a full fiber link. It can also be used in combination with MPO trunk and patch cables to speed up insertion loss testing of optical network segments and troubleshoot network failure nodes.
Key Specifications
Connector: US Conec MTP Compatible MPO Male
Fiber Type: Single-Mode OS2
Insertion Loss: 0.7dB
Return Loss (APC): 60dB
Insert-Pull Test: 50 times at IL <0.5dB
Jacket Material: PC
Size: 55mm x 15mm
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Compatible Applications
40G/100G QSFP+ and QSFP28 transceiver testing and verification
8-fiber MPO parallel optics network loopback testing
Insertion loss testing of MPO trunk and patch cable segments
Data center network failure node troubleshooting
Channel quality verification of 8-fiber MPO interface optical modules
