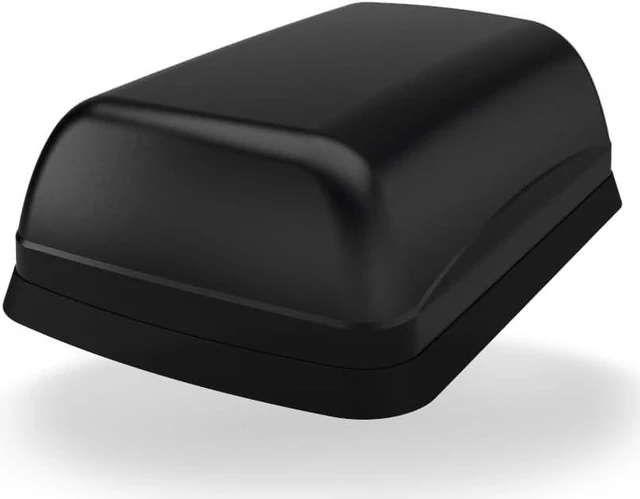

Sierra Wireless Semtech Airlink 7-in-1 Industrial 5G Antenna, 4x4 MiMo for 4G/5G, 2x2 MIMO Wi-Fi & GPS/GNSS, Thread Mount, SMA, Black for XR60 Router
- 4G/5G Elements 1-4: 617-960MHz 1.9 dBi, 1427-4200MHz 6.3dBi
- GPS/GNSS: 1559-1612MHz 30 dB / 1164-1189MHz 26dB
- Wi-Fi: 2.4GHz 3.6 dBi, 5.15-7.125GHz 6.7dBi
- Sierra Semtech Antenna - 617 MHz to 960 MHz, 1427 MHz to 4200 MHz - 30 dB - 6.7 dBi - Router, GPS - Black - Bolt Mount - Omni-directional - SMA Connector
- Dimensions: Height Length 56.9mm (2.2) ,118mm (4.64) and Width 175.4mm (6.9)
- Operating Temp: -40° / +85°C ( -40° / +185°F )
- Ingress Protection: IP69K
- Mounting Type: Bolt Mount / Mounting Hole: 19mm (3/4)
- Cellular/GPS/Wi-Fi Cable Type and Length: CS30 (Compliant to UN ECE R118) / 2m (6.6)
- Cable Termination: SMA Plug / SMA Plug Reverse Polarity
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The 7-in-1 Industrial antenna is a specialized antenna solution engineered and certified for AirLink XR60 fixed applications. The antenna has a low profile housing featuring a 4x4 MiMo for 4G/5G (617 - 4200MHz), dualband 2.5/5GHz Wi-Fi, and an active L1/L5 GPS/GNSS antenna.
