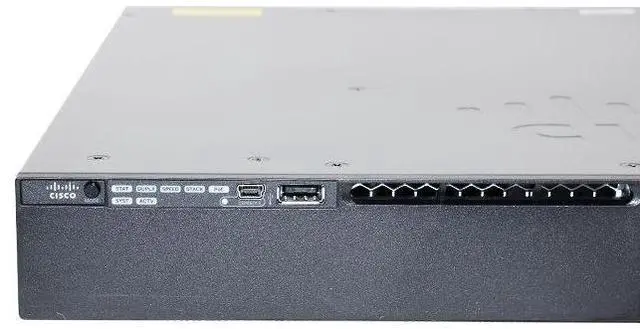

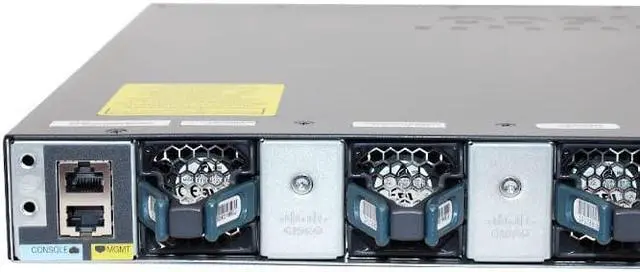

WS-3650 24 Port PoE 4x1G Uplink LAN Base(WS-C3650-24PS-L)
- Model info:
- WS-C3650-24PS-L
- Enclosure type
- Rack-mountable - 1U
- Ports
- 24 x 10/100/1000 (POE+) + 4 x 1G SFP
- Network management Interface
- Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
- Management console port: RJ-45-to-DB9 cable for PC connections
- Available PoE Power
- 390W
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
WS-C3650-24PS-L Specification
Model info:
WS-C3650-24PS-L
Enclosure type
Rack-mountable - 1U
Ports
24 x 10/100/1000 (POE+) + 4 x 1G SFP
Network management Interface
Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power
390W
Switching Capacity
88Gbps
Maximum stacking number
9
Stack Bandwidth
160Gbps
Forwarding Performance
41.66M pps
FNF entries
24000
Maximum VLA
Ns IDs
4, 094
Maximum VLA
Ns IDs
32K
CPU
Multicore CPU
RAM
4 G
Flash Memory
2 G
Wireless
Number of AP per switch/stack
50
Number of wireless clients per switch/stack
1000
Total number of WLA
Ns per switch
64
Wireless bandwidth per switch
up to 20Gbps
Supported Aironet AP series
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports
USB (Type-B), Ethernet (RJ-45)
Expansion Slot (s)
power redundant slot
Accessory & Rack Moubt Kits
ACC-KIT-T1: Accessory kit
RACK-KIT-T1: Rack mount kit
4PT-KIT-T1: Extension rails and brackets for four-point mounting
Stacking module & cable
C3650-STACK-KIT: Stack Module
STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
Power supply
PWR-C2-640WAC
Power Device
Power supply - redundant - plug-in module
Power Redundancy
optional
Voltage range (Auto)
100V-240V
Power Consumption of standalone (in Watts)
65.9 (max)
Miscellaneous
Width
17.5 Inches ( 44.5 cm)
Depth
17.625 Inches ( 44.8 cm)
Height
1.73 Inches ( 4.4 cm)
Shipping Weight
17.49 Kg
Rack Mounting Kit
optional
MTBF in hours
528, 280
Compliant Standards
IEEE 802.1D Spanning Tree Protoco
IEEE 802.1 p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1 s
IEEE 802.1 w
IEEE 802.1X
IEEE 802.1X -Rev
IEEE 802.11
IEEE 802.1 ab (LLDP)
IEEE 802.3 ad
IEEE 802.3 x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T
IEEE 802.3 u 100BASE-TX
IEEE 802.3 ab 1000BASE-T
IEEE 802.3 z 1000BASE-X
RMON I and II standards
SNMP v1, v2c, and v3
System software / license
System software
IOS LAN Base (Upgradable)
EnergyWise license
ENERGY-MGMT, ENERGY-MGT-100-K9
Access Point Licenses
L-LIC-CT3650-UPG: Primary upgrade license SKU for Cis 3650 wireless controller (e-delivery)
L-LIC-CTIOS-1A: 1 access point adder license for Cis IOS Software based wireless controller (e-delivery)
L-LIC-CTIOS-1A: 1 access point adder license for Cis IOS Software based wireless controller (e-delivery)
LIC-CTIOS-1A: 1 access point adder license for the Cis IOS Software based wireless controller (paper license)
features
EEM RPS Support IP service-level agreements (SLAs) Advanced IP unicast routing protocols
Jumbo Frames VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3 ad LACP and PAgP PVST/PVST+
802.1W / 802.1S Port Fast/Uplink Fast Dynamic Trunking Protocol (DTP) port CoS Trust and Override
Trusted Boundary ACL Classification ingress Policing Auto QoS Per VLAN policies 802.1 p queues
Scheduling Priority Queuing Configure CoS Priority Queues Configure CoS Priority Queues
Configure Queue Weights Configure Buffers and Thresholds Class & Policy Maps
Modify CoS and DSCP Mapping Weighted Tail Drop IGM
Pv1, v2, v3 and MLDv1, v2 DHCP server
DSCP transparency HSRP, VRRP, BLGP RIPv1, v2 EIGRP, PIM OSPF, OSP
Fv3, EIGR
Pv6, BGPv4, IS-ISv4
VRF-lite PIM-SM/DM, PIM sparse-dense mode, SSM Flexible Netflow
Advanced Network security
Port security DHCP snooping Dynamic ARP inspection (DAI) IP source guard The Unicast Reverse Path Forwarding (uRPF)
Bidirectional data support on a SPAN User authentication
Private VLAN Router and VLAN ACLs complete identity and security
Multidomain authentication MAC address notification
IGMP filtering Cis security VLAN ACL
Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNM
Pv3)
Port-based ACLs TrustSec SXP IEEE 802.1 ae
TACACS+ and RADIUS authentication Cis standard and extended IP security router ACLs
Bridge protocol data unit (BPDU) Guard
Spanning Tree Root Guard (STRG) Wireless end-to-end security
Model info:
WS-C3650-24PS-L
Enclosure type
Rack-mountable - 1U
Ports
24 x 10/100/1000 (POE+) + 4 x 1G SFP
Network management Interface
Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power
390W
Switching Capacity
88Gbps
Maximum stacking number
9
Stack Bandwidth
160Gbps
Forwarding Performance
41.66M pps
FNF entries
24000
Maximum VLA
Ns IDs
4, 094
Maximum VLA
Ns IDs
32K
CPU
Multicore CPU
RAM
4 G
Flash Memory
2 G
Wireless
Number of AP per switch/stack
50
Number of wireless clients per switch/stack
1000
Total number of WLA
Ns per switch
64
Wireless bandwidth per switch
up to 20Gbps
Supported Aironet AP series
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports
USB (Type-B), Ethernet (RJ-45)
Expansion Slot (s)
power redundant slot
Accessory & Rack Moubt Kits
ACC-KIT-T1: Accessory kit
RACK-KIT-T1: Rack mount kit
4PT-KIT-T1: Extension rails and brackets for four-point mounting
Stacking module & cable
C3650-STACK-KIT: Stack Module
STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
Power supply
PWR-C2-640WAC
Power Device
Power supply - redundant - plug-in module
Power Redundancy
optional
Voltage range (Auto)
100V-240V
Power Consumption of standalone (in Watts)
65.9 (max)
Miscellaneous
Width
17.5 Inches ( 44.5 cm)
Depth
17.625 Inches ( 44.8 cm)
Height
1.73 Inches ( 4.4 cm)
Shipping Weight
17.49 Kg
Rack Mounting Kit
optional
MTBF in hours
528, 280
Compliant Standards
IEEE 802.1D Spanning Tree Protoco
IEEE 802.1 p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1 s
IEEE 802.1 w
IEEE 802.1X
IEEE 802.1X -Rev
IEEE 802.11
IEEE 802.1 ab (LLDP)
IEEE 802.3 ad
IEEE 802.3 x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T
IEEE 802.3 u 100BASE-TX
IEEE 802.3 ab 1000BASE-T
IEEE 802.3 z 1000BASE-X
RMON I and II standards
SNMP v1, v2c, and v3
System software / license
System software
IOS LAN Base (Upgradable)
EnergyWise license
ENERGY-MGMT, ENERGY-MGT-100-K9
Access Point Licenses
L-LIC-CT3650-UPG: Primary upgrade license SKU for Cis 3650 wireless controller (e-delivery)
L-LIC-CTIOS-1A: 1 access point adder license for Cis IOS Software based wireless controller (e-delivery)
L-LIC-CTIOS-1A: 1 access point adder license for Cis IOS Software based wireless controller (e-delivery)
LIC-CTIOS-1A: 1 access point adder license for the Cis IOS Software based wireless controller (paper license)
features
EEM RPS Support IP service-level agreements (SLAs) Advanced IP unicast routing protocols
Jumbo Frames VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3 ad LACP and PAgP PVST/PVST+
802.1W / 802.1S Port Fast/Uplink Fast Dynamic Trunking Protocol (DTP) port CoS Trust and Override
Trusted Boundary ACL Classification ingress Policing Auto QoS Per VLAN policies 802.1 p queues
Scheduling Priority Queuing Configure CoS Priority Queues Configure CoS Priority Queues
Configure Queue Weights Configure Buffers and Thresholds Class & Policy Maps
Modify CoS and DSCP Mapping Weighted Tail Drop IGM
Pv1, v2, v3 and MLDv1, v2 DHCP server
DSCP transparency HSRP, VRRP, BLGP RIPv1, v2 EIGRP, PIM OSPF, OSP
Fv3, EIGR
Pv6, BGPv4, IS-ISv4
VRF-lite PIM-SM/DM, PIM sparse-dense mode, SSM Flexible Netflow
Advanced Network security
Port security DHCP snooping Dynamic ARP inspection (DAI) IP source guard The Unicast Reverse Path Forwarding (uRPF)
Bidirectional data support on a SPAN User authentication
Private VLAN Router and VLAN ACLs complete identity and security
Multidomain authentication MAC address notification
IGMP filtering Cis security VLAN ACL
Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNM
Pv3)
Port-based ACLs TrustSec SXP IEEE 802.1 ae
TACACS+ and RADIUS authentication Cis standard and extended IP security router ACLs
Bridge protocol data unit (BPDU) Guard
Spanning Tree Root Guard (STRG) Wireless end-to-end security
