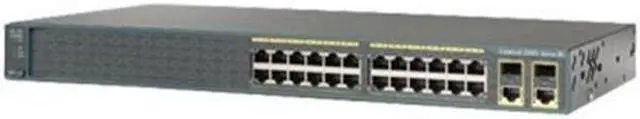

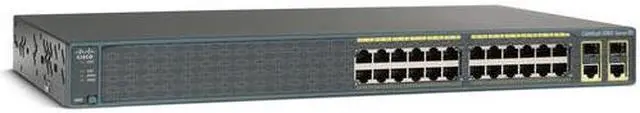

WS-C2960+24TC-S 2960 Plus Switch 24 10/100 + 2 T/SFP LAN Lite

10/100 Ethernet Interfaces
24
Uplink Interfaces
2 (SFP or 1000BASE-T)
IOS Software Feature Set
LAN Lite
Available PoE Power
None
Hardware
Flash memory
64 MB
DRAM
128 MB
Performance and Scalability
Forwarding bandwidth
16 Gbps
Maximum active VLANs
64
VLAN IDs available
4K
Maximum transmission unit (MTU) - L3 packet
9000 bytes
Jumbo frame - Ethernet frame
9018 bytes
Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second
6.5
Mechanical
Dimensions (H x W x D)
1.73 x 17.70 x 9.52 in ( 4.4 x 45.0 x 24.2 cm)
Weight
8 lb ( 3.6 Kg)
Package Weight
17.04 lb ( 7.73 Kg)
Environmental Ranges
Operating temperature up to 5000 ft (1500 m)
23º to 113ºF
(-5º to 45ºC)
Operating temperature up to 10, 000 ft (3000 m)
23º to 104ºF
(-5º to 40ºC)
Short-term exception at sea level*
23º to 131ºF
(-5º to 55ºC)
Short-term exception up to 5000 feet (1500 m) *
23º to 122ºF
(-5º to 50ºC)
Short-term exception up to 10, 000 feet (3000 m) *
23º to 113ºF
(-5º to 45ºC)
Short-term exception up to 13, 000 feet (4000 m) *
23º to 104ºF
(-5º to 40ºC)
Storage temperature up to 15, 000 feet (4573 m)
23º to 158ºF
(-25º to 70ºC)
Operating altitude
Up to 10, 000 Feet
(Up to 3, 000 Meters)
Storage altitude
Up to 13, 000 Feet
(Up to 4, 000 Meters)
Operating relative humidity
10% to 95% noncondensing
Storage relative humidity
10% to 95% noncondensing
Sound Pressure, dBA
Typical,
LpAm: 33
Maximum,
LpAD: 36
Sound Power, dbA
Typical,
LwA: 43
Maximum,
LwAD: 46
MTBF in thousands of hours
667
