16 Port Gigabit Switch, 16 x 100/1000Mbps Ports, Metal Unmanaged Fanless Pluy and Play YuLinca Network Switch
- 16 Port Gigabit Switch: Include 16 ports gigabit ethernet, all ports support 10/100/1000Mbps rate, each port can reach 1G rate at the same time. The total bandwidth is 32Gbps.
- Unmanaged Gigabit Network Switch: 16× 10/100/1000Mbps RJ45 Ports support auto MDI/MDIX, auto-negotiation rate, just connect the power cord, and connect to the device through the network cable, no other configuration is required.
- Easy to Maintain: Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple. Fanless silent keeps working environment very quiet.
- Widely Used: Support desktop or wall mounting, the gigabit switch can be used in various networks environment needs, such as home entertainment and office, IP cameras, Wireless Access Point, Computer Networks devices, switch and router data transmission etc.
- After sales: We are committed to providing customers with quality services, you can enjoy 3 year after sales. At the same
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

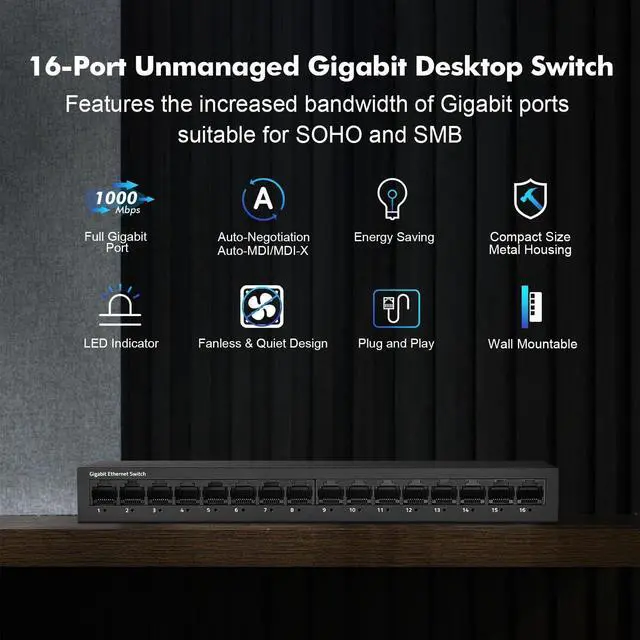

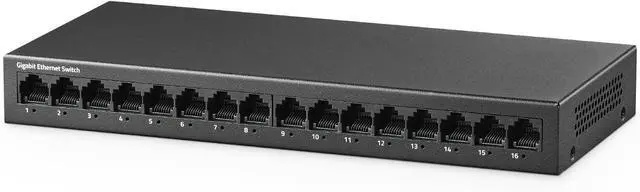

The UMG16 Gigabit Unmanaged Ethernet switches come with 16 gigabit copper ports in a desktop metal case and is wall-mountable. Fanless, silent and energy-efficient operation. It is idel for small and medium business.

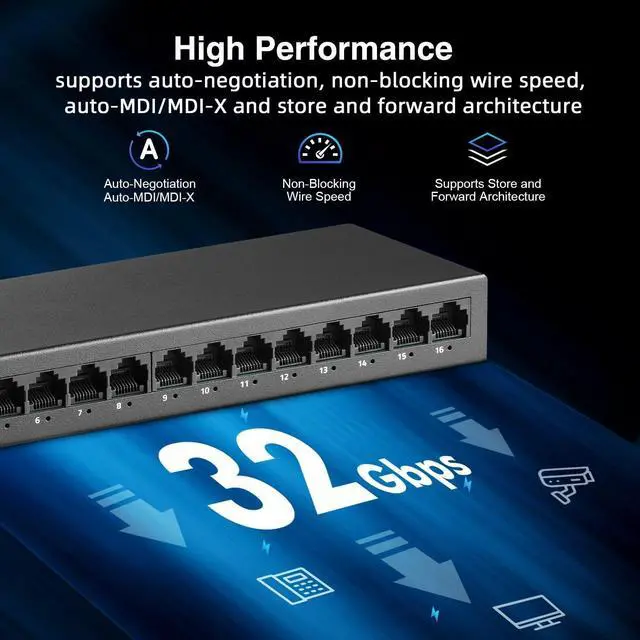

It allows connecting 16 devices at different bandwidths, offering flexible and budget-friendly networking solutions, Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which maximizing network performance.
Automatic connectivity to your 16x 1G ethernet devices. No need for an IT expert.
Small and silent desktop or wallmount form factor for quiet operation, It can be placed virtually anywhere and operate silently.
The status LEDs on front panel provide a visual indication on what is physically wrong with the network switch.
Each RJ45 port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.

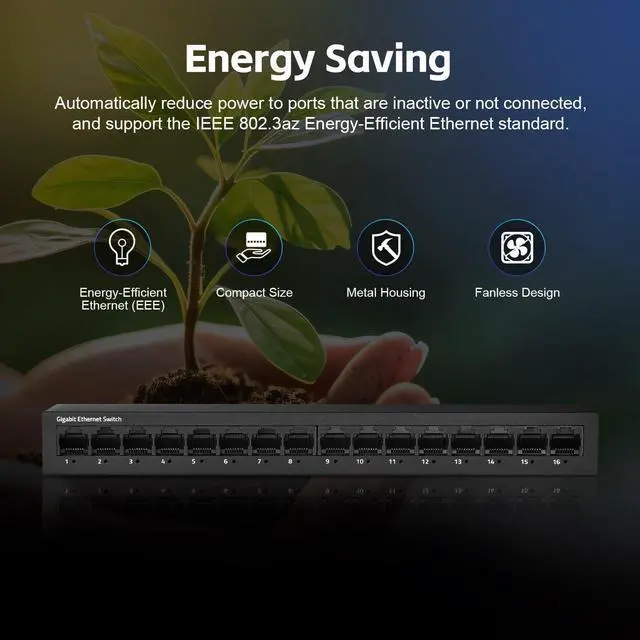

Complies with IEEE 802.3az(Energy Efficient Ethernet), inactive link detection and cable length detection for power saving.
Silent, fanless design for energy efficiency and noise-sensitive environments.
The switch is adapted with 12V/1A low-power power supply, and the maximum power consumption is less than 24W.
Durable metal case and compact form-factor.

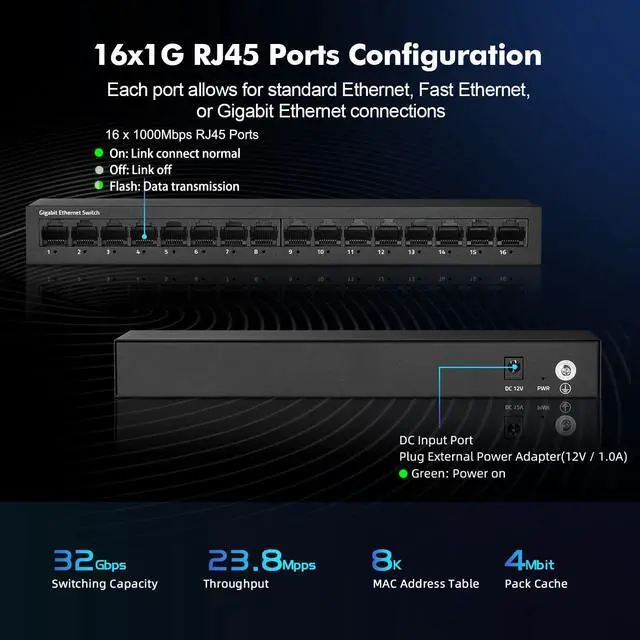

ModelUMG16Ethernet16*10/100/1000Mbps RJ45 PortsBackplane bandwidth32GbpsPack Forwarding Rate23.8MppsPack Cache4MbitMAC Address8KTransfer ModeStorage & ForwardingNetwork protocolIEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)Network Medium10Base-T: Cat3, 4, 5 or above UTP(100m) 100Base-TX: Cat5or above UTP(100m)1000Base-TX: Cat5 or aboveUTP(100m)Working EnvironmentWorking Temperature-0~40°C Storage Temperature-40~70°C Working Humidity 10%~90%non-condensing Storage Temperature5%~95%non-condensingPower VoltagePower adapter input voltage: AC 100-240V 50/60Hz Power adapter output voltage: 12V 1A, Maximum 24WPort lightOn: Link connect normal Off: Link off Flash: Data transmissionStructure sizeProduct Size: 240*102*30mm Package Size: 255*125*65mm Product Net-Weight: 0.59Kg Product Gross-Weight: 0.74KgPackage ListSwitch 1 pcs, Power cord 1 pcs, User manual 1 pc High Performance & Reliable Connection Plug and Play Desktop and Wall Mount Led Indicator Safe Guard Your Devices Energy Saving (EEE) Support Fanless & Slient Operantion DC 12V/1A Lower-Power Adapter Metal and Compact form-factor Technical Parameter
It allows connecting 16 devices at different bandwidths, offering flexible and budget-friendly networking solutions, Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which maximizing network performance.
Automatic connectivity to your 16x 1G ethernet devices. No need for an IT expert.
Small and silent desktop or wallmount form factor for quiet operation, It can be placed virtually anywhere and operate silently.
The status LEDs on front panel provide a visual indication on what is physically wrong with the network switch.
Each RJ45 port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.
Complies with IEEE 802.3az(Energy Efficient Ethernet), inactive link detection and cable length detection for power saving.
Silent, fanless design for energy efficiency and noise-sensitive environments.
The switch is adapted with 12V/1A low-power power supply, and the maximum power consumption is less than 24W.
Durable metal case and compact form-factor.
ModelUMG16Ethernet16*10/100/1000Mbps RJ45 PortsBackplane bandwidth32GbpsPack Forwarding Rate23.8MppsPack Cache4MbitMAC Address8KTransfer ModeStorage & ForwardingNetwork protocolIEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)Network Medium10Base-T: Cat3, 4, 5 or above UTP(100m) 100Base-TX: Cat5or above UTP(100m)1000Base-TX: Cat5 or aboveUTP(100m)Working EnvironmentWorking Temperature-0~40°C Storage Temperature-40~70°C Working Humidity 10%~90%non-condensing Storage Temperature5%~95%non-condensingPower VoltagePower adapter input voltage: AC 100-240V 50/60Hz Power adapter output voltage: 12V 1A, Maximum 24WPort lightOn: Link connect normal Off: Link off Flash: Data transmissionStructure sizeProduct Size: 240*102*30mm Package Size: 255*125*65mm Product Net-Weight: 0.59Kg Product Gross-Weight: 0.74KgPackage ListSwitch 1 pcs, Power cord 1 pcs, User manual 1 pc High Performance & Reliable Connection Plug and Play Desktop and Wall Mount Led Indicator Safe Guard Your Devices Energy Saving (EEE) Support Fanless & Slient Operantion DC 12V/1A Lower-Power Adapter Metal and Compact form-factor Technical Parameter
