MokerLink IP67 Outdoor 10 Gigabit PoE Injector, 10/100M/1G/2.5G/10Gbps, DC48-57V in Max 120W, IEEE 802.3 af/at/bt PoE Out Max 90W, Wall Mount Metal Waterproof
- 10 Gigabit Ports: Include 1 Data In, 1 PoE Out, auto adaptive 10/100M/1G/2.5G/10Gbps speed. 100BASE-TX, Cat5 or later UTP(150 meter); 1000BASE-TX: Cat6 or later UTP(150 meter);2500BASE-TXCat6 or later UTP(100 meter);5000BASE-TXCat6 or later UTP(80 meter);10000BASE-TXCat7 or later UTP(50 meter)
- IP67 Outdoor Weatherproof: Rugged industrial grade metal housing, cable interface are all protected in the shell, with waterproof cap, which has better waterproof, dustproof and snowproof effect, and is more suitable for outdoor and indoor environments, such as warehouses, computer rooms, garages, attics, etc. **Pass the network cable through the waterproof cap and then make RJ45 connection**

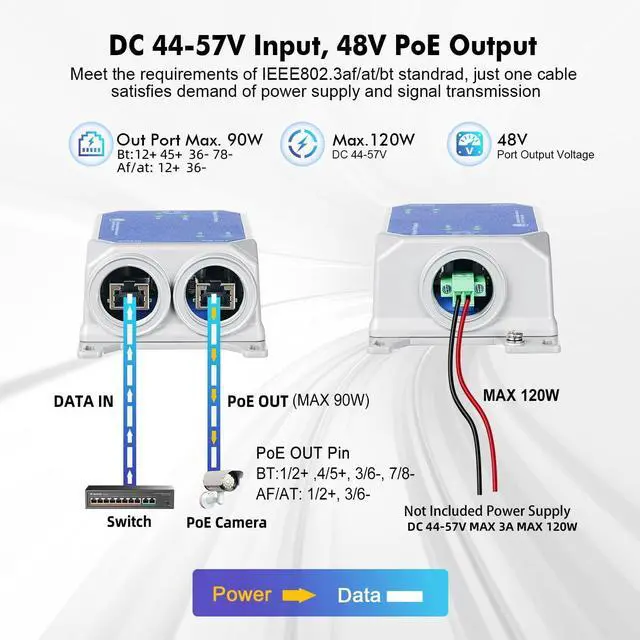

- IEEE 802.3 af/at/bt: PoE out port support this standard PoE, Out Max 90W IEEE802.3af/at/bt, Input Max 120W DC48-57V with phoenix terminal(Please note the positive and negative poles). PoE out Voltage 44-57 Vdc. PoE pin: 1/2 (+),4/5 (+), 3/6 (-),7/8 (-).**If the input DC is less than 48V, it will not be
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This outdoor industrial-grade waterproof PoE injector (44-57VDC input) delivers 90W PoE with 10Gbps high-speed connectivity. It enables convenient and reliable PoE connections in harsh outdoor environments, supporting stable power and network transmission from distances up to 100 meters away.
This 90W high-power PoE+ injector seamlessly integrates with existing main network systems, enabling efficient power delivery for high-wattage PoE devices. It fully complies with IEEE 802.3af/at/bt standards, supporting backward compatibility with 15W (af), 30W (at), and 90W (bt) .

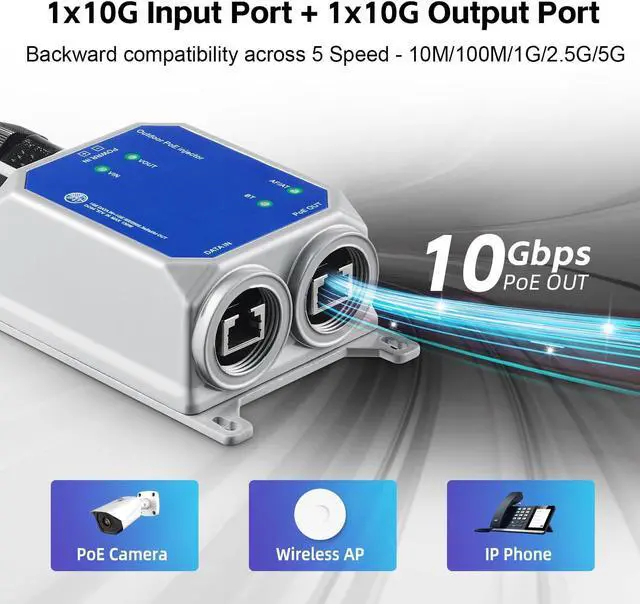

This industrial-strength PoE injector is equipped with dual 10Gbps ports: an Ethernet input and a PoE RJ45 output, delivering ultra-high-speed data transmission up to 10Gbps. Its advanced packet prioritization technology ensures seamless large-file collaboration or video across multiple devices.
Engineered with IP67 waterproof protection and aluminum alloy housing, this industrial PoE injector delivers exceptional durability under extreme conditions. Its operational resilience spans -20°C to +75°C, maintaining stable performance during.
Simple plug into DC outlet(DC44-57V Power Input) with Phoenix Terminal, Need external power supply separately.
Integrated 6kV surge protection (IEC 61643-11 compliant) with line-to-ground/line-to-line shielding, It suitable for outdoor deploy.
This poe injector can be flexibly installed on desktops or walls to optimize space utilization, This dual-installation flexibility not only saves physical space but also enhances ventilation and cablemanagement efficiency

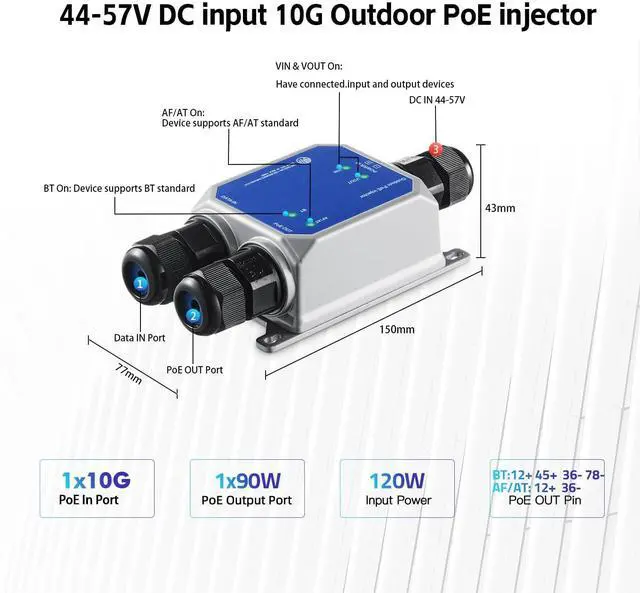

ModelIJ-10110GOProduct Name10G 90W IP67 Outdoor Waterproof PSE InjectorShellAluminum die-casting body, Nylon waterproof jointWaterproof GradeIP67Wire DiameterSupport network cables with a of 4-8mmPorts1*10M/100M/1G/2.5G/5G/10G Base-TXData in + 1*10M/100M/1G/2.5G/5G/10G Base-TXPoE outDC INDC 44-57V MAX 3A/120W, 2P*3.5mm connection terminalPoE OUTSupports IEEE802.3af/at/bt, max 90W PoE outPoE OUT PinBT:1/2+, 4/5+,3/6-, 7/8-,AF/AT: 1/2+,3/6-Transmission Distance10BASE-T: Cat3,4,5 UTP(250 meter)100BASE-TX: Cat5 or later UTP(150 meter)1000BASE-TX: Cat6 or later UTP(150 meter) 2500BASE-TX: Cat6 or later UTP(100 meter) 5000BASE-TX: Cat6 or later UTP(80 meter) 10000BASE-TX: Cat7 or later UTP(50 meter)LED IndicatorPW: Power in led, 48V:Input voltage is normal, Af/at: Port af/at PoE out ON, BT: Port BT PoE out ONEnvironmentOperating Temperature: -20~75°C, Storage Temperature: -40 °C to 90 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensing Structure InformationProduct Size: 150*77*43mm, Package Size: 160*85*47mm,Product Net-Weight: 0.27KG Product Gross-Weight: 0.31KG Lightning Protection Level6KV 8/20us InstallationDesktop, wall installation 90W PoE Output (IEEE802.3af/at/bt) 10G High-Speed Ports IP67 Waterproof Protection DC44-57V Power Input 6KV Lightning Protection Mounting flexibility Technical Parameter
This 90W high-power PoE+ injector seamlessly integrates with existing main network systems, enabling efficient power delivery for high-wattage PoE devices. It fully complies with IEEE 802.3af/at/bt standards, supporting backward compatibility with 15W (af), 30W (at), and 90W (bt) .
This industrial-strength PoE injector is equipped with dual 10Gbps ports: an Ethernet input and a PoE RJ45 output, delivering ultra-high-speed data transmission up to 10Gbps. Its advanced packet prioritization technology ensures seamless large-file collaboration or video across multiple devices.
Engineered with IP67 waterproof protection and aluminum alloy housing, this industrial PoE injector delivers exceptional durability under extreme conditions. Its operational resilience spans -20°C to +75°C, maintaining stable performance during.
Simple plug into DC outlet(DC44-57V Power Input) with Phoenix Terminal, Need external power supply separately.
Integrated 6kV surge protection (IEC 61643-11 compliant) with line-to-ground/line-to-line shielding, It suitable for outdoor deploy.
This poe injector can be flexibly installed on desktops or walls to optimize space utilization, This dual-installation flexibility not only saves physical space but also enhances ventilation and cablemanagement efficiency
ModelIJ-10110GOProduct Name10G 90W IP67 Outdoor Waterproof PSE InjectorShellAluminum die-casting body, Nylon waterproof jointWaterproof GradeIP67Wire DiameterSupport network cables with a of 4-8mmPorts1*10M/100M/1G/2.5G/5G/10G Base-TXData in + 1*10M/100M/1G/2.5G/5G/10G Base-TXPoE outDC INDC 44-57V MAX 3A/120W, 2P*3.5mm connection terminalPoE OUTSupports IEEE802.3af/at/bt, max 90W PoE outPoE OUT PinBT:1/2+, 4/5+,3/6-, 7/8-,AF/AT: 1/2+,3/6-Transmission Distance10BASE-T: Cat3,4,5 UTP(250 meter)100BASE-TX: Cat5 or later UTP(150 meter)1000BASE-TX: Cat6 or later UTP(150 meter) 2500BASE-TX: Cat6 or later UTP(100 meter) 5000BASE-TX: Cat6 or later UTP(80 meter) 10000BASE-TX: Cat7 or later UTP(50 meter)LED IndicatorPW: Power in led, 48V:Input voltage is normal, Af/at: Port af/at PoE out ON, BT: Port BT PoE out ONEnvironmentOperating Temperature: -20~75°C, Storage Temperature: -40 °C to 90 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensing Structure InformationProduct Size: 150*77*43mm, Package Size: 160*85*47mm,Product Net-Weight: 0.27KG Product Gross-Weight: 0.31KG Lightning Protection Level6KV 8/20us InstallationDesktop, wall installation 90W PoE Output (IEEE802.3af/at/bt) 10G High-Speed Ports IP67 Waterproof Protection DC44-57V Power Input 6KV Lightning Protection Mounting flexibility Technical Parameter
