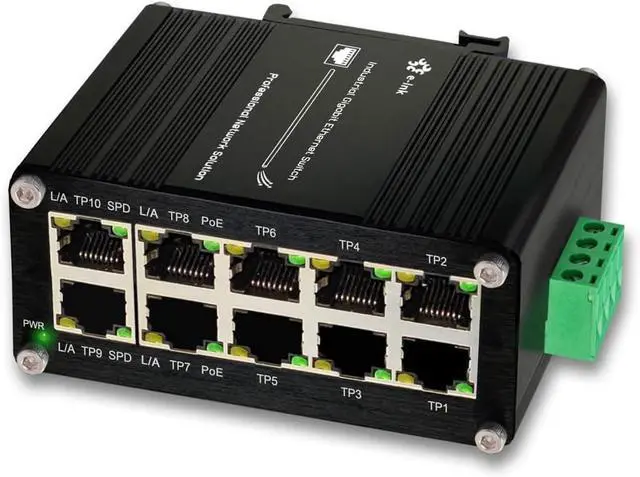

Industrial 8-Port 10/100/1000T 802.3at PoE+ Compact Ethernet Switch, 2 Ports Mini Din Rail Mount, 48-57V DC Unmanaged Network Switch 20Gbps Switching Capacity

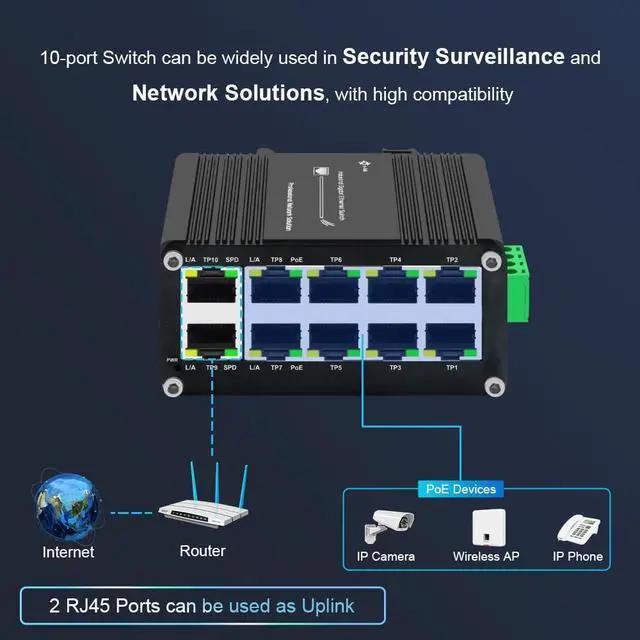

- 8 ports with 802.3at PoE+ Injector Function Port 1 to 8 with 10/100/1000T 802.3at PoE+ provide up to 240-watt 802.3at PoE+ output capability. 2 extra 10/100/1000BASE-T RJ45 copper interface for uplink connection.
- IP40 Industrial Metal CaseIndustry standard design, rugged high-strength metal case provides a high level of immunity against electromagnetic interference and heavy electrical surges.
- Operation NoiselessThe din-rail 10 port Ethernet switch has a ventilation structure and cooling fan is not necessary, so it can operate noiseless.
- Redundant Power InputThe power system of the industrial network switch supports 48~57V DC power input for power redundancy with polarity reverses protection function and operational flexibility.

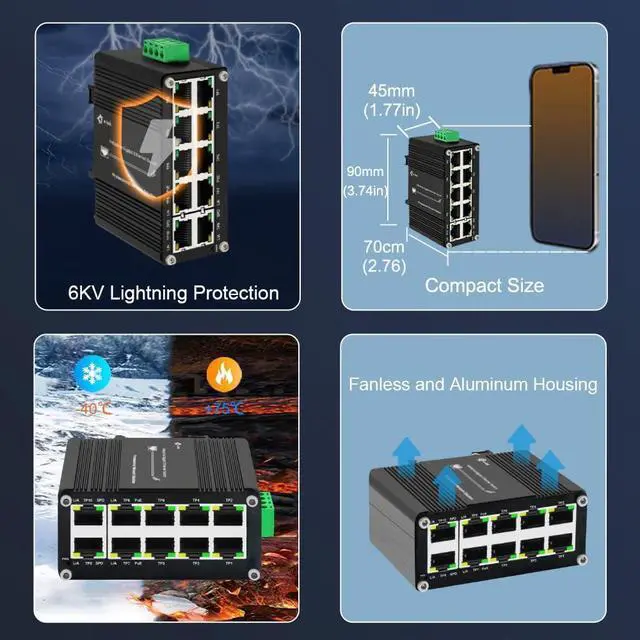

- Small SizeThe mini compact industrial gigabit switch is 3.74 x 3.47 x 1.81in in size and is specially designed to be installed in a narrow environment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The power system of the LNK-IMC010GP supports 48~57V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 80 degrees C in rugged IP40 metal housing.
Forward & Filtering Rate: 1,488,000pps 10 10/100/1000BASE-T Ethernet ports

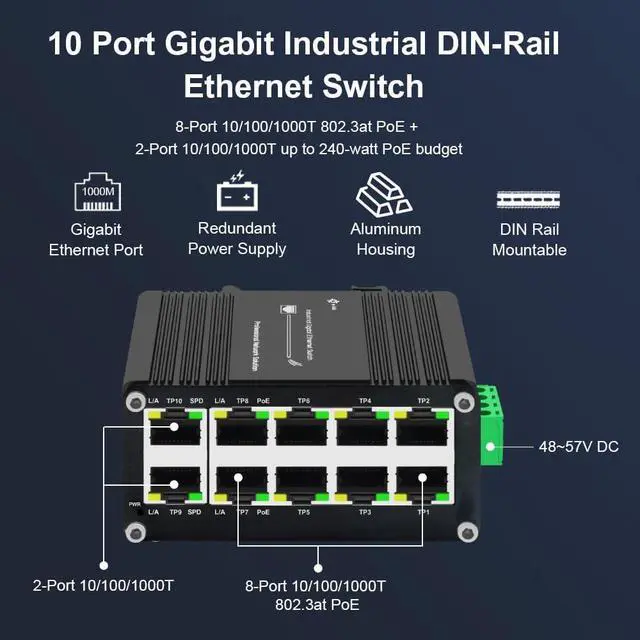

Equipped with 10 10/100/1000Base-T RJ45 ports, up to 8 ports of IEEE 802.3af/at devices powered, and up to 240-watt PoE budget.

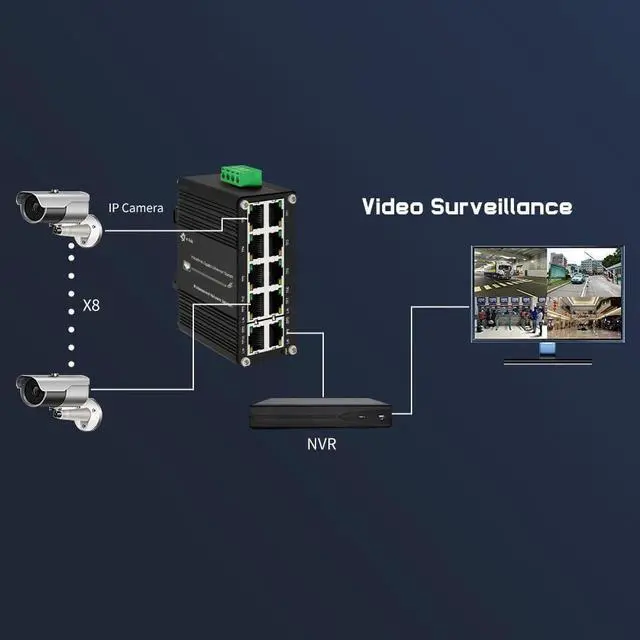

10-port trackless industrial switch is suitable for monitoring network, industrial automation, intelligent transportation, smart city and other fields.
Connector10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports,8 ports with 802.3at PoE+ injector function (Port 1 to 8)Packet Length 9216bytesMAC Address Table4K entriesSwitch Fabric20Gbps/non-blockingInput Power48~57VDCPower Pin Assignment4/5(+), 7/8(-)Packet Buffer2MbitsDimensions (WxDxH)95 x 88 x 46mmWeight400gSurge Protection8KV for PoE, RJ-45 and SFP ports Industrial 10/100/1000T 8-Port 802.3at PoE + 2-Port Din Rail Ethernet Switch Features: Wide use Features: Specifications:
Forward & Filtering Rate: 1,488,000pps 10 10/100/1000BASE-T Ethernet ports
Equipped with 10 10/100/1000Base-T RJ45 ports, up to 8 ports of IEEE 802.3af/at devices powered, and up to 240-watt PoE budget.
10-port trackless industrial switch is suitable for monitoring network, industrial automation, intelligent transportation, smart city and other fields.
Connector10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports,8 ports with 802.3at PoE+ injector function (Port 1 to 8)Packet Length 9216bytesMAC Address Table4K entriesSwitch Fabric20Gbps/non-blockingInput Power48~57VDCPower Pin Assignment4/5(+), 7/8(-)Packet Buffer2MbitsDimensions (WxDxH)95 x 88 x 46mmWeight400gSurge Protection8KV for PoE, RJ-45 and SFP ports Industrial 10/100/1000T 8-Port 802.3at PoE + 2-Port Din Rail Ethernet Switch Features: Wide use Features: Specifications:
