InHand Networks IR305 Industrial Iot LTE 4G VPN Router, 5 Ethernet Port,Dual sim, Wan failover, Serial Port, Remote Connection,Link Backup, Mu-mimo,VLAN, for AT&T, T-Mobile & Verizon(CAT4 & DI/DO)
- The InRouter305 (IR305) is a dual-SIM cellular router with 5 Ethernet ports, and I/O or serial ports, integrated 4G LTE (CAT 6/4/1) and WiFi, and VPN technologies to provide easy, reliable, and secure Internet connectivity. It supports two operation modes, 4G Router mode and Wireless Router mode to provide uninterrupted multiple network access capabilities.
- Multiple Networking Functions IR305 is suitable for complex and large-scale network applications with its multiple networking functions, such as virtual network VLAN, static routing, OSPF, GRE, VPN DMVPN, etc.
- Continuity and Reliability Network Connection With Dual SIM failover and link backup, IR305 provides a reliable network connection for users. It can also provide high-quality network services by dual-SIM failover, VRRP, multi-layer auto detection and recovery of links failures.

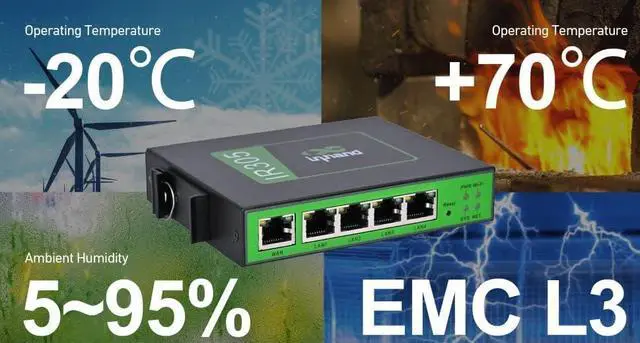

- Fully Industrial Design Metal shell, IP30 protection. EMC level 3. Wide operating temperature: -20~70. IR305 is compact, which effectively reduce
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
4G cellular access, LTE CAT1/CAT4/CAT6 standard, compatible with 2G/3G network
Wired/ADSL access
WiFi wireless access
Optional IO port or serial port, depending on your application
Network AccessAPN, VPDNAcess AuthenticationCHAP/PAPNetwork TypeGSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA/, TDD LTE/FDD LTE (Please refer to the Ordering Guide for frequencies).LAN ProtocolARP WAN Protocol PPP, PPPoE, DHCP IP Application Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, TelnetIP RoutingStatic routing, OSPF dynamic routing NATSupports network address translationDual SIM Failover Supports dual SIM failoverLink Detection Sends heartbeat packets to detect, and redials when disconnected WLAN Protocol IEEE 802.11b/g/nModeAP, Client, WDS modesRateUp to 300MbpsTransmission Distance80 meters by line of sight(Actual transmission distance depends on environment of the site) QOS ManagementBandwidth, IP speed limitTraffic Management Supports data traffic threshold, traffic statistics and traffic alarmCPU 580MHz RAM 128MB DDR2FLASH64MB SPI Ethernet Port5*10/100Mbps fast Ethernet port, WAN/LAN/VLAN port1.5KV network isolation transformer protectionPower SupplyDC9-36V, over-current protectiob, anti-reverse connection, 2*PIN industrial terminal blockI/O ( *Optional )Support 4*IO (DO or DI can be configured)Serial port( *Optional 1*RS232+1*RS485 Reset ButtonPinhole reset buttonSIM CardDrawer-type slot *1, support dual-NANO SIM Wi-Fi (Optional)IEEE 802.11b/g/n, 300MbpsAntenna Connector4GSMA x 1; Wi-FiRP-SMA x 1Note: North America models: 2* SMA 4G antenna connectors.Ground TerminalSupportsDimensions120x99x25(mm)Weight354gInstallation MethodPanel mounting, rail mountingCertificateCE, FCC, CB, E-MARK, PTCRB, IC, VZW, RCM, AT&T Convenient and Efficient Access to the Network Anytime, Anywhere InRouter305 Software Specifications InRouter305 Hardware Specifications
Wired/ADSL access
WiFi wireless access
Optional IO port or serial port, depending on your application
Network AccessAPN, VPDNAcess AuthenticationCHAP/PAPNetwork TypeGSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA/, TDD LTE/FDD LTE (Please refer to the Ordering Guide for frequencies).LAN ProtocolARP WAN Protocol PPP, PPPoE, DHCP IP Application Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, TelnetIP RoutingStatic routing, OSPF dynamic routing NATSupports network address translationDual SIM Failover Supports dual SIM failoverLink Detection Sends heartbeat packets to detect, and redials when disconnected WLAN Protocol IEEE 802.11b/g/nModeAP, Client, WDS modesRateUp to 300MbpsTransmission Distance80 meters by line of sight(Actual transmission distance depends on environment of the site) QOS ManagementBandwidth, IP speed limitTraffic Management Supports data traffic threshold, traffic statistics and traffic alarmCPU 580MHz RAM 128MB DDR2FLASH64MB SPI Ethernet Port5*10/100Mbps fast Ethernet port, WAN/LAN/VLAN port1.5KV network isolation transformer protectionPower SupplyDC9-36V, over-current protectiob, anti-reverse connection, 2*PIN industrial terminal blockI/O ( *Optional )Support 4*IO (DO or DI can be configured)Serial port( *Optional 1*RS232+1*RS485 Reset ButtonPinhole reset buttonSIM CardDrawer-type slot *1, support dual-NANO SIM Wi-Fi (Optional)IEEE 802.11b/g/n, 300MbpsAntenna Connector4GSMA x 1; Wi-FiRP-SMA x 1Note: North America models: 2* SMA 4G antenna connectors.Ground TerminalSupportsDimensions120x99x25(mm)Weight354gInstallation MethodPanel mounting, rail mountingCertificateCE, FCC, CB, E-MARK, PTCRB, IC, VZW, RCM, AT&T Convenient and Efficient Access to the Network Anytime, Anywhere InRouter305 Software Specifications InRouter305 Hardware Specifications
