MokerLink 5 Port PoE+ Industrial Din Rail Switch, 4 Ports PoE+ IEEE802.3af/at, 1 Uplink, 10/100Mbps Fast Ethernet, DIN-Rail & Wall Mount Included

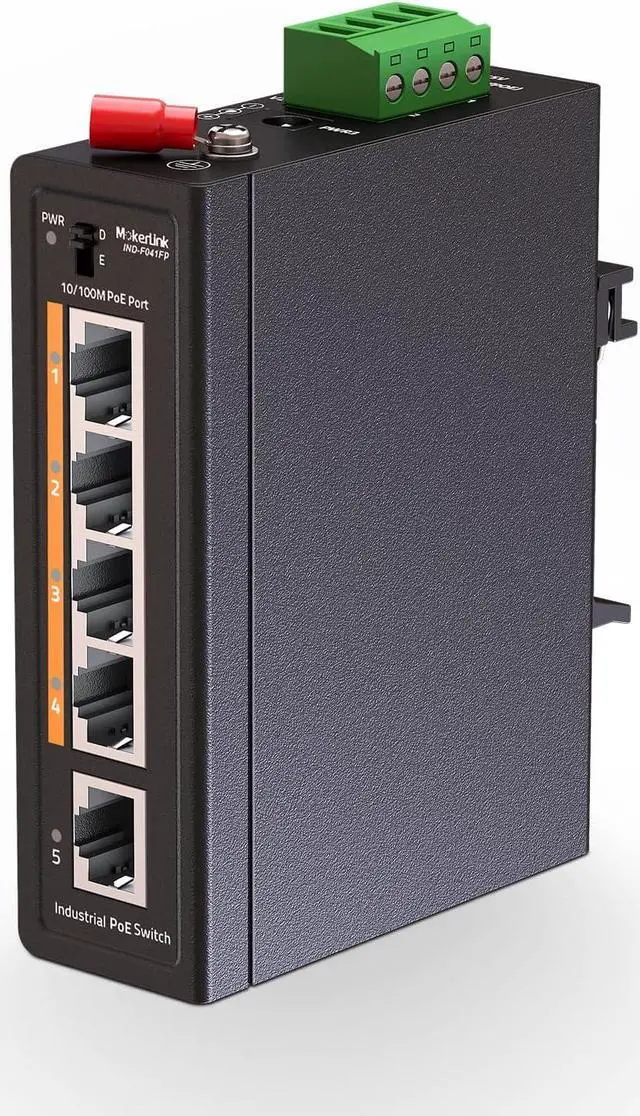

MokerLink 5 port 100Mbps industrial ethernet PoE switch, support 4*10/100M PoE ports and 1* 10/100M ethernet port, support DIN-Rail & Wall mounts installation. support power supply input (DC48-55V)working temperature -40~ +75It has passed the industrial environment certification. The reliable industrial design can ensure that your automation system runs without interruption and stability.
This series of industrial POE switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green low power industrial Ethernet switch.

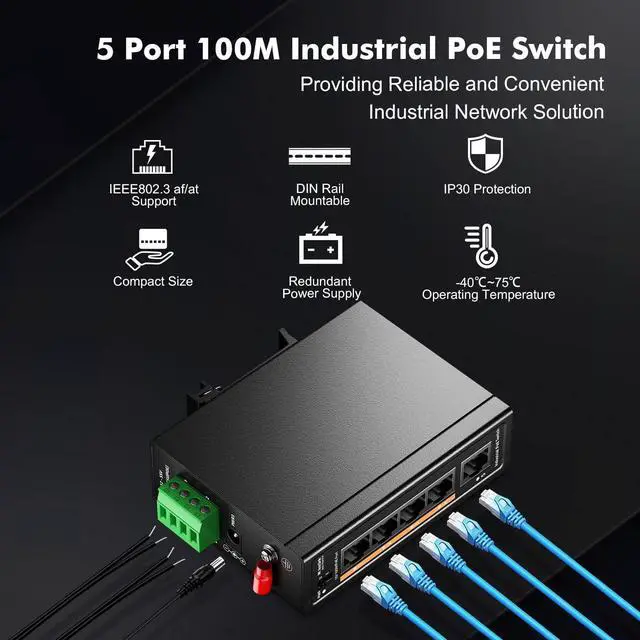

Support 4*10/100M POE ports and 1*10/100M Ethernet portSupport IEEE 802.3, IEEE 802.3u, IEEE802.3x StandardEthernet port supports 10/100M self-adaptationCompatible with both IEEE802.3at30Wand IEEE802.3af15.4wIndustrial grade protect design, -40 to 75°C working temperatureHigh strength iron shell, DIN35 Rail installationSupport redundant power supply, support anti reverse.Support port Surge Protection: Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV

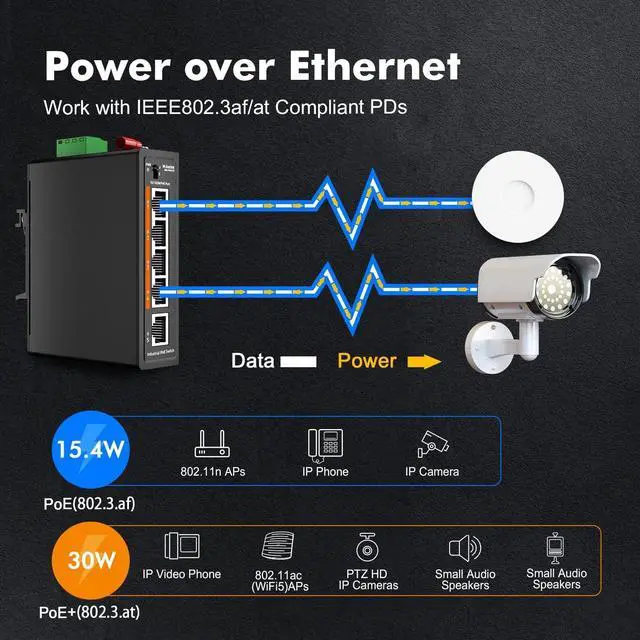

Compatible with IEEE802.3af/at protocol, IndustrialPoE switchdetermines and delivers the exact power supply to your devices with upto 30W power output for per poe port.

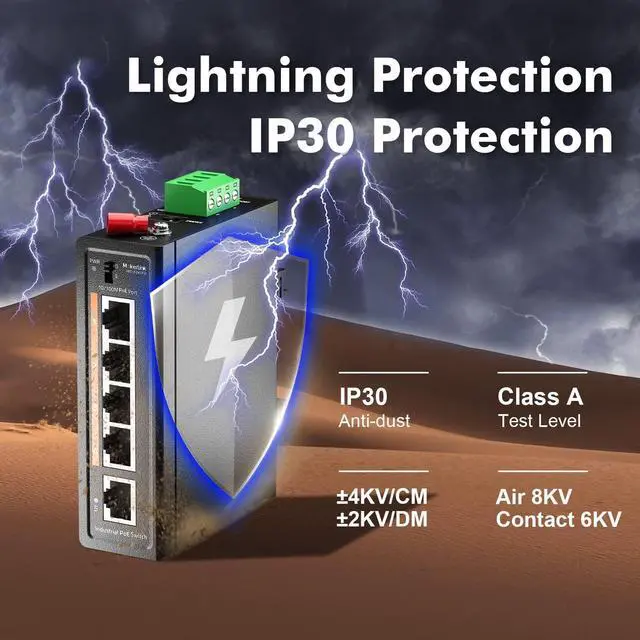

The industrial poe switch's 4KV surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

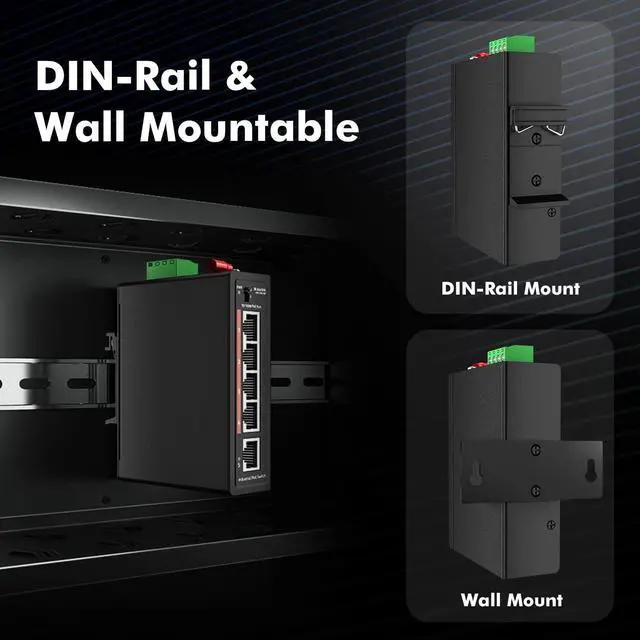

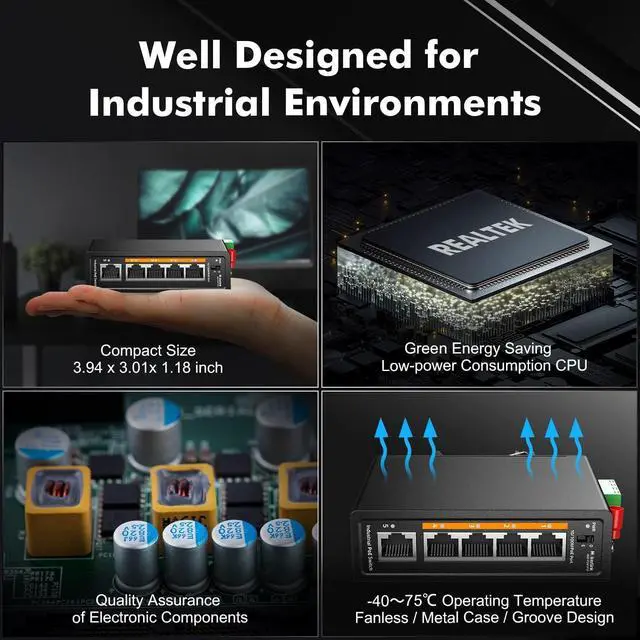

MokerLink industrial poe switches are housed in a compact sturdy metal case. the size is 100*76.5*30mm. you can mount it on the wall or cabinet.
Product Name5-port10/100Mbps industrial PoE switchProduct ModelIND-F041FPEthernet4* 10/100Mbps PoE+ ports + 1* 10/100Mbps RJ45 portBandwidth1.0GbpsPacket Forwarding 0.744 MppsPacket Cache448KPoE ProtocolIEEE802.3af 15.4W IEEE802.3at 30W Network ProtocolIEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control)Industry StandardEMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)Network Medium10Base-T : Cat 3, 4, 5 or above UTP/STP(100m) 100Base-TX : Cat 5 or above UTP/STP(100m)Working EnvironmenWorking Temperature: -40~75°C Storage Temperature: -40~85°C Working Humidity 10%~90%non-condensing Storage Temperature5%~90%non-condensing Working Height: Maximum10,000 feet Storage Height: Maximum 10,000 feetLED IndicatorPWR (Power Indicate)1-5 Green LightLink & Data PWR: On: Power on Off: Power off1-5 Green Light (Link & Data): On:Link Connected Flashing: Data Transmit Off: Link DisconnectProduct Dimension100*76.5*30mmProduct Weight0.29 KGPower VoltageInput Voltage : DC 48-55 V Type of input: 4 PIN Industrial Terminal (block V1+V1- V2+ V2-); DC-IN (2.1mm)Packaging ListIndustrial PoE Switch: 1 PC,User Manual: 1PC, Pull-arm : 1 PC Key Features: Auto Detects Power Devices Lightning Protection Compact Size Product Specifications
