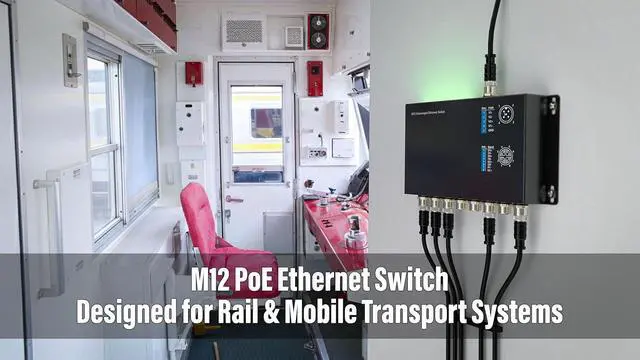

M12 Industrial Ethernet PoE Switch, 8-Port Gigabit M12 X-Coded Unmanaged Network Switch, Dual Power Input V1/V2 1257V DC, IEEE 802.3af/at PoE, Rail & Vehicle Applications

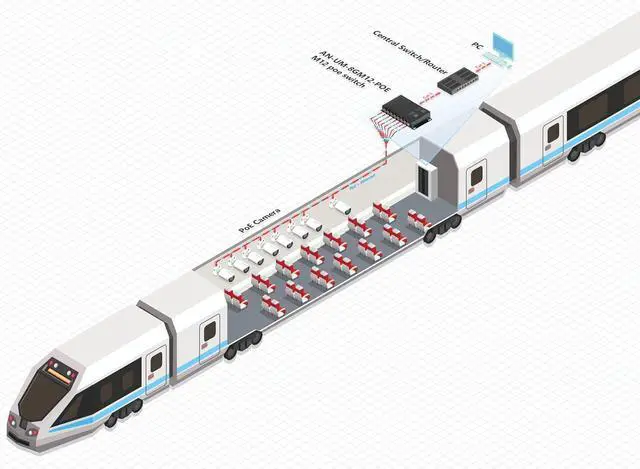

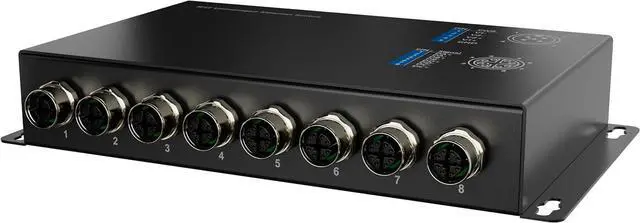

8-Port Industrial Gigabit PoE Switch (M12 X-Coded): Unmanaged industrial Ethernet switch with 8× 10/100/1000 Mbps M12 X-coded ports, supporting IEEE 802.3af/at PoE/PoE+ (up to 30W per port) ideal for PoE IP cameras, vehicle CCTV, PIS systems, and industrial Ethernet networks.
8-Port Industrial Gigabit PoE Switch (M12 X-Coded): Unmanaged industrial Ethernet switch with 8× 10/100/1000 Mbps M12 X-coded ports, supporting IEEE 802.3af/at PoE/PoE+ (up to 30W per port) ideal for PoE IP cameras, vehicle CCTV, PIS systems, and industrial Ethernet networks.

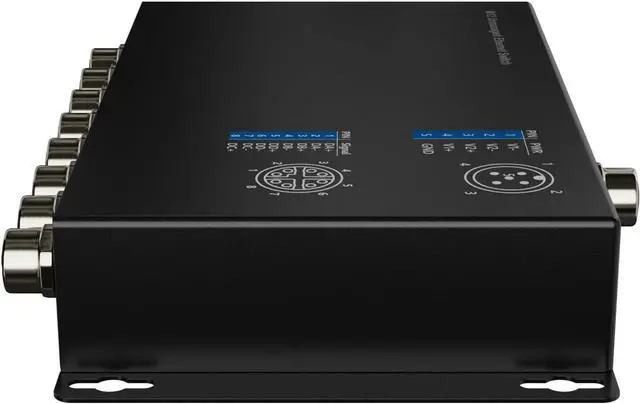

Wide Voltage Dual Power Input with Redundancy: Supports DC 1252V (data only) and DC 4857V for PoE, using M12 A-coded 5-pin power connector. Dual power input design allows backup power source connection for higher system reliability in mission-critical installations.
Industrial-Grade Design, Fanless & Silent: Rugged metal housing (IP40), fanless convection cooling, and -40°C to +75°C operating temperature ensure stable operation in harsh environments with vibration, shock, dust, and electrical noise.

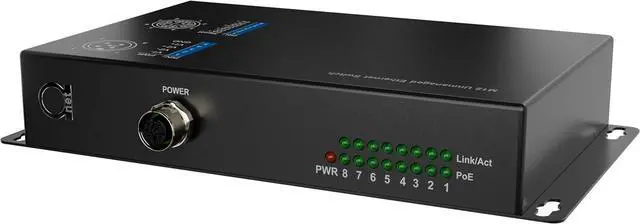

True Plug-and-Play with Clear Status LEDs: Unmanaged design with auto-negotiation, auto MDI/MDI-X, no configuration required. Front LEDs show PWR, Link/ACT, and PoE status per port, making installation, testing, and troubleshooting fast and intuitive.

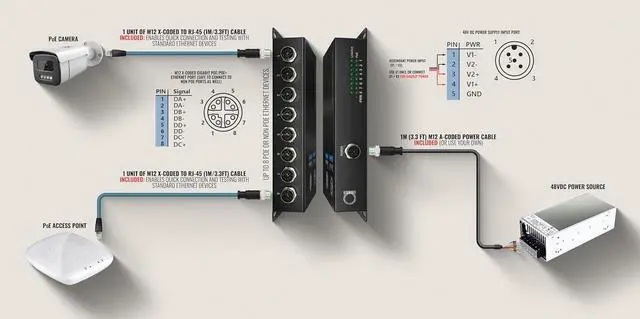

Included in the Package (Ready for Immediate Testing): 1× Industrial 8-Port M12 Gigabit PoE Switch, 1× Pre-connectorized M12 power cable, 1× M12 X-coded to RJ45 cable (1 meter / ~3.3 ft) ideal for quick setup, bench testing, and camera connection Mounting hardware User manual
