M12 + RJ-45 PoE Ethernet Booster LAN Extender | PoE-Powered Master or 48V DC Option | Coax / 2-Wire Uplink up to 500m PoE or 800m Data | DIN-Rail Mount | Star/Daisy-Chain/Point-to-Point
- Extend & Boost Ethernet + PoE Signals: Boost Ethernet and PoE transmission over long distances using existing coax or 2-wire lines up to 500m with power or 800m for data-only.

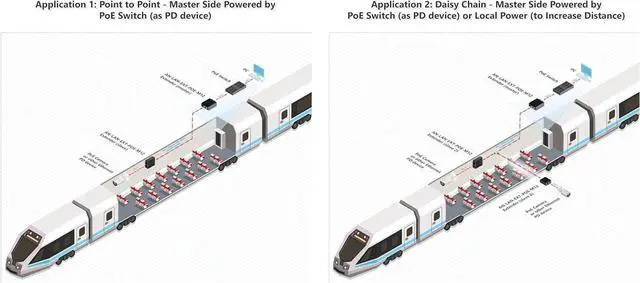

- Multi-Topology Flexibility: Supports point-to-point, star, and daisy-chain configurations for industrial or surveillance networks with multiple remote devices.

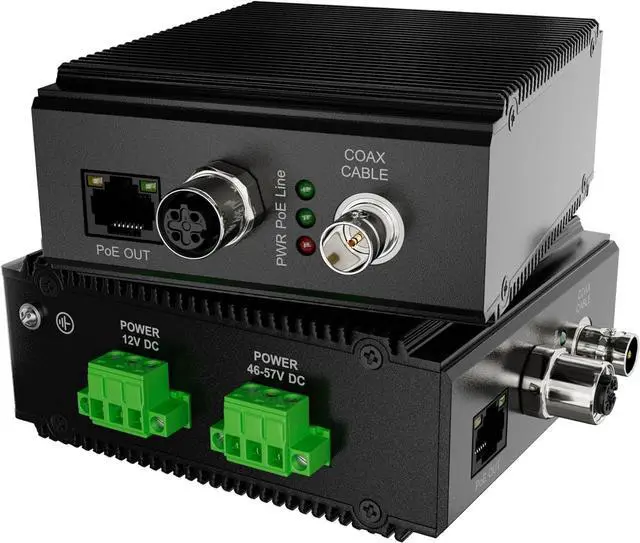

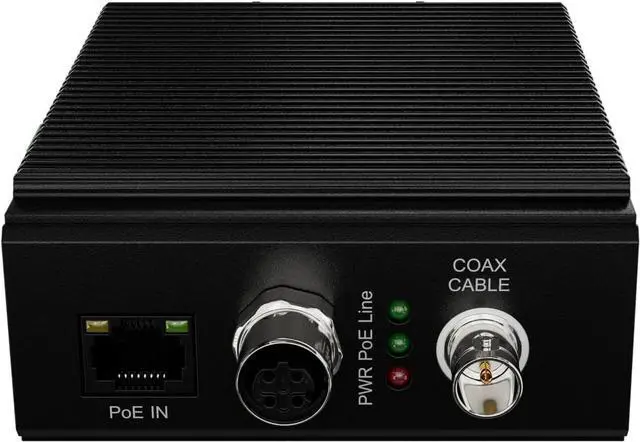

- Dual-Port Design M12 & RJ-45: Each unit offers both industrial M12 and standard RJ-45 interfaces for flexible integration with PoE cameras, routers, PCs, or controllers.
- Power Options for Any Setup: Point-to-Point: Master can be PoE-powered directly - Star / Daisy-Chain: Use the included 48V DC adapter to deliver full PoE power to all Slave devices.

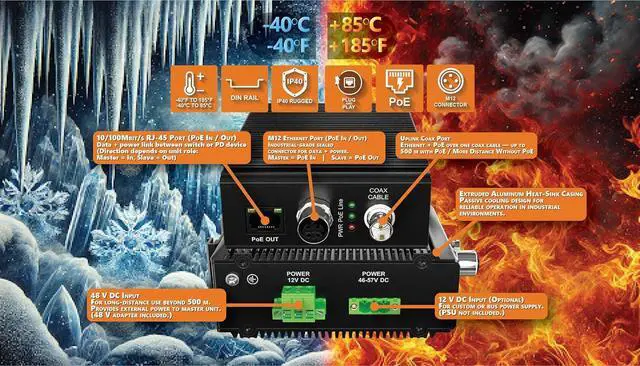

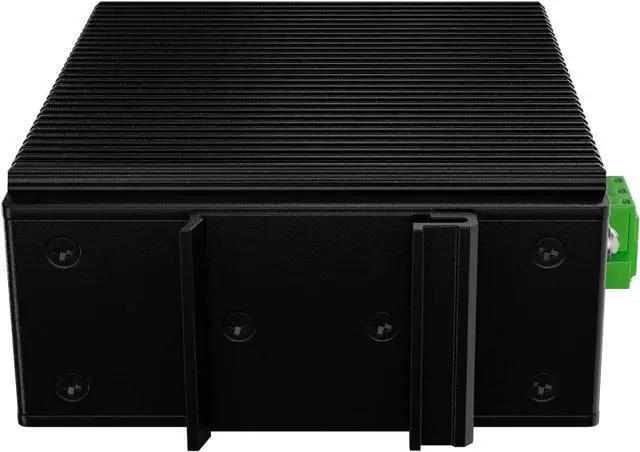

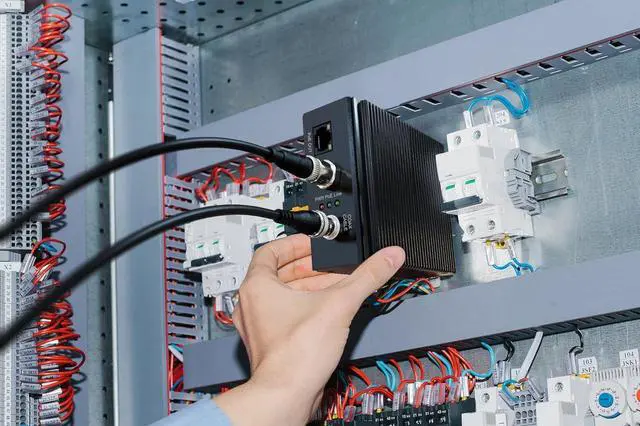

- Industrial Build, Plug & Play: Rugged aluminum housing, -40~+75°C range, DIN-rail or wall mount, LED indicators for Link/Line/PoE. Ships as a ready-to-install Master + Slave pair with 48V power adapter included.
- Works With Both Coax and 2-Wire Copper: Accepts RG-59/6/11 coax or 2-wire twis
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Extend & Boost Ethernet + PoE Signals: Boost Ethernet and PoE transmission over long distances using existing coax or 2-wire lines up to 500m with power or 800m for data-only.
Multi-Topology Flexibility: Supports point-to-point, star, and daisy-chain configurations for industrial or surveillance networks with multiple remote devices.
Dual-Port Design M12 & RJ-45: Each unit offers both industrial M12 and standard RJ-45 interfaces for flexible integration with PoE cameras, routers, PCs, or controllers.
Power Options for Any Setup: Point-to-Point: Master can be PoE-powered directly - Star / Daisy-Chain: Use the included 48V DC adapter to deliver full PoE power to all Slave devices.
Industrial Build, Plug & Play: Rugged aluminum housing, -40~+75°C range, DIN-rail or wall mount, LED indicators for Link/Line/PoE. Ships as a ready-to-install Master + Slave pair with 48V power adapter included.

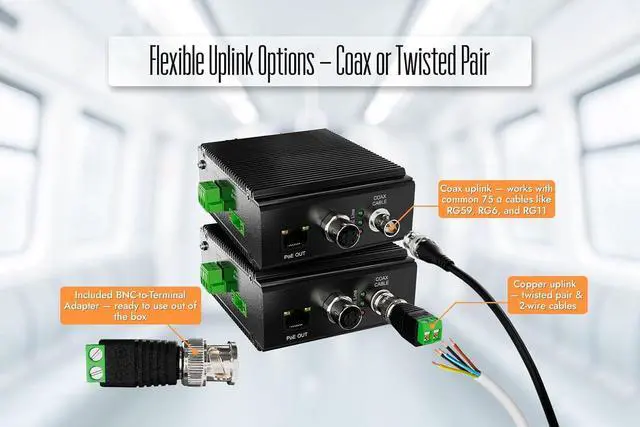

Works With Both Coax and 2-Wire Copper: Accepts RG-59/6/11 coax or 2-wire twisted pair using the included BNC-to-screw-terminal adapter.
Multi-Topology Flexibility: Supports point-to-point, star, and daisy-chain configurations for industrial or surveillance networks with multiple remote devices.
Dual-Port Design M12 & RJ-45: Each unit offers both industrial M12 and standard RJ-45 interfaces for flexible integration with PoE cameras, routers, PCs, or controllers.
Power Options for Any Setup: Point-to-Point: Master can be PoE-powered directly - Star / Daisy-Chain: Use the included 48V DC adapter to deliver full PoE power to all Slave devices.
Industrial Build, Plug & Play: Rugged aluminum housing, -40~+75°C range, DIN-rail or wall mount, LED indicators for Link/Line/PoE. Ships as a ready-to-install Master + Slave pair with 48V power adapter included.
Works With Both Coax and 2-Wire Copper: Accepts RG-59/6/11 coax or 2-wire twisted pair using the included BNC-to-screw-terminal adapter.
