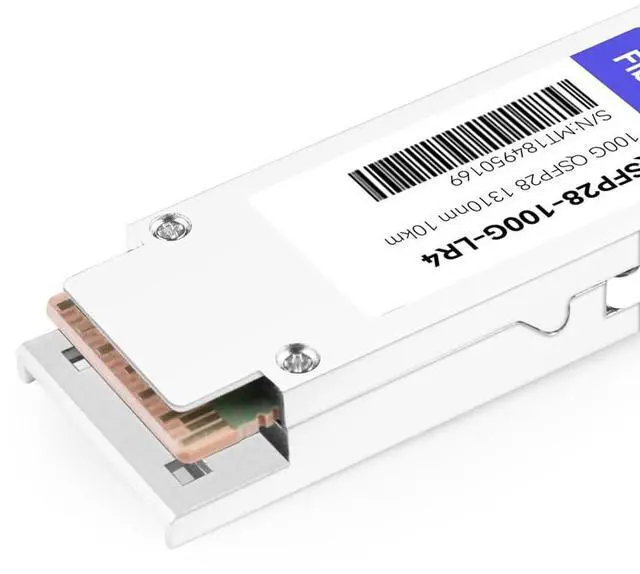

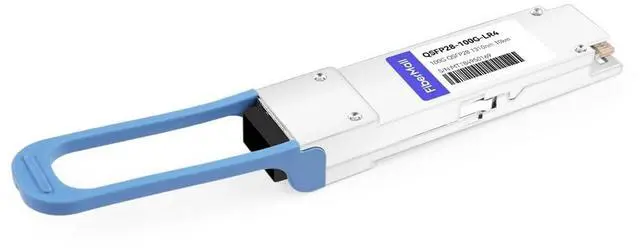

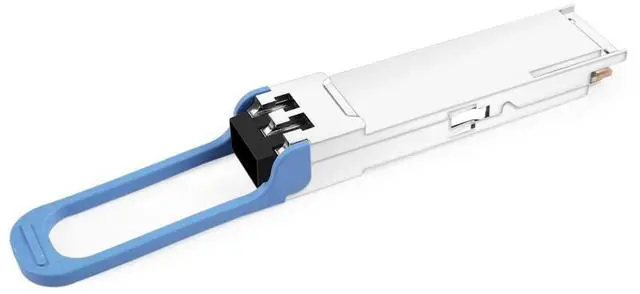

100G QSFP28 LR4 for Juniper Networks JNP-QSFP-100G-LR4, 100GBASE-LR4 QSFP28 Optical Transceiver Module,1310nm 10km LAN WDM LC SMF DOM

100G QSFP28 SR4/LR4/SR BD/PSM4 SWDM4/ER4L/CWDM4/ER4/ZER4
200G Optic Transceivers
200G QSFP56 200G QSFP-DD
400G Optic Transceivers

400G QSFP-DD
100GBASE-LR4 QSFP28 4WDM Optical Transceiver Module (1271nm,1291nm,1311nm,1331nm SMF 10km LC DDM)

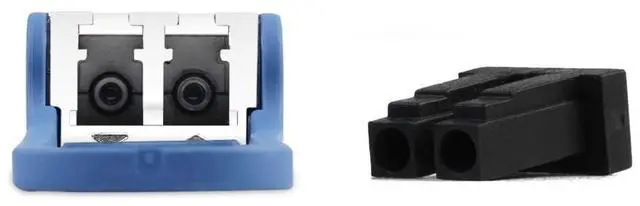

The 100G QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors
The design is compliant with 100GbASE-LR4 of the IEEE802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standardITU-T G.959.1-2012-02 standard.
The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes of optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals and converts them to 4 lanes output electrical data
this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
FiberMall is committed to providing integrated cost-effective optical communication products, one-stop solutions and service support for global data centers, cloud computing, enterprise networks, access networks and wireless networks.
We have 10 Years' experience in the global optical communication industry.
100GQSFP28 Optic Transceivers Ddescription
