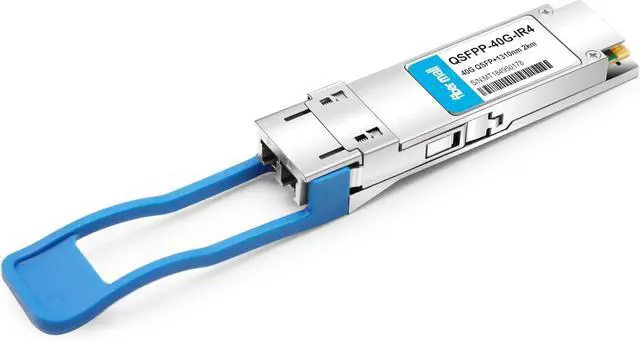

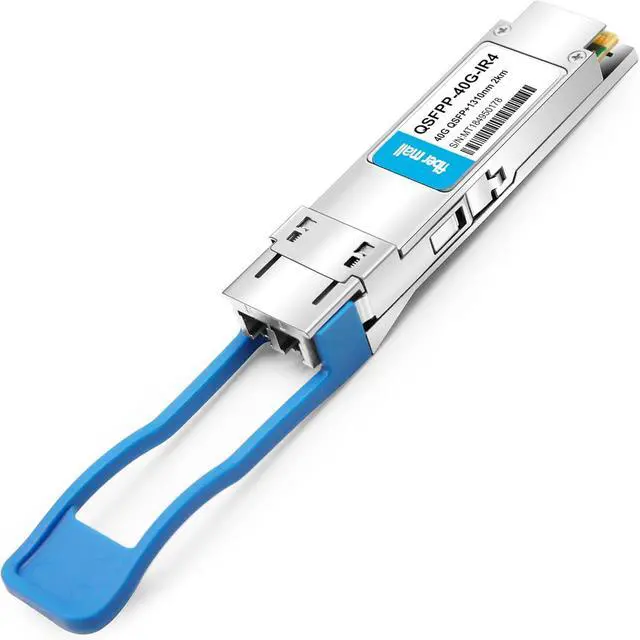

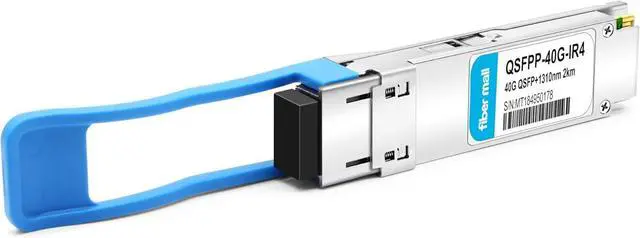

40G QSFP+ LR4L for Cisco WSP-Q40GLR4L, 40GBASE-LR4L QSFP+ 1310nm CWDM4 2km LC SMF DDM Optical Transceiver Module
- 40GBASE-LR4Lcompliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4, standard.Digital diagnostics functions are also available via the I2C interface, 40Gigabit Ethernet, compatible Cisco ecoding as WSP-Q40GLR4L also
- 40G QSFP+LR4L40GBASE-IR4 QSFP+ Optical Transceiver Module supports link lengths of up to 2 kilometers over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. 4 CWDM Lanes DFB (127112911311 and 1331nm It is interoperable with 40GBASE-LR4 for distances up to 2 kilometers. The operating temperature range is from +10 to +60°C, 3.3V power supply

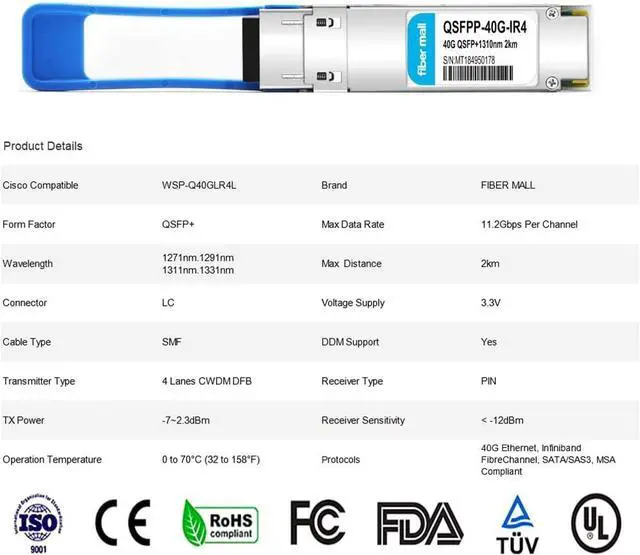

- Standard Parameters40G QSFP+ transceiver module, 40Gbps, single mode 1310nm CWDM4, 2km, LC duplex connector, Hot Pluggable, support DOM
- 3 Warranty30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
- CustomizationFibermall supports regular custom service for your options.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
100G QSFP28 SR4/LR4/SR BD/PSM4 SWDM4/ER4L/CWDM4/ER4/ZER4
200G Optic Transceivers
200G QSFP56 200G QSFP-DD
400G Optic Transceivers
400G QSFP-DD
40GBASE-LR4L QSFP+ Optical Transceiver Module (SMF, 1310nm, 2km, LC, DOM)
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors.
This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 standard.Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA
Compliant with 40GBASE-LR4L and IR4 of the IEEE P802.3ba standard.The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331nm as members of the CWDM wavelength grid defined in ITU-T G694.2.
This easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Fiber Mall is committed to providing integrated cost-effective optical communication products, one-stop solutions and service support for global data centers, cloud computing, enterprise networks, access networks and wireless networks.
We have 10 Years' experience in the global optical communication industry.
100GQSFP28 Optic Transceivers Description
200G Optic Transceivers
200G QSFP56 200G QSFP-DD
400G Optic Transceivers
400G QSFP-DD
40GBASE-LR4L QSFP+ Optical Transceiver Module (SMF, 1310nm, 2km, LC, DOM)
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors.
This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 standard.Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA
Compliant with 40GBASE-LR4L and IR4 of the IEEE P802.3ba standard.The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331nm as members of the CWDM wavelength grid defined in ITU-T G694.2.
This easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Fiber Mall is committed to providing integrated cost-effective optical communication products, one-stop solutions and service support for global data centers, cloud computing, enterprise networks, access networks and wireless networks.
We have 10 Years' experience in the global optical communication industry.
100GQSFP28 Optic Transceivers Description
