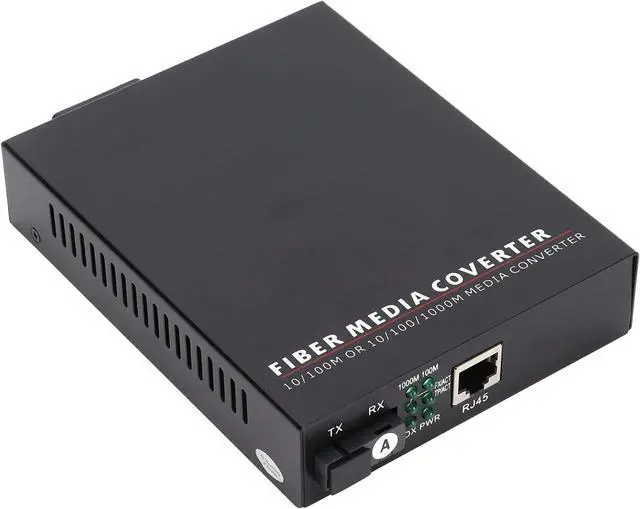

Optical Fiber Router,TBC-MC3612NS20A Optical Fiber Transceiver Gigabit Single Mode Single Fiber 20KM/SC/1310NM Optical Fiber Media Converter(US)
- Data Supports the of VLAN extra-long data packets, which can be matched with switch products that support the IEEE802.1Q protocol.
- Upgrade NetworkSupport LINK LOSS link remote pre-alarm function, automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network.
- Automatic LdentificationThe RJ45 port supports direct or crossed automatic identification function, and the REMOTE PAUSE function ensures the integrity of data packet .
- Auto-Negotiation AbilityHas functions such as broadcast , conflict isolation and error detection, supports fullduplex or halfduplex network communication, and has autonegotiation capabilities.
- Good CharacteristicsMeet the electromagnetic interference standard FCC Part15 Class A, has good optical characteristics, electrical characteristics and temperature stability.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
How to Use:

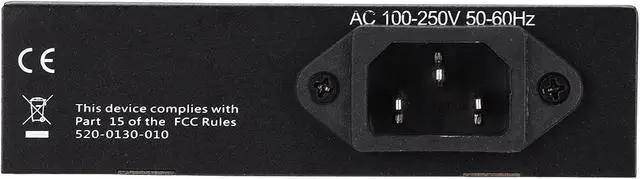

1. Check that the rear panel is the power supply module insert
2. Connect the power cord
3. Open the power switch of the rear panel, you can work normally
Specification:
Item Type: Fiber Optic Router
Material: Aluminum Alloy, Printed Circuit Board
Model: TBC-MC3612NS20A
Standard Agreement: IEEE 802.3, IEEE 802.3u, IEEE 802.3d, IEEE 802.3Q,IEEE 802.3x
Bandwidth: Electrical Port: 10/100/1000M
Optical Port: 1.25G
Working Method: Full-Duplex / Half-Duplex, Full-Duplex / Half-Duplex Automatic Negotiation Function
Interface: Electrical Port: RJ45
Optical Port: For SC/FC/ST

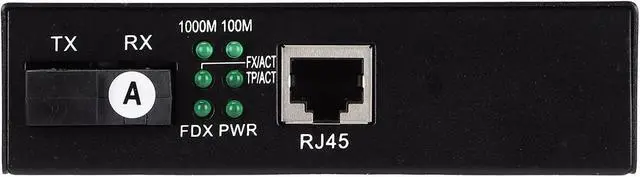

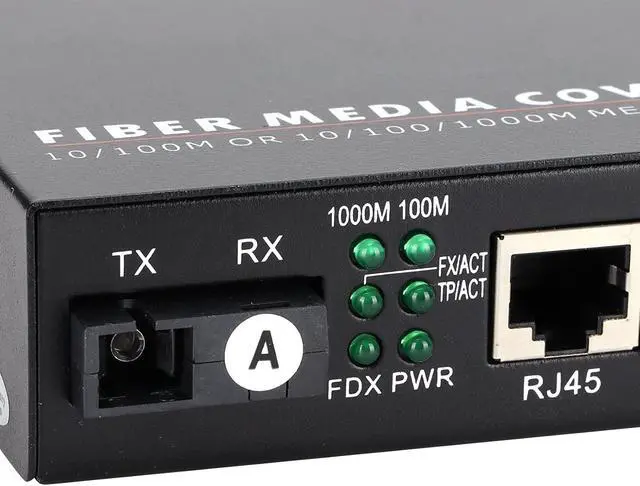

LED Indicator: 1000m, 100M, FX/ACT, TP/ACT, PWR, FDX
UTP Network Cable: Cat5 UTP (within Approx. 100m / 109yd)
Optical Fiber Type: 9/125 (The Farthest up to 20 -100km), 50/125, 62.5/125m (The Farthest up to 2km)
Power: 5W
Package List:
1 x Fiber Optic Router1 x Plug
1 x User Manual
1. Check that the rear panel is the power supply module insert
2. Connect the power cord
3. Open the power switch of the rear panel, you can work normally
Specification:
Item Type: Fiber Optic Router
Material: Aluminum Alloy, Printed Circuit Board
Model: TBC-MC3612NS20A
Standard Agreement: IEEE 802.3, IEEE 802.3u, IEEE 802.3d, IEEE 802.3Q,IEEE 802.3x
Bandwidth: Electrical Port: 10/100/1000M
Optical Port: 1.25G
Working Method: Full-Duplex / Half-Duplex, Full-Duplex / Half-Duplex Automatic Negotiation Function
Interface: Electrical Port: RJ45
Optical Port: For SC/FC/ST
LED Indicator: 1000m, 100M, FX/ACT, TP/ACT, PWR, FDX
UTP Network Cable: Cat5 UTP (within Approx. 100m / 109yd)
Optical Fiber Type: 9/125 (The Farthest up to 20 -100km), 50/125, 62.5/125m (The Farthest up to 2km)
Power: 5W
Package List:
1 x Fiber Optic Router1 x Plug
1 x User Manual
