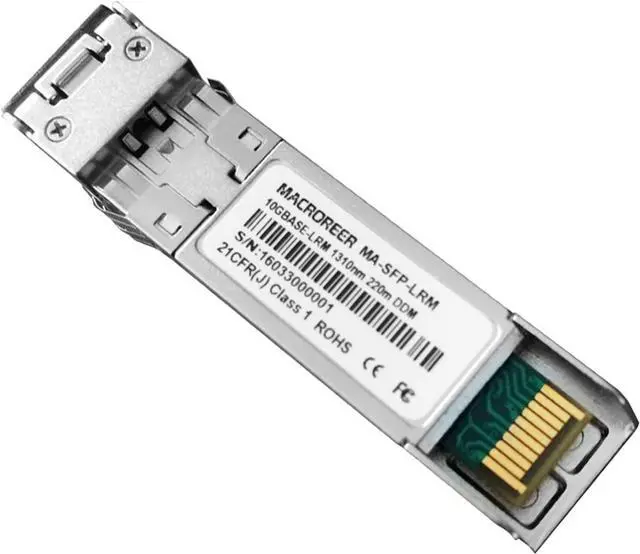

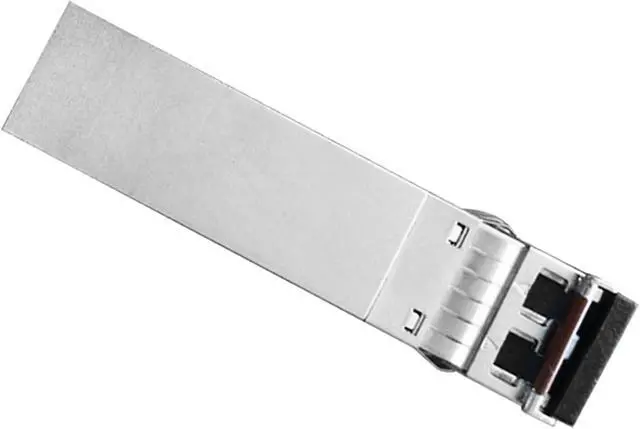

10GBase-LRM SFP+ LC Transceiver 1310nm 220m DDM Compatible with HP J9152A
- Delivers reliable 10 Gigabit Ethernet Connections for 10GBASE-LRM compliant networks
- 100% HP compatible, equivalent to the HP J9152A SFP+
- Meets or exceeds OEM specifications and MSA(Multi-Source Agreement) industry standards
- Multimode with maximum distance of up to 220m(721 ft.) and LC fiber connector
- 1310nm optical wavelength and DDM support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10GBASE-LRM SFP+ Transceiver Module (MMF/SMF, 1310nm, 220m/300m, LC, DDM)
10GBASE-LRM SFP+ Optical Transceiver Module supports up to 220m over OM3 multimode fiber (MMF). This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3aq 10GBASE-LRM. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Legacy FDDI multimode links etc.
Specifications
Form FactorSFP+
Max Data Rate10.3125Gbps
Wavelength1310nm
Max Cable Distance220m @ OM3 MMF, 300m over SMF
ConnectorDuplex LC
Optical ComponentsFP 1310nm
MediaMMF/SMF
DOM/DDM SupportYes
TX Power: -6.5~0.5dBm
Receiver Sensitivity: <-8.4dBm
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Protocols: SFP+ MSA Compliant, CPRI, eCPRI
10GBASE-LRM SFP+ Optical Transceiver Module supports up to 220m over OM3 multimode fiber (MMF). This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3aq 10GBASE-LRM. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Legacy FDDI multimode links etc.
Specifications
Form FactorSFP+
Max Data Rate10.3125Gbps
Wavelength1310nm
Max Cable Distance220m @ OM3 MMF, 300m over SMF
ConnectorDuplex LC
Optical ComponentsFP 1310nm
MediaMMF/SMF
DOM/DDM SupportYes
TX Power: -6.5~0.5dBm
Receiver Sensitivity: <-8.4dBm
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Protocols: SFP+ MSA Compliant, CPRI, eCPRI
