1-30 pcs SFP-10G-LR & Play Singlemode 10G 1310nm 20km LR SFP+ LC ddm Transceiver(1PC)

Fiber Optic Receivers

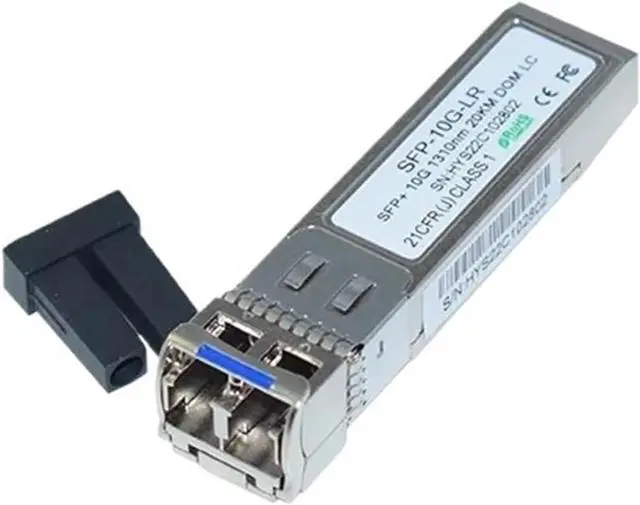

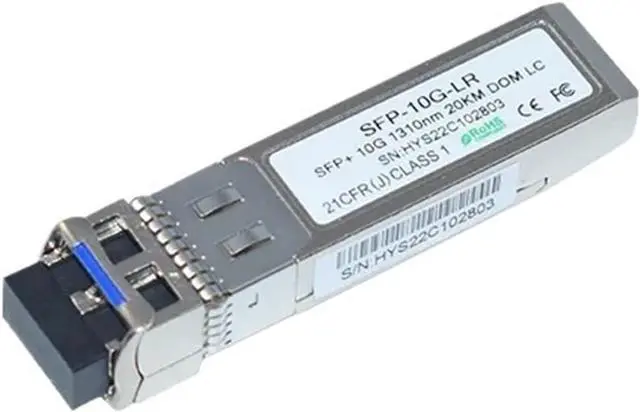

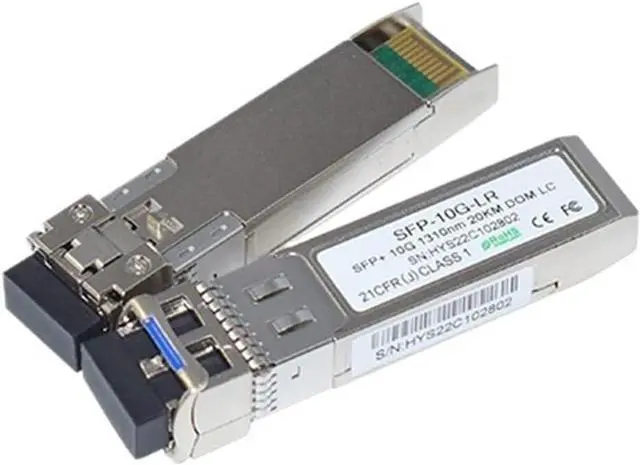

SFP-10G-LR & Play Singlemode 10G 1310nm 20km LR SFP ddm Transceiver

SFP LR is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber.
This transceiver is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR/LW base IEEE 802.3ae and 10G Fibre Channel.

Features:
Data transfer rate: 10.3Gbps
Pluggable SFP
1310nm DFB-LD Transmitter
Distance up to 20km over SMF
Duplex LC Connector
Single 3.3V Power supply and TTL Logic Interface
Compliant with SFF-8431, IEEE 802.3ae
<; 1W
Digital Diagnostic Monitoring Function
Operating Temperature: 0-70 Temp
Applications:
10GBASE-LW/LR
10G Fiber Channel
Other Optical Link

10G SFP+ Transceiver

Part Number
Application
Data Rate
Wavelength
Distance
ConnectorType
HL-SFP-10G-SR
SFP+ 10GBASE-SR
10G
850nm
300m
LC
HL-SFP-10G-LR
SFP+ 10GBASE-LR
10G
1310nm
10km
LC
HL-SFP-10G-LRM
SFP+ 10GBASE-LRM
10G
1310nm
220m
LC
HL-SFP-10G-ER
SFP+ 10GBASE-ER
10G
1550nm
40km
LC
HL-SFP-10G-ZR
SFP+ 10GBASE-ZR
10G
1550nm
80km
