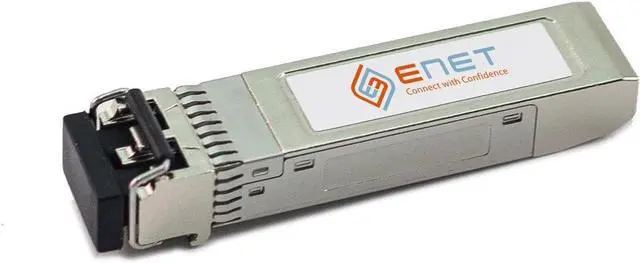

SFP Transceiver Module LC Multi-Mode (GLC-SX-MM-ENC)
- Form Factor: Plug-in module
- Cabling Type: 1000Base-SX
- Data Transfer Rate: 1 Gbps
- GLC-SX-MM-ENC SFP (mini-GBIC) Transceiver Module
- Form Factor: SFP (Small Form Factor Pluggable) MSA & ROHS Compliant
- Connectivity Media: 62.5 µm Multi-mode Fiber 1000Base-SX / 50 µm Multi-mode Fiber 1000Base-SX
- Distance Support: 772 ft 62.5 µm Fiber 160 MHz / 902 ft 62.5 µm Fiber 200 MHz / 1640 ft 50.0 µm Fiber 400 MHz / 1804 ft 50.0 µm Fiber 500 MHz
- Data Transfer rate: 1 Gbps Gigabit Ethernet
- Input Voltage: 3.1 V DCto 3.5 V DC Maximum / 3.3 V DC Typical
- Input Current: 300 mA Maximum / 200 mA Typical
- Temperature: 0°C to 70°C Operating Case Temperature / -40°C to 85° Storage Temperature
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Form Factor: Plug-in module
Cabling Type: 1000Base-SX
Data Transfer Rate: 1 Gbps
GLC-SX-MM-ENC SFP (mini-GBIC) Transceiver Module
Form Factor: SFP (Small Form Factor Pluggable) MSA & ROHS Compliant
Connectivity Media: 62.5 µm Multi-mode Fiber 1000Base-SX / 50 µm Multi-mode Fiber 1000Base-SX
Distance Support: 772 ft 62.5 µm Fiber 160 MHz / 902 ft 62.5 µm Fiber 200 MHz / 1640 ft 50.0 µm Fiber 400 MHz / 1804 ft 50.0 µm Fiber 500 MHz
Data Transfer rate: 1 Gbps Gigabit Ethernet
Input Voltage: 3.1 V DCto 3.5 V DC Maximum / 3.3 V DC Typical
Input Current: 300 mA Maximum / 200 mA Typical
Temperature: 0°C to 70°C Operating Case Temperature / -40°C to 85° Storage Temperature
Cabling Type: 1000Base-SX
Data Transfer Rate: 1 Gbps
GLC-SX-MM-ENC SFP (mini-GBIC) Transceiver Module
Form Factor: SFP (Small Form Factor Pluggable) MSA & ROHS Compliant
Connectivity Media: 62.5 µm Multi-mode Fiber 1000Base-SX / 50 µm Multi-mode Fiber 1000Base-SX
Distance Support: 772 ft 62.5 µm Fiber 160 MHz / 902 ft 62.5 µm Fiber 200 MHz / 1640 ft 50.0 µm Fiber 400 MHz / 1804 ft 50.0 µm Fiber 500 MHz
Data Transfer rate: 1 Gbps Gigabit Ethernet
Input Voltage: 3.1 V DCto 3.5 V DC Maximum / 3.3 V DC Typical
Input Current: 300 mA Maximum / 200 mA Typical
Temperature: 0°C to 70°C Operating Case Temperature / -40°C to 85° Storage Temperature
