- Free 30-day Returns
$45.99
Meet Your Seller

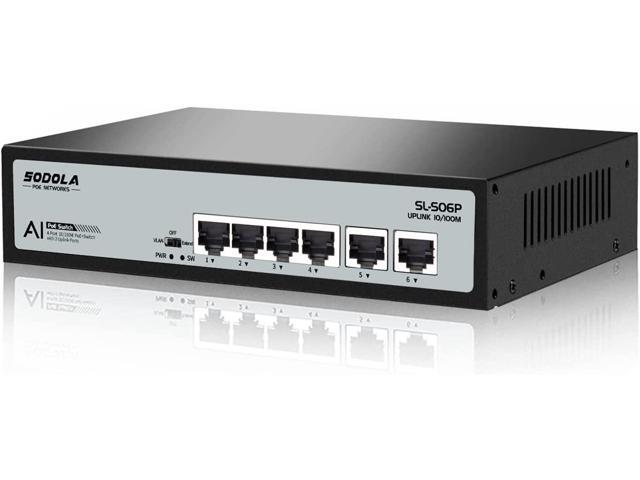

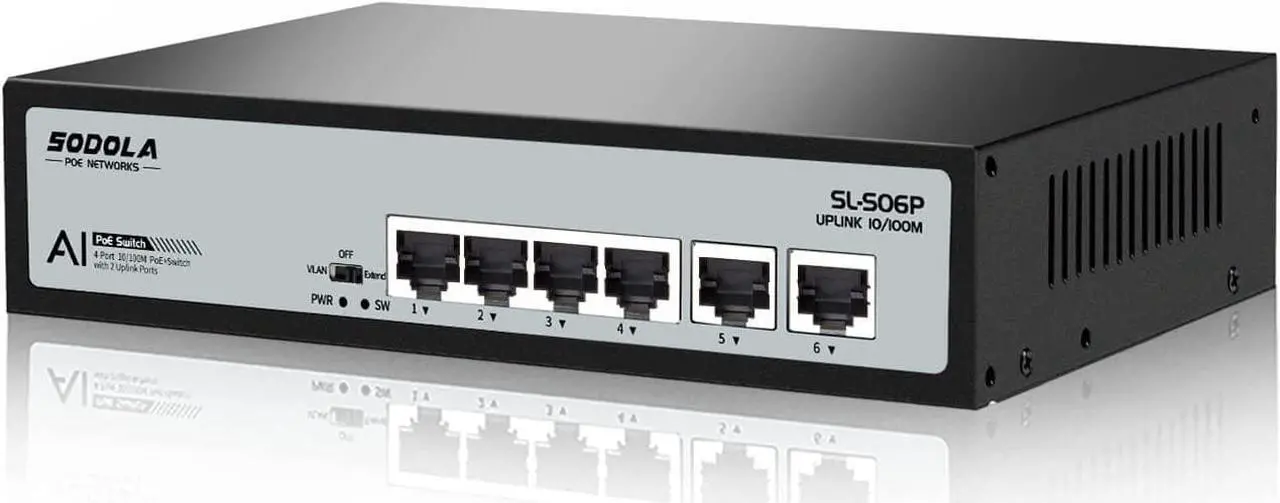

4 Port PoE+ Switch | 4 PoE+ Ports &2 Fast Ethernet uplink,65W 802.3af/at, Extend Function, Fanless Metal,Plug & Play Unmanaged Network Switch
- 6 Port PoE+ Switch4*10/100Mbps PoE+ Ports(802.3at/af)&2*10/100Mbps uplink, power budget up to 30W per PoE port and 65W for the whole.
- Plug and PlaySodola 6 Port Unmanaged Network Switch Support automatically detect devices,easy to setup with no software installation or configuration required.

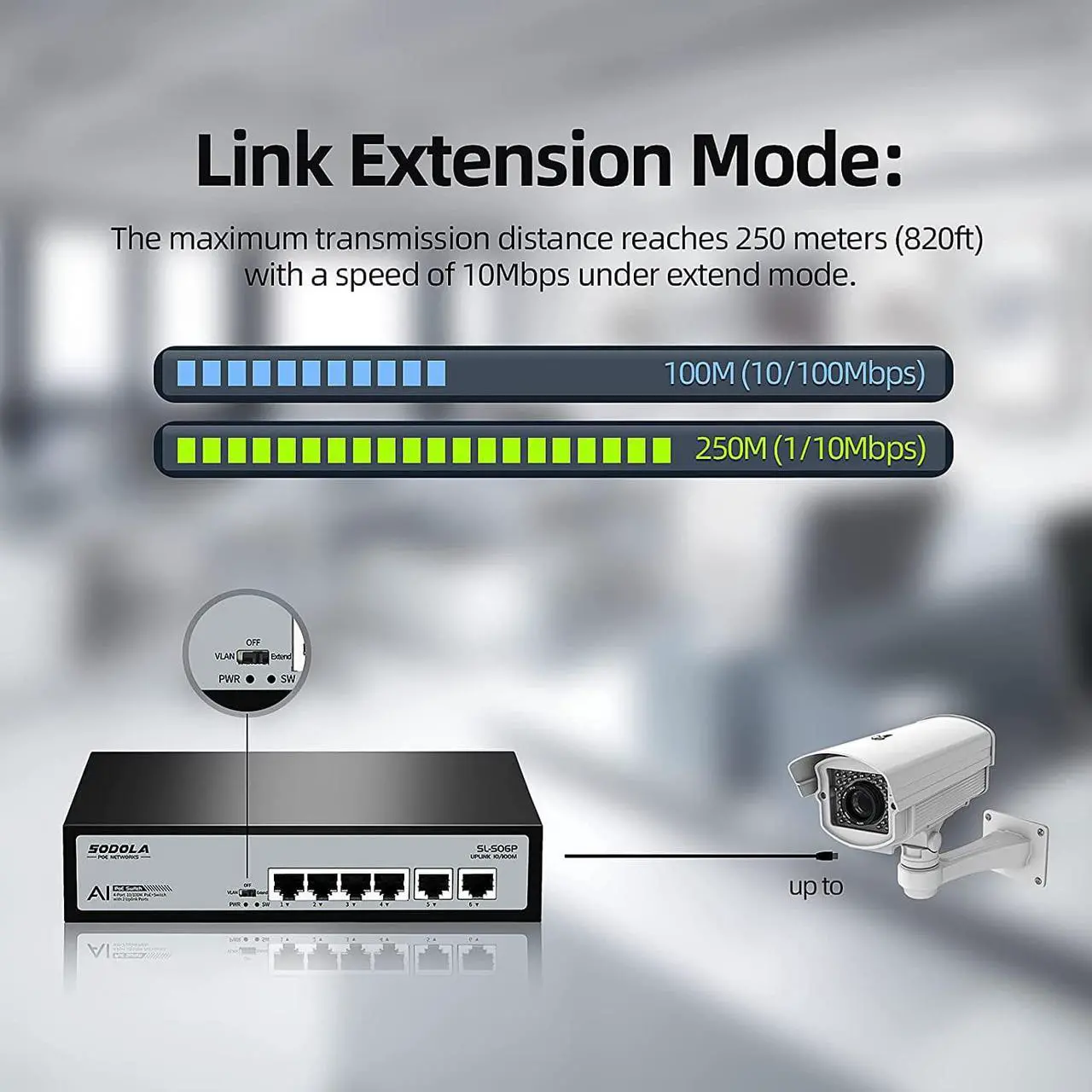

- Extend ModeWhen Extend Mode is enabled, the transmission distance of POE ports can be extended to 250m at transaction rate of 10M.

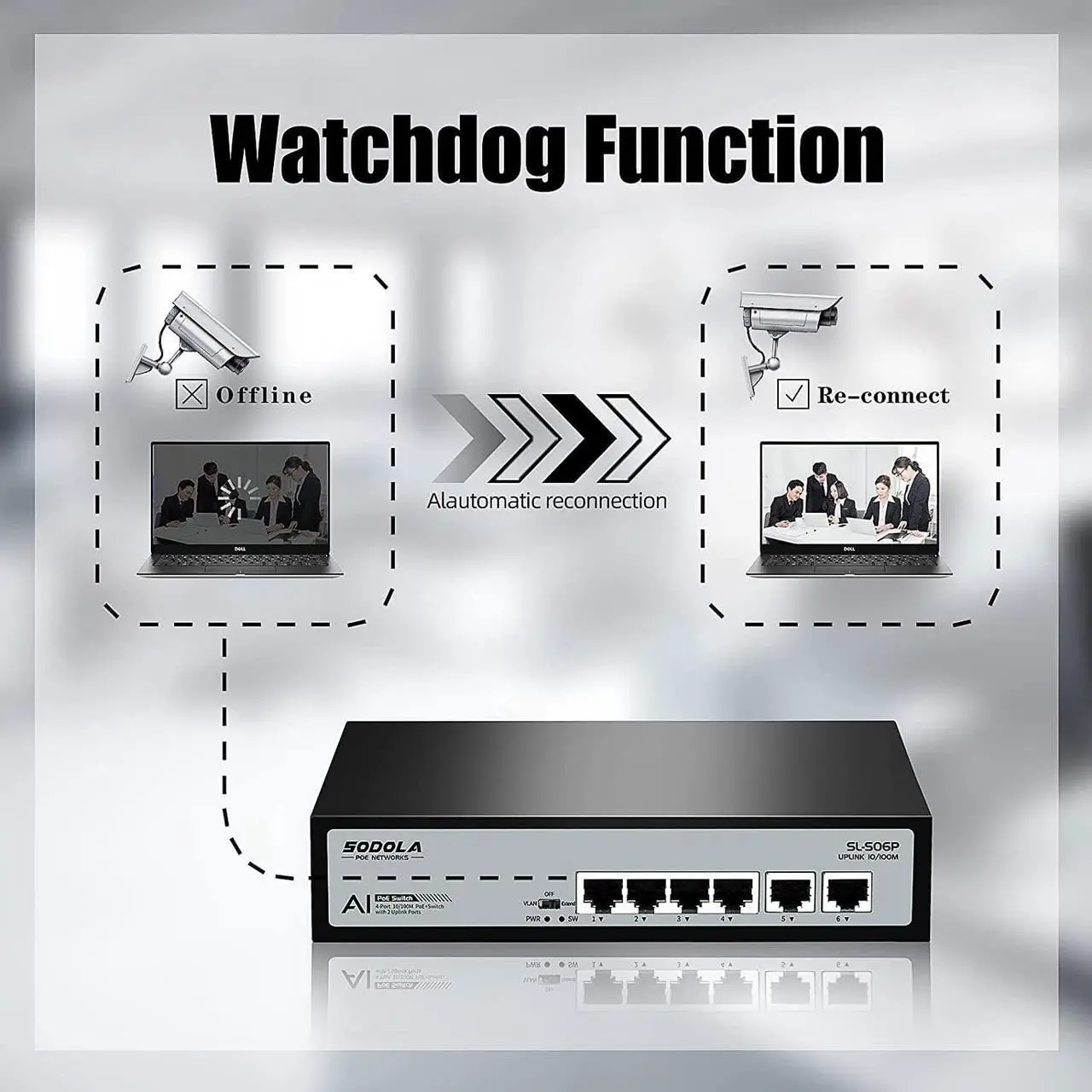

- PoE Switch Safety ConcernPassed CE/FCC/RoHS certification, SL-S06P reaches 4KV/8KV Lightning Protection level to guarantee safety. One-Key VLAN function makes Port 1-4 be isolated to reduce the network congestion effectively. AI Watchdog intelligent detection automatically reboot the disconnected and unresponsive PoE-powered devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PRODUCT PARAMETERS for SODOLA 6 PORTS PoE SWITCH
Power Input: AC 100-240V, 50/60Hz

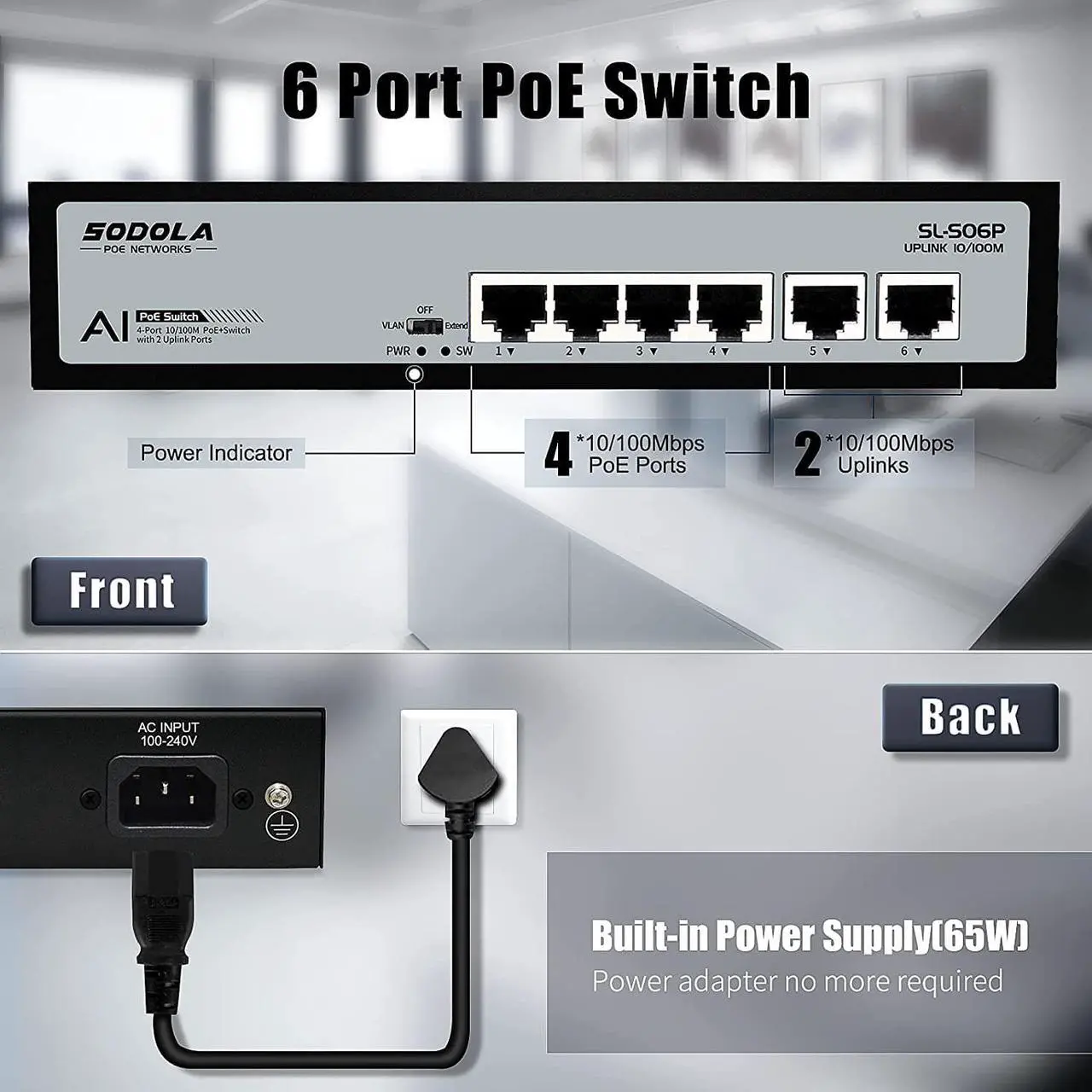

Ethernet: 4 Port 10/100M PoE+2 Port 100M Ethernet Uplink
Switching Capacity: 1.2G bps Throughput: 0.8928M pps
Packet Buffer: 448K MAC Address: 1K
Jumbo Frame: 2Kbytes Transfer Mode: Store and forward
Network protocol: IEE 802.3 (10Base-T); IEE 802.3 u(100Base-TX); IEEE 802.3 x (Flow control)
PoE Protocol: IEEE 802.3 af( 15.4W ); IEE 802.3 at (30W)
Industry Standard:
EMI: FCC Part 15 CISPR (ENS55032) class A;
EMS: EN61000-4-2 (ESD); EN61000-4-4 (EFT); EN61000-4-5 (Surge)
Network Medium:
10Base-T: Cat345 or above
UTP (100m); 100Base-TX: Cat5 or above UTP (100m);
Working Environment: Working
Temperature: -20~50°C;
Storage Temperature: -40~85°C;
Working Humidity: 10%~90%, non-condensing;
Storage Temperature: 5%~90%, non-condensing;
Working Height: Maximum10, 000 feet;
Storage Height: Maximum 10, 000 feet
LED Indicators: PWR (power supply); SW (DIP); 1-27 Green(Link&Data)
VLAN: Port isolation mode. In this mode, the PoE ports(1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/ 100M adaptive
Extend Link extension mode, 14 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Power Voltage: Input
Voltage: AC 100-240V; Power Supply: 52V 1.25A
Package List: Switch *1; Power cord*1; User manual*1;
Power Input: AC 100-240V, 50/60Hz
Ethernet: 4 Port 10/100M PoE+2 Port 100M Ethernet Uplink
Switching Capacity: 1.2G bps Throughput: 0.8928M pps
Packet Buffer: 448K MAC Address: 1K
Jumbo Frame: 2Kbytes Transfer Mode: Store and forward
Network protocol: IEE 802.3 (10Base-T); IEE 802.3 u(100Base-TX); IEEE 802.3 x (Flow control)
PoE Protocol: IEEE 802.3 af( 15.4W ); IEE 802.3 at (30W)
Industry Standard:
EMI: FCC Part 15 CISPR (ENS55032) class A;
EMS: EN61000-4-2 (ESD); EN61000-4-4 (EFT); EN61000-4-5 (Surge)
Network Medium:
10Base-T: Cat345 or above
UTP (100m); 100Base-TX: Cat5 or above UTP (100m);
Working Environment: Working
Temperature: -20~50°C;
Storage Temperature: -40~85°C;
Working Humidity: 10%~90%, non-condensing;
Storage Temperature: 5%~90%, non-condensing;
Working Height: Maximum10, 000 feet;
Storage Height: Maximum 10, 000 feet
LED Indicators: PWR (power supply); SW (DIP); 1-27 Green(Link&Data)
VLAN: Port isolation mode. In this mode, the PoE ports(1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/ 100M adaptive
Extend Link extension mode, 14 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Power Voltage: Input
Voltage: AC 100-240V; Power Supply: 52V 1.25A
Package List: Switch *1; Power cord*1; User manual*1;
